1099973

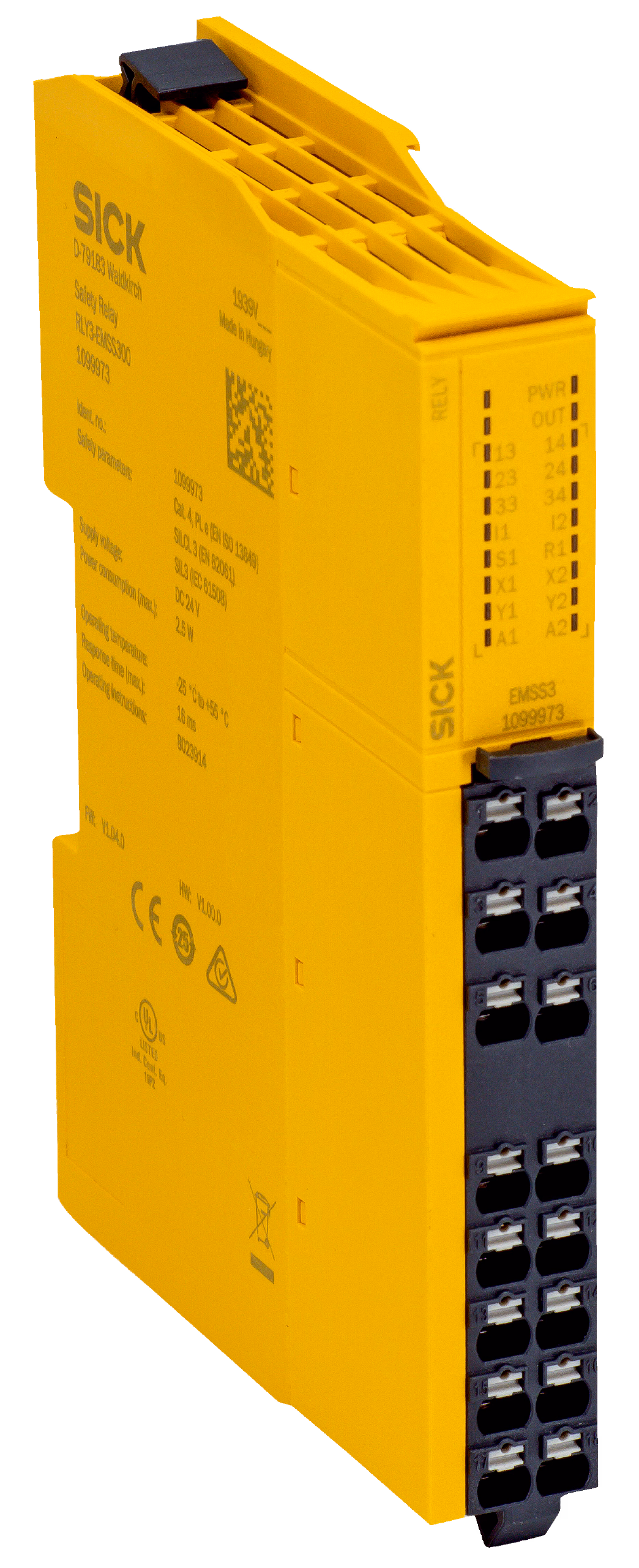

SICK 1099973 / RLY3-EMSS300 is a safety relay in the ReLy family. Applications: Evaluation unit; Compatible sensor types: Safety sensors with potential-free outputs; Connection type: Front connector with spring terminals; Restart interlock: yes; External device monitoring (EDM): Integrated; Outputs: 3 enabling current paths (safe), 2 application diagnostic outputs (not safe), 3 test pulse outputs (not safe); Housing width: 18 mm.

Manufacturer

Sick

Part number

1099973

Product family

ReLy

Category

Safety relays

Technical details

Supply voltage VS: 24 V DC (16.8 V... 30 V); Dimensions (W x H x D): 18 mm x 124.6 mm x 85.5 mm; Connection type: Front connector with spring terminals; Enclosure rating: IP20 (IEC 60529); Ambient operating temperature: –25 °C... +55 °C; Weight: 150 g; Applications: Evaluation unit; Compatible sensor types: Safety sensors with potential-free outputs; Safety integrity level: SIL 3 (IEC 61508); Category: Category 4 (ISO 13849-1); Performance level: PL e (ISO 13849-1); PFHD (mean probability of a dangerous failure per hour): 1.0 x 10; TM (mission time): 20 years (ISO 13849-1); Stop category: 0 (IEC 60204-1)

Weight

0.15 kg

Dimensions

18 x 124.6 x 85.5

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
