1099971

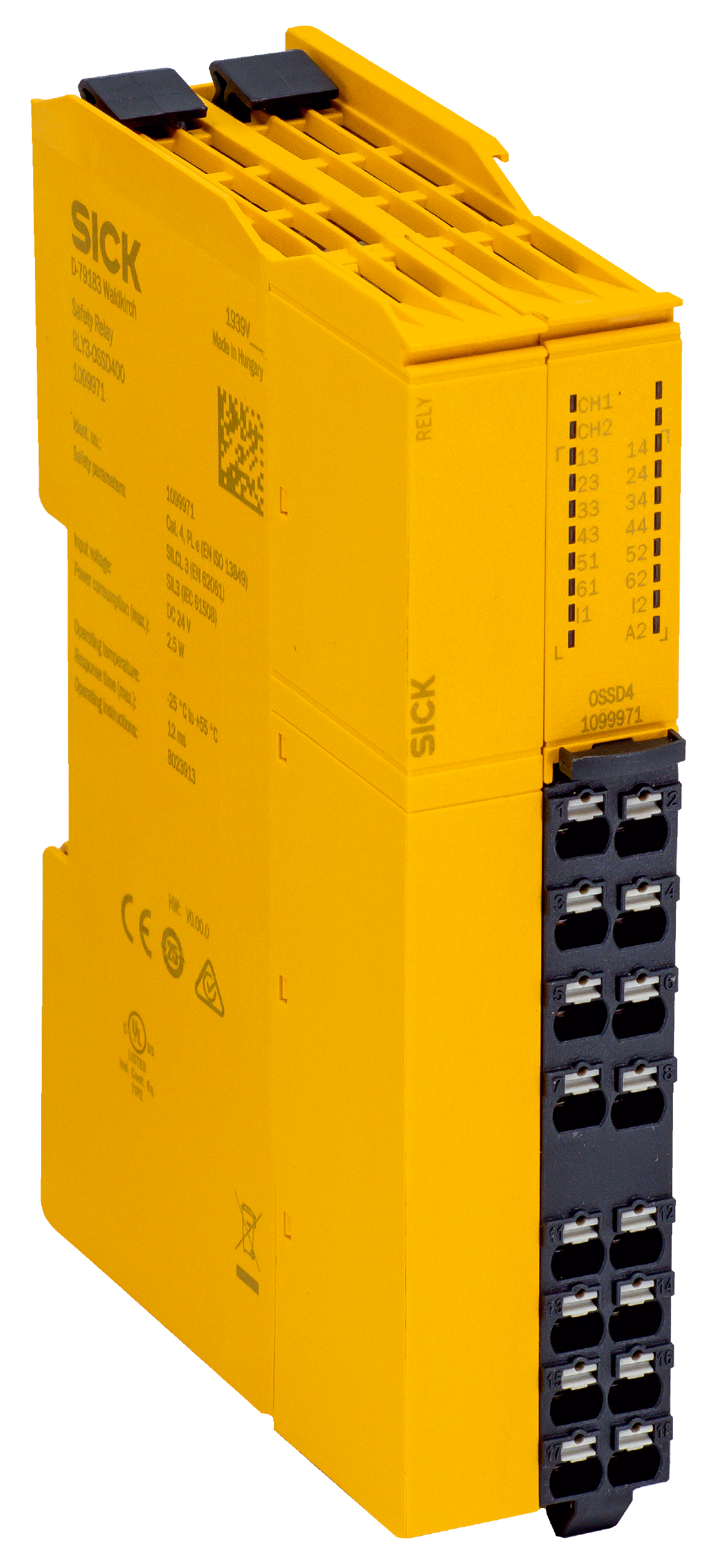

SICK 1099971 / RLY3-OSSD400 is a safety relay in the ReLy family. Safety controllers; Applications: Output expansion module for OSSDs; Compatible sensor types: Safety sensors with OSSDs; Connection type: Front connector with spring terminals; Restart interlock: no; External device monitoring (EDM): Via path; Outputs: 4 enabling current paths (safe), 1 feedback current path (for use as external device monitoring, not safe), 1 signaling current path (not safe); Housing width: 28 mm.

Manufacturer

Sick

Part number

1099971

Product family

ReLy

Category

Safety relays

Technical details

Dimensions (W x H x D): 28 mm x 124.6 mm x 85.5 mm; Connection type: Front connector with spring terminals; Enclosure rating: IP20 (IEC 60529); Ambient operating temperature: –25 °C... +55 °C; Weight: 180 g; Applications: Output expansion module for OSSDs; Compatible sensor types: Safety sensors with OSSDs; Safety integrity level: SIL 3 (IEC 61508); Category: Category 4 (ISO 13849-1); Performance level: PL e (ISO 13849-1); PFHD (mean probability of a dangerous failure per hour): 1.0 x 10; TM (mission time): 20 years (ISO 13849-1); Stop category: 0 (IEC 60204-1); Path for external device monitoring (EDM): ✔

Weight

0.18 kg

Dimensions

28 x 124.6 x 85.5
