1094472

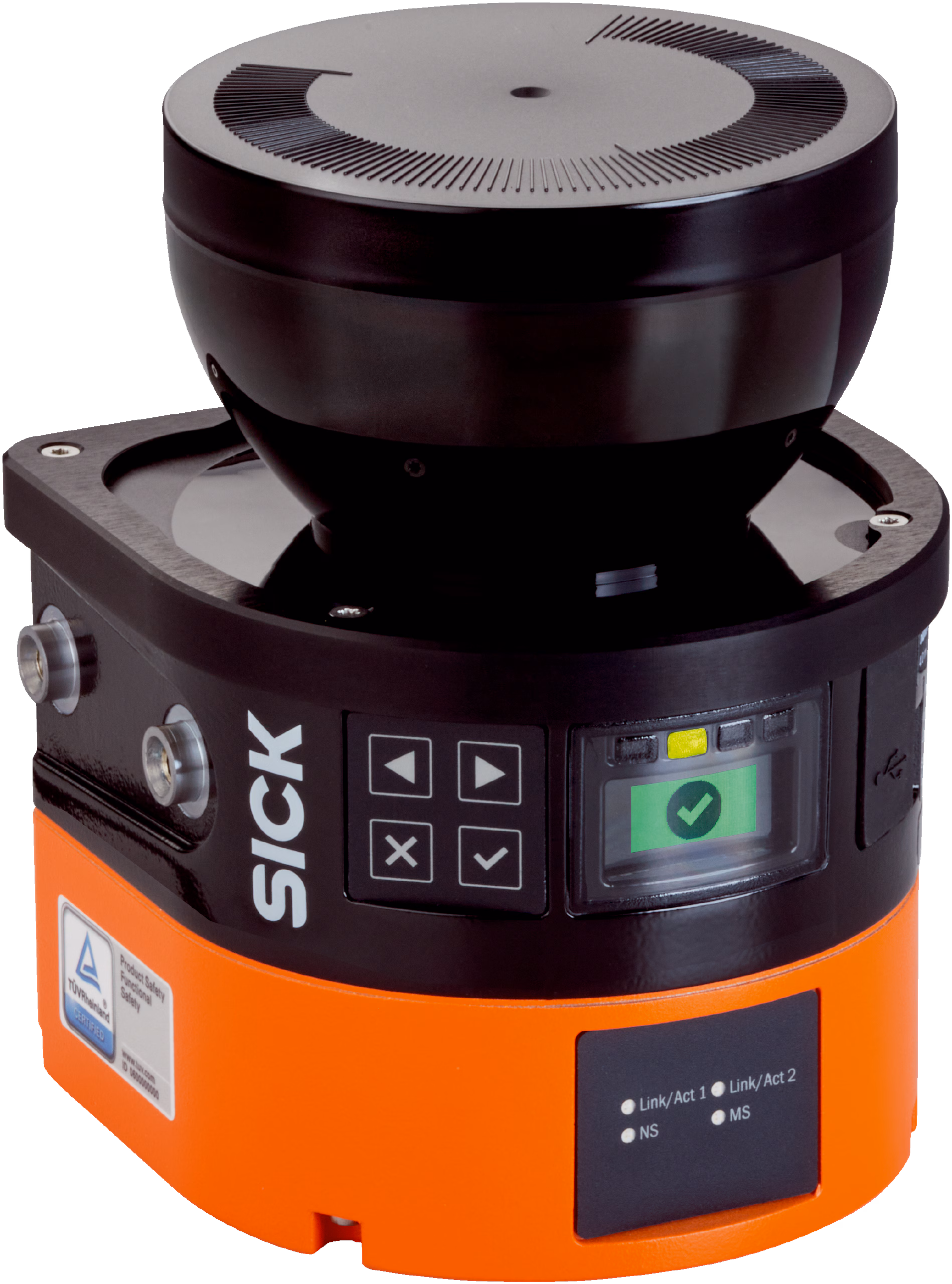

SICK 1094472 / MICS3-CBUZ40IZ1P01 is a safety laser scanner in the outdoorScan3 family. Product version: outdoorScan3 Pro - EtherNet/IP; Model: Sensor (1094471) including system plug (2102812), pre-mounted on the underside; Integration in the control system: CIP Safety™ over EtherNet/IP™; Protective field range: 4 m; Scanning angle: 275°; Number of fields: 128; Connection type: M12.

Manufacturer

Sick

Part number

1094472

Product family

outdoorScan3

Category

Safety laser scanners

Technical details

Type of light: Pulsed laser diode; Resolution (can be configured): 50 mm; 70 mm; Angular resolution: 0.39°; Supply voltage Vs: 24 V DC (16.8 V DC... 30 V DC); Configuration and diagnostics interface: USB 2.0, Mini-USB, Ethernet; Response time: 115 ms; Dimensions (W x H x D): 114.6 mm x 150.7 mm x 114.6 mm (without system plug); Connection type: Voltage supply 1 x male connector, M12, 4-pin, A-coded; Enclosure rating: IP65 (IEC 60529); Housing material: Aluminum; Ambient operating temperature: –25 °C... +50 °C; Weight: 1.45 kg; Product version: outdoorScan3 Pro - EtherNet/IP; Model: Sensor (1094471) including system plug (2102812), pre-mounted on the underside

Weight

1.45 kg

Dimensions

114.6 x 150.7 x 114.6 (without system plug)

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
