1094452

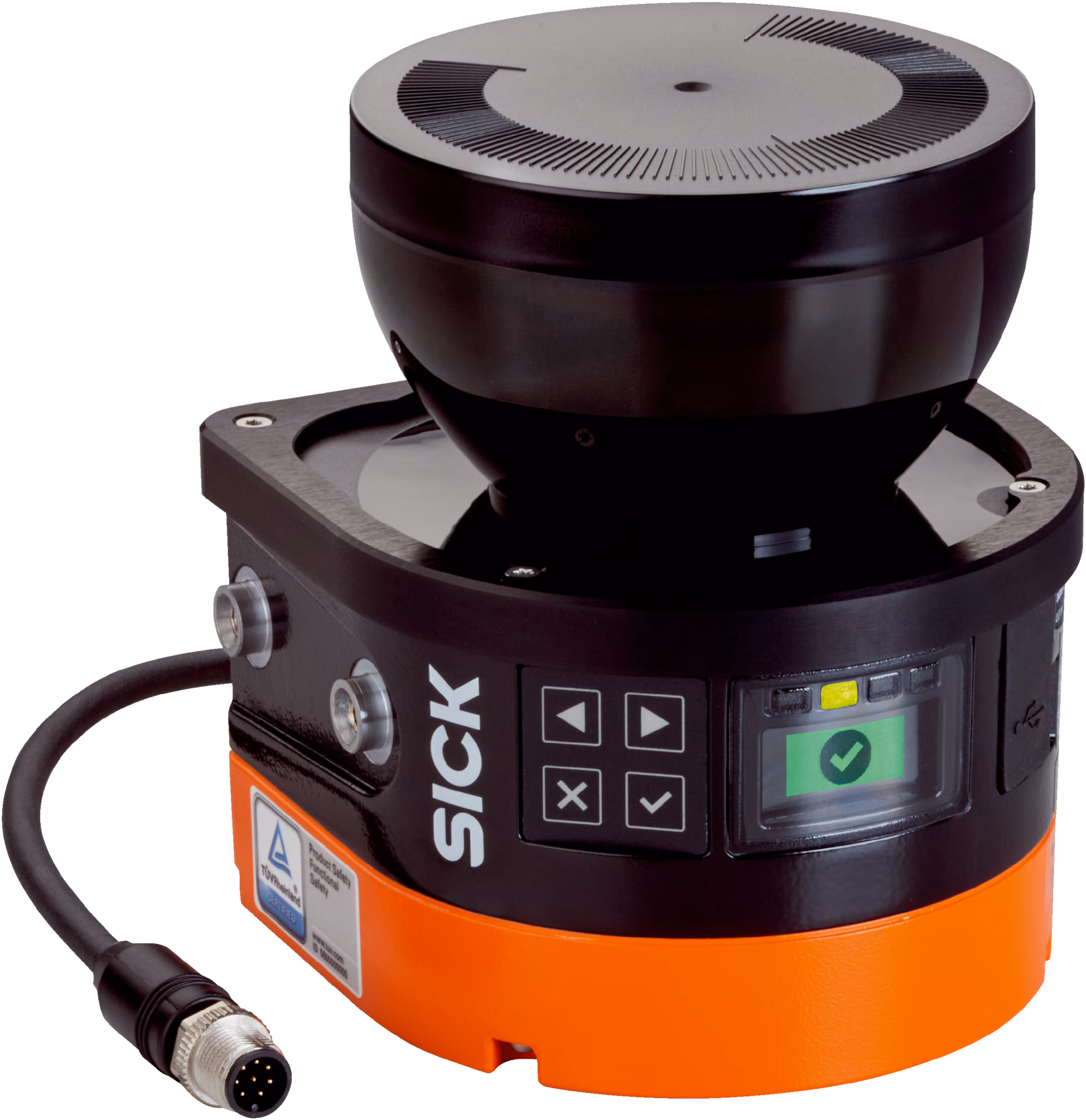

SICK 1094452 / MICS3-AAUZ40AZ1P01 is a safety laser scanner in the outdoorScan3 family. Product version: outdoorScan3 Core I/O; Model: Sensor (1094451) including system plug (2101638); Integration in the control system: Local inputs and outputs (I/O); Protective field range: 4 m; Scanning angle: 275°; Number of fields: 8; Connection type: M12.

Manufacturer

Sick

Part number

1094452

Product family

outdoorScan3

Category

Safety laser scanners

Technical details

Type of light: Pulsed laser diode; Resolution (can be configured): 50 mm; 70 mm; Angular resolution: 0.39°; Supply voltage Vs: 24 V DC (16.8 V DC... 30 V DC); Configuration and diagnostics interface: USB 2.0, Mini-USB; Response time: 90 ms; Dimensions (W x H x D): 114.6 mm x 135.1 mm x 114.6 mm; Connection type: Male connector, M12, 8 pin, A-coded (common male connector for power supply and inputs and outputs); Enclosure rating: IP65 (IEC 60529); Housing material: Aluminum; Ambient operating temperature: –25 °C... +50 °C; Weight: 1.15 kg; Product version: outdoorScan3 Core I/O; Model: Sensor (1094451) including system plug (2101638)

Weight

1.15 kg

Dimensions

114.6 x 135.1 x 114.6
