1087463

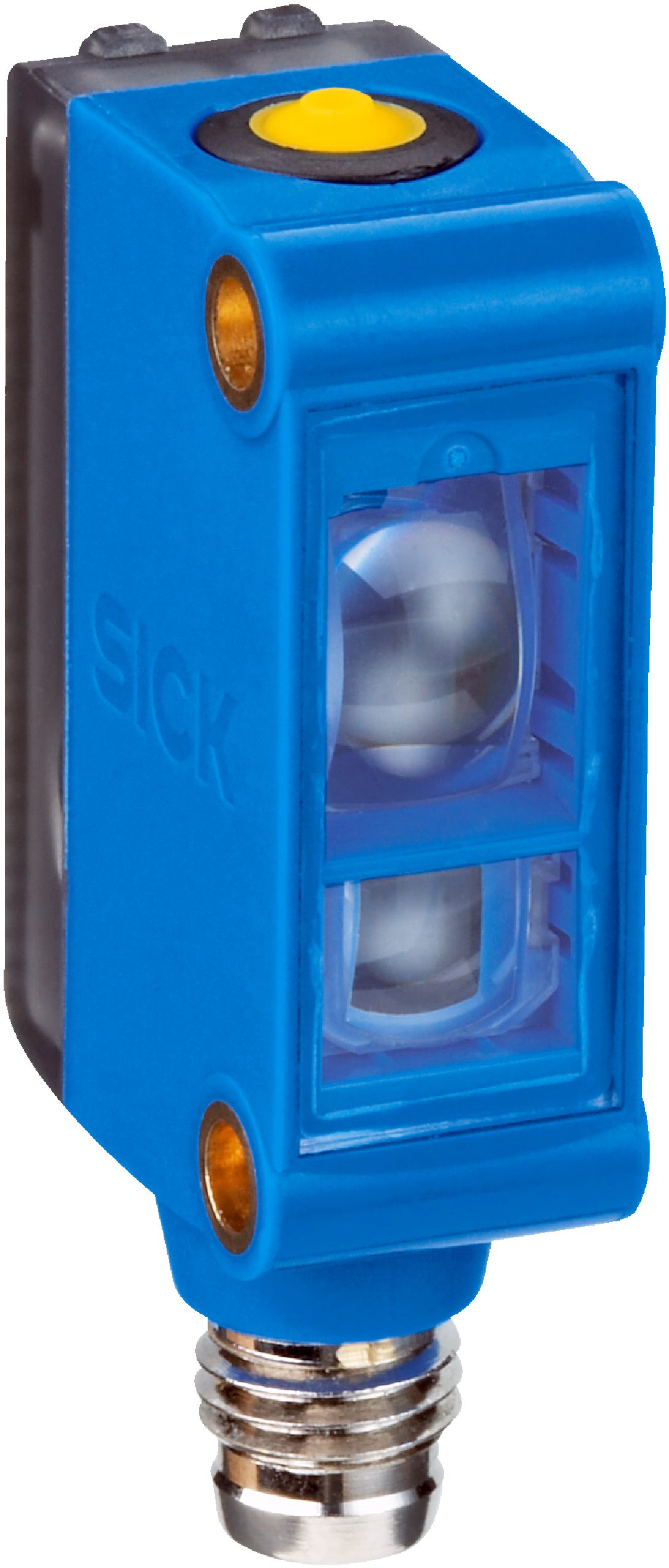

SICK 1087463 / LUTM-UP817A1P is a luminescence sensor in the LUTM family. Light source: LED; Communication interface: IO-Link; Sensing distance: 12.5 mm; Switching output: PNP; Switching mode: Light/dark switching; Light spot size: 2 mm x 2.5 mm; Light spot direction: Vertical; Light emission: Long side; Connection type Detail: Male connector M8, 4-pin.

Manufacturer

Sick

Part number

1087463

Product family

LUTM

Category

Luminescence sensors

Technical details

Working range: 8 mm... 20 mm; Supply voltage: 12 V DC... 24 V DC; Switching output: PNP; Switching output (voltage): PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V; Response time: 80 µs; Dimensions (W x H x D): 12 mm x 31.5 mm x 21 mm; Connection type: Male connector M8, 4-pin; Enclosure rating: IP67; Housing material: ABS; Ambient operating temperature: –10 °C... +55 °C; Weight: 70 g; Housing design: Small; Light source: LED, Ultraviolet light; Light emission: Long side

Weight

0.07 kg

Dimensions

12 x 31.5 x 21
