1075438

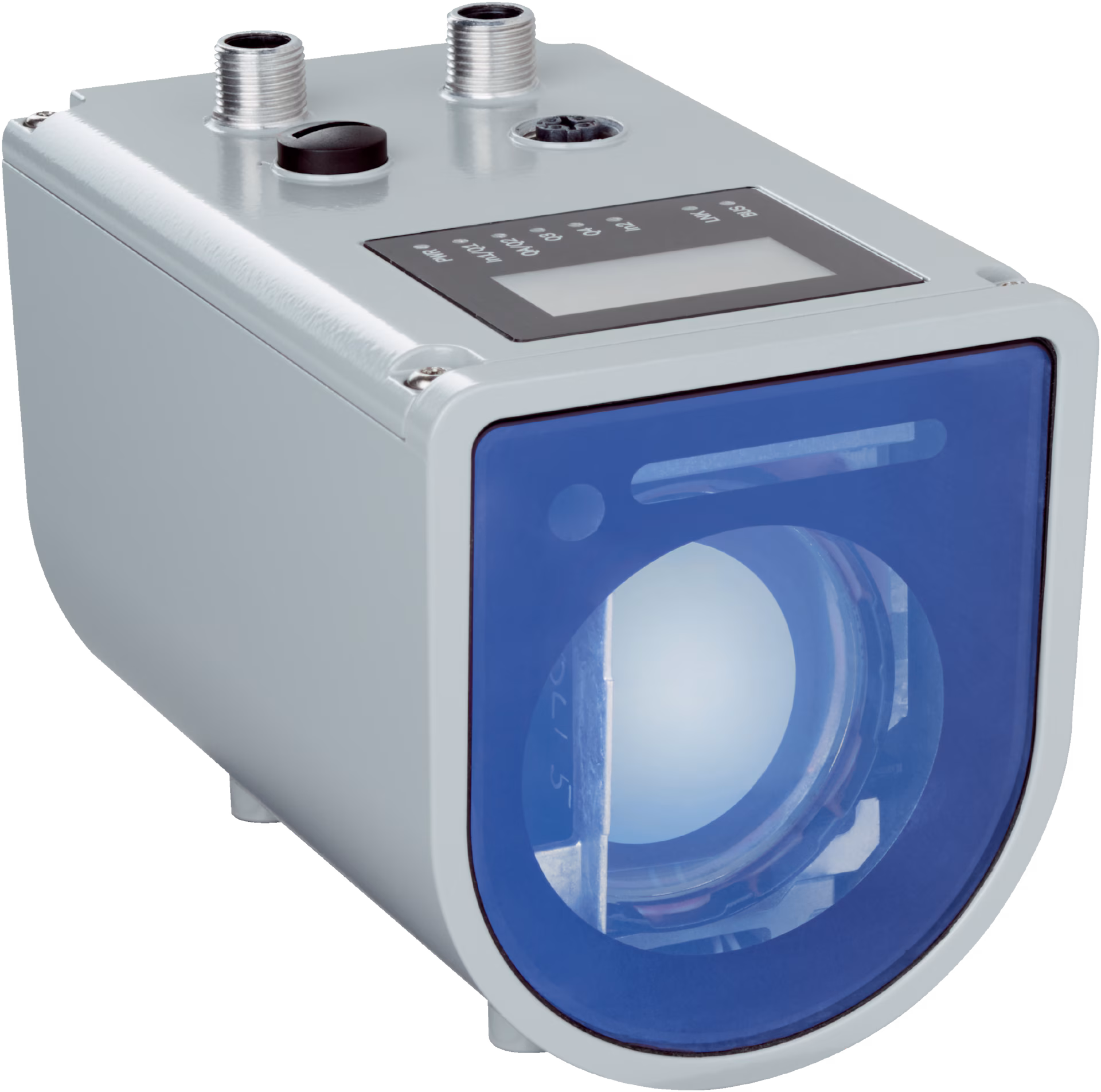

SICK 1075438 / DL1000-S11101 is a laser distance sensor in the Dx1000 family. Target: Reflector; Measuring range: 0.2 m... 1,500 m, on “diamond grade” reflective tape; Repeatability: ≥ 1 mm, See repeatability characteristic lines; Accuracy: Typ. ± 15 mm See measurement accuracy diagram; Communication interface: Ethernet, Serial, SSI; Type of analog output: Current output.

Manufacturer

Sick

Part number

1075438

Product family

Dx1000

Category

Laser distance sensors

Technical details

Resolution: 1 µm... 100,000 µm, adjustable; Supply voltage UB: DC 18 V... 30 V, reverse polarity protected; Repeatability: ≥ 1 mm, See repeatability characteristic lines; Measurement accuracy: Typ. ± 15 mm, See measurement accuracy diagram; Response time: 3 ms... 384 ms; Dimensions (W x H x D): 84 mm x 104.4 mm x 140.5 mm; Connection type: Round connector M12 x 1; Enclosure rating: IP65; IP67; Housing material: Metal (Aluminum alloy (AlSi12)); Weight: 980 g; Measurement principle: HDDM; Measuring range: 0.2 m... 1,500 m, on “diamond grade” reflective tape; Target: Reflector; Measurement cycle time: 1 ms; 4 ms; 16 ms

Weight

0.98 kg

Dimensions

84 x 104.4 x 140.5
