1071996

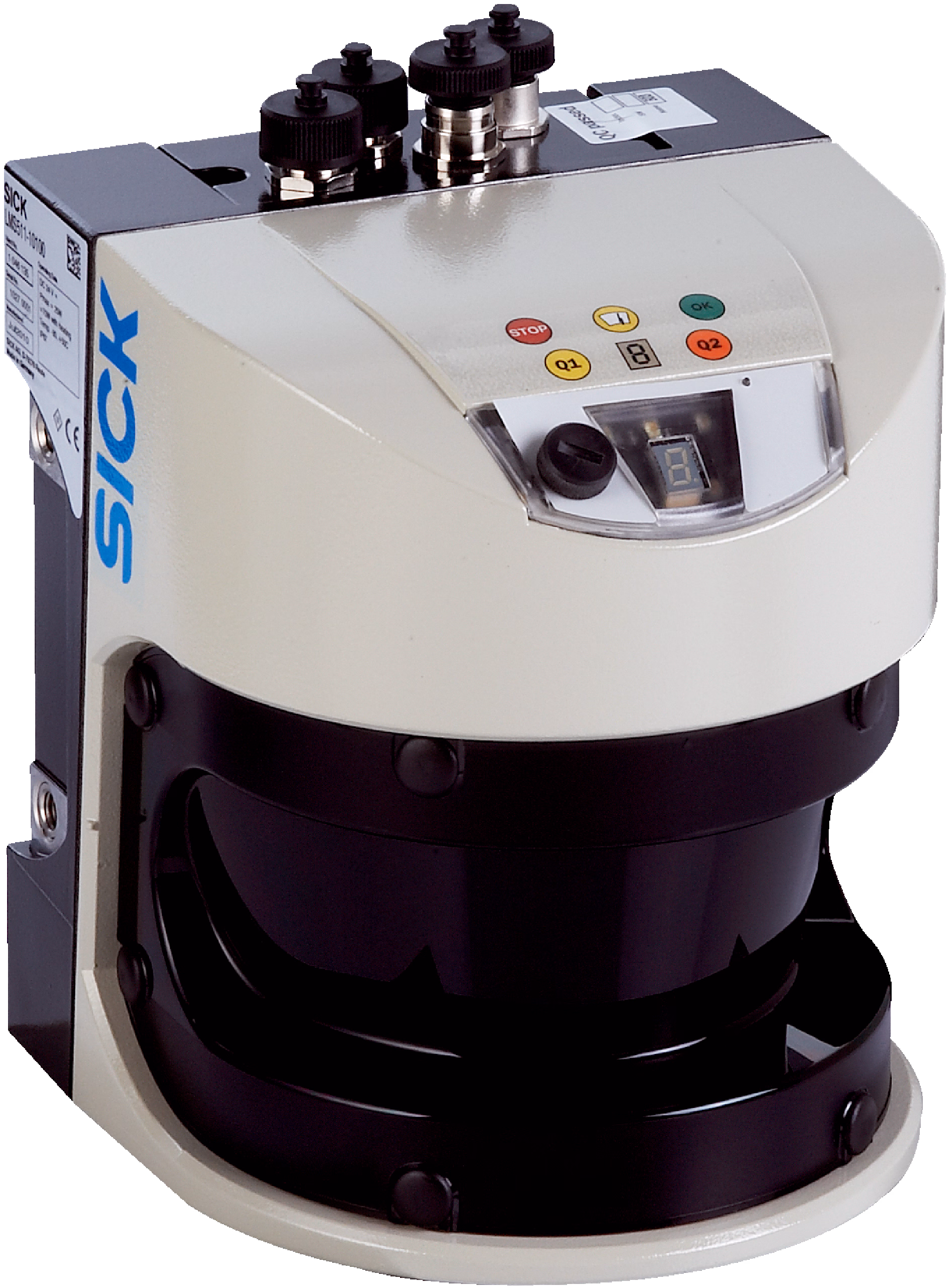

SICK 1071996 / LMS511-22100 Heavy Duty is a lidar sensor in the LMS5xx family. Working range: 0.2 m... 80 m; Resolution power: High Resolution; Enclosure rating: IP65, IP67; Color: Gray (RAL 7032); Integrated application: Field evaluation, output of measurement data; Connection type: 4 x M12 round connector (stainless steel); Scanning frequency: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz.

Manufacturer

Sick

Part number

1071996

Product family

LMS5xx

Category

LiDAR sensors

Technical details

Working range: 0.2 m... 80 m; Resolution power: High Resolution; Angular resolution: Horizontal 0.042°, interlaced; Supply voltage: 24 V DC, ± 20 %; Measurement accuracy: ± 12 mm; Response time: ≥ 10 ms; Dimensions (L x W x H): 160 mm x 155 mm x 185 mm; Connection type: 4 x M12 round connector (stainless steel); Enclosure rating: IP65 (EN 60529, Section 14.2.7); IP67 (EN 60529, Section 14.2.7); Housing material: AlSi12; Ambient operating temperature: –40 °C... +60 °C; Weight: 3.7 kg; Application: Outdoor, Indoor; Variant: Heavy-Duty

Weight

3.7 kg

Dimensions

160 x 155 x 185

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
