1064256

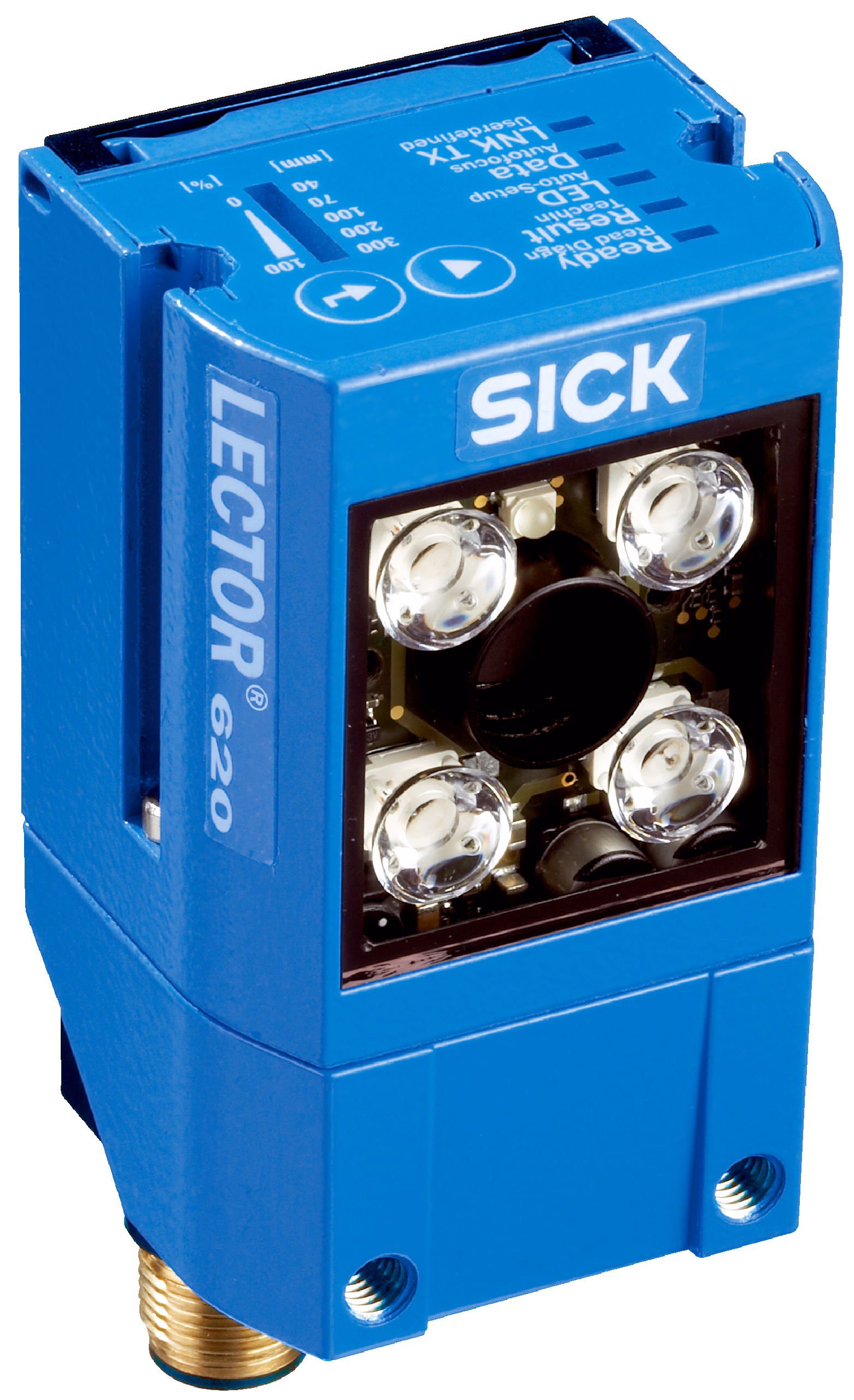

SICK 1064256 / ICR620D-T51503 DPM Plus is an archive in the Lector62x family. Image-based code readers; Variant: Complete device; Optical focus: Teach auto focus; Sensor resolution: 752 px x 480 px (WVGA); Illumination color: RedBlue; Focal length: 18 mm; Communication interface: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP; Cold storage applications: no; Note: Additional accessories may be necessary for some communication interfaces (details available online).

Manufacturer

Sick

Part number

1064256

Product family

Lector62x

Category

Archive

Technical details

Working range: 300 mm... 1,000; Sensor resolution: 752 px x 480 px (WVGA); Code resolution: ≥ 0.2 mm; Supply voltage: 10 V DC... 30 V DC; Operator interfaces: Web server; Dimensions (L x W x H): 71 mm x 43 mm x 35.6 mm; Connection type: 1 x M12, 17-pin male connector; 1 x M12, 4-pin Ethernet female connector; Enclosure rating: IP65 (EN 60529 (1991-10), EN 60529/A2 (2002-02)); Housing material: Aluminum die cast; Ambient operating temperature: 0 °C... +50 °C; Weight: 170 g; Variant: Complete device; Optical focus: Teach auto focus; Sensor: CMOS monochrome

Weight

0.17 kg

Dimensions

71 x 43 x 35.6
