1054507

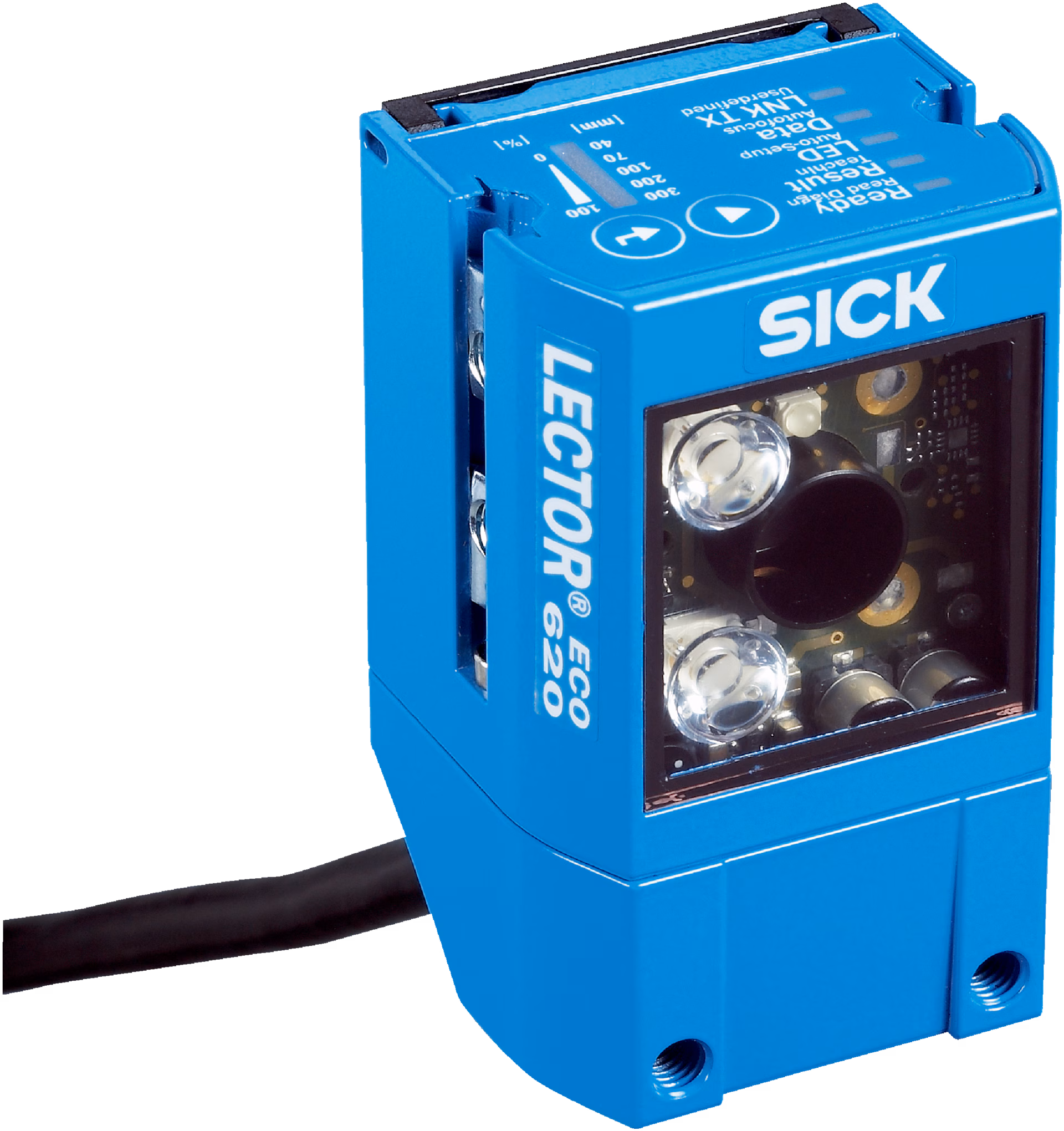

SICK 1054507 / ICR620E-H12013 ECO is an archive in the Lector62x family. Image-based code readers; Variant: Complete device; Optical focus: Adjustable focus (electrical); Sensor resolution: 752 px x 480 px (WVGA); Illumination color: Red; Focal length: 7 mm; Communication interface: PROFINET, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP; Cold storage applications: no; Note: Additional accessories may be necessary for some communication interfaces (details available online).

Manufacturer

Sick

Part number

1054507

Product family

Lector62x

Category

Archive

Technical details

Working range: 40 mm... 1,500 mm; Sensor resolution: 752 px x 480 px (WVGA); Code resolution: ≥ 0.1 mm; Supply voltage: 10 V DC... 30 V DC; Operator interfaces: Web server; Dimensions (L x W x H): 71 mm x 43 mm x 35.6 mm; Connection type: 1 x 15-pin D-Sub HD male connector (0.9 m); Enclosure rating: IP65 (EN 60529 (1991-10), EN 60529/A2 (2002-02)); Housing material: Aluminum die cast; Ambient operating temperature: 0 °C... +50 °C; Weight: 170 g; Variant: Complete device; Optical focus: Adjustable focus (electrical); Sensor: CMOS monochrome

Weight

0.17 kg

Dimensions

71 x 43 x 35.6

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
