1063390

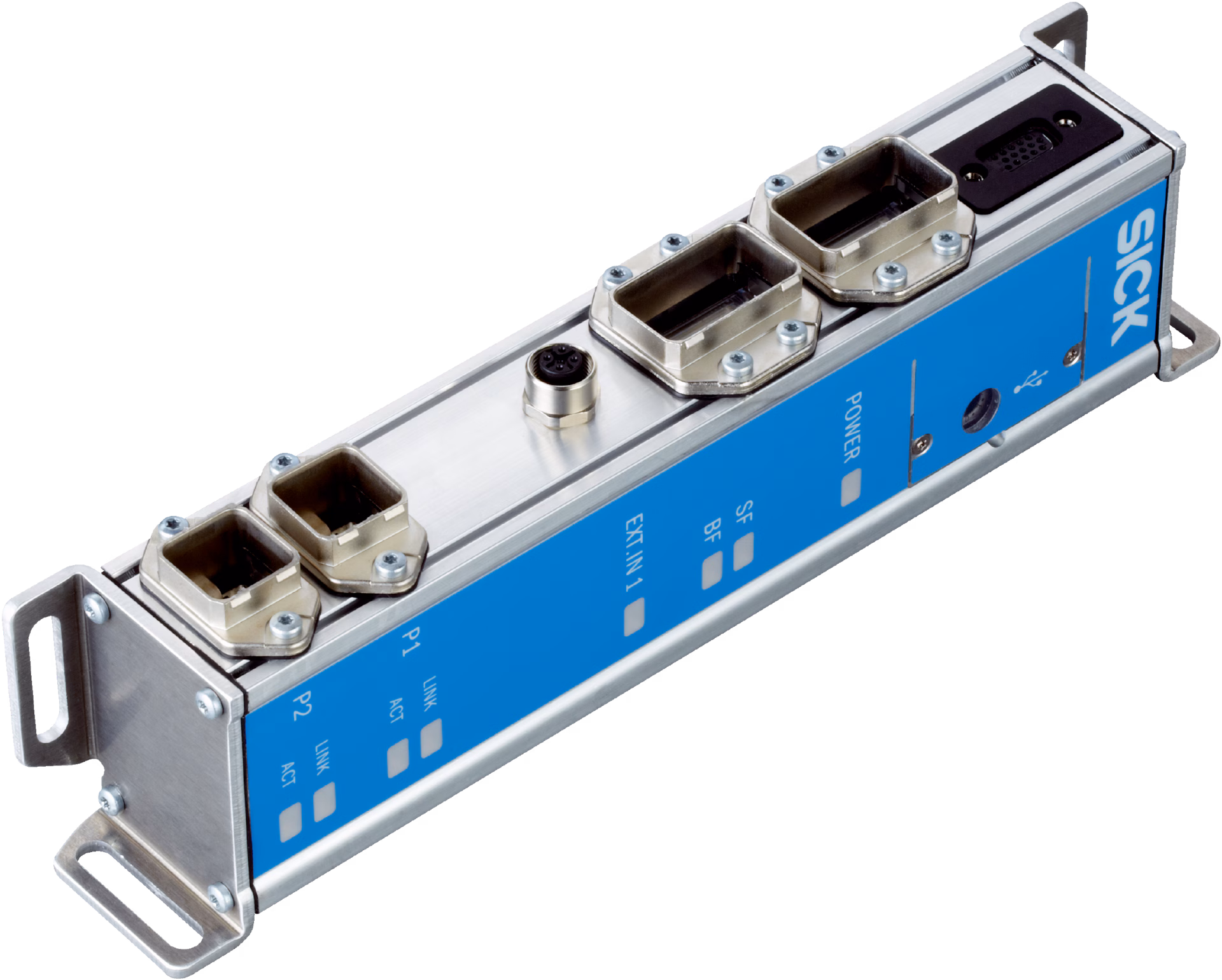

SICK 1063390 / CDF600-2201 is a network device in the CDF family. Communication interface: PROFINET, Serial; Communication Interface detail: RS-232, RS-232; Operating voltage: 10 V DC 30 V DC; Supported products: Lector series, CLV61x - CLV65x, CLV69x, RFID read/write device, Mobile handheld scanners.

Manufacturer

Sick

Part number

1063390

Product family

CDF

Category

Network devices

Technical details

Supply voltage: 10 V DC... 30 V DC; Dimensions (L x W x H): 270.1 mm x 74.7 mm x 47.4 mm; Connection type: 1 x “DEVICE” connection, 15-pin D-sub HD female connector with seal; 2 x “POWER” connection, 5-pin power male connector, push-pull AIDA compliant; 1 x “EXT. IN 1” connection, 5-pin M12 female connector, A-coded; 1 x “P1 PROFINET” connection, 8-pin RJ45 female connector, push-pull AIDA compliant; 1 x “P2 PROFINET” connection, 8-pin RJ45 female connector, push-pull AIDA compliant; 1 x “USB” connection, 5-pin micro-B socket, for configuration/diagnostics, behind screw-mounted cover; Enclosure rating: IP65; Ambient operating temperature: –35 °C... +50 °C; Weight: + 690 g; Supported products: Lector series; CLV61x - CLV65x; CLV69x; RFID read/write device; Mobile handheld scanners; Cloning module support (CMC): Integrated; Supports display module (CMD): No; Supports power supply module (CMP): No; Supports fieldbus gateway (CMF): No; Power consumption: < 5 W, if no sensor is connected and the digital input is not connected; Housing: Aluminum (unpainted); Scanner connection: RS-232

Weight

0.69 kg

Dimensions

270.1 x 74.7 x 47.4
