1062460

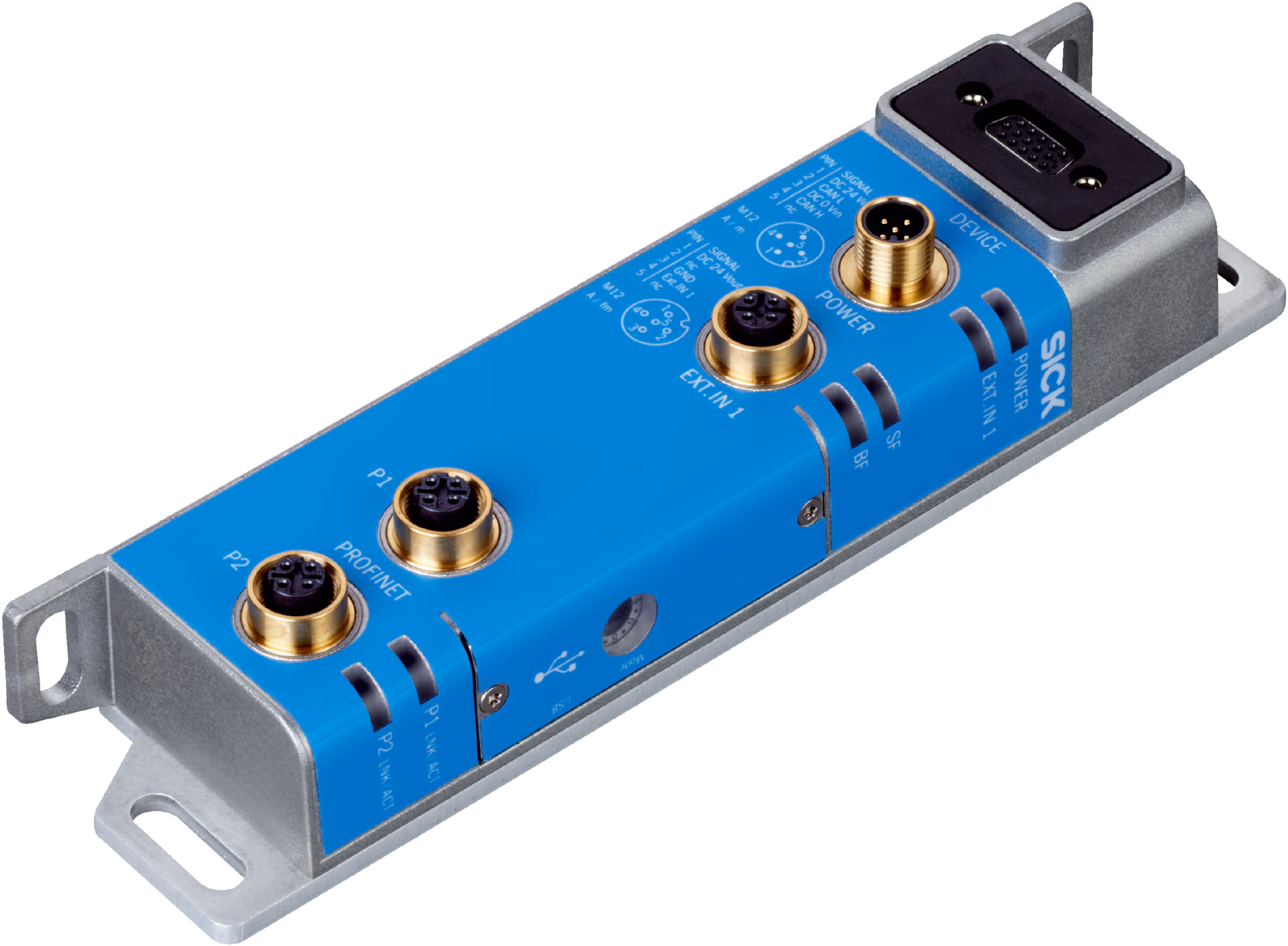

SICK 1062460 / CDF600-2200 - V2.x, NetX51 is a network device in the CDF family. Communication interface: PROFINET, Serial, CAN; Communication Interface detail: RS-232, RS-232; Operating voltage: 10 V DC 30 V DC; Supported products: Lector series, CLV61x - CLV65x, CLV69x, RFID read/write device, Mobile handheld scanners.

Manufacturer

Sick

Part number

1062460

Product family

CDF

Category

Network devices

Technical details

Supply voltage: 10 V DC... 30 V DC; Dimensions (L x W x H): 207 mm x 49.5 mm x 40.7 mm; Connection type: 1 x “DEVICE” connection, 15-pin D-sub HD female connector with seal; 1 x “POWER” connection, 5-pin M12 plug, A-coded; 1 x “EXT. IN 1” connection, 5-pin M12 female connector, A-coded; 1 x “PROFINET P1” connection, 4-pin M12 female connector, D-coded; 1 x “PROFINET P2” connection, 4-pin M12 socket, D-coded; 1 x “USB” connection, 5-pin micro-B socket, for configuration/diagnostics, behind screw-mounted cover; Enclosure rating: IP65; Ambient operating temperature: –35 °C... +50 °C; Weight: + 361 g; Supported products: Lector series; CLV61x - CLV65x; CLV69x; RFID read/write device; Mobile handheld scanners; Cloning module support (CMC): Integrated; Supports display module (CMD): No; Supports power supply module (CMP): No; Supports fieldbus gateway (CMF): No; Power consumption: < 5 W, if no sensor is connected and the digital input is not connected; Housing: Aluminum (unpainted); Scanner connection: RS-232

Weight

0.361 kg

Dimensions

207 x 49.5 x 40.7
