1062991

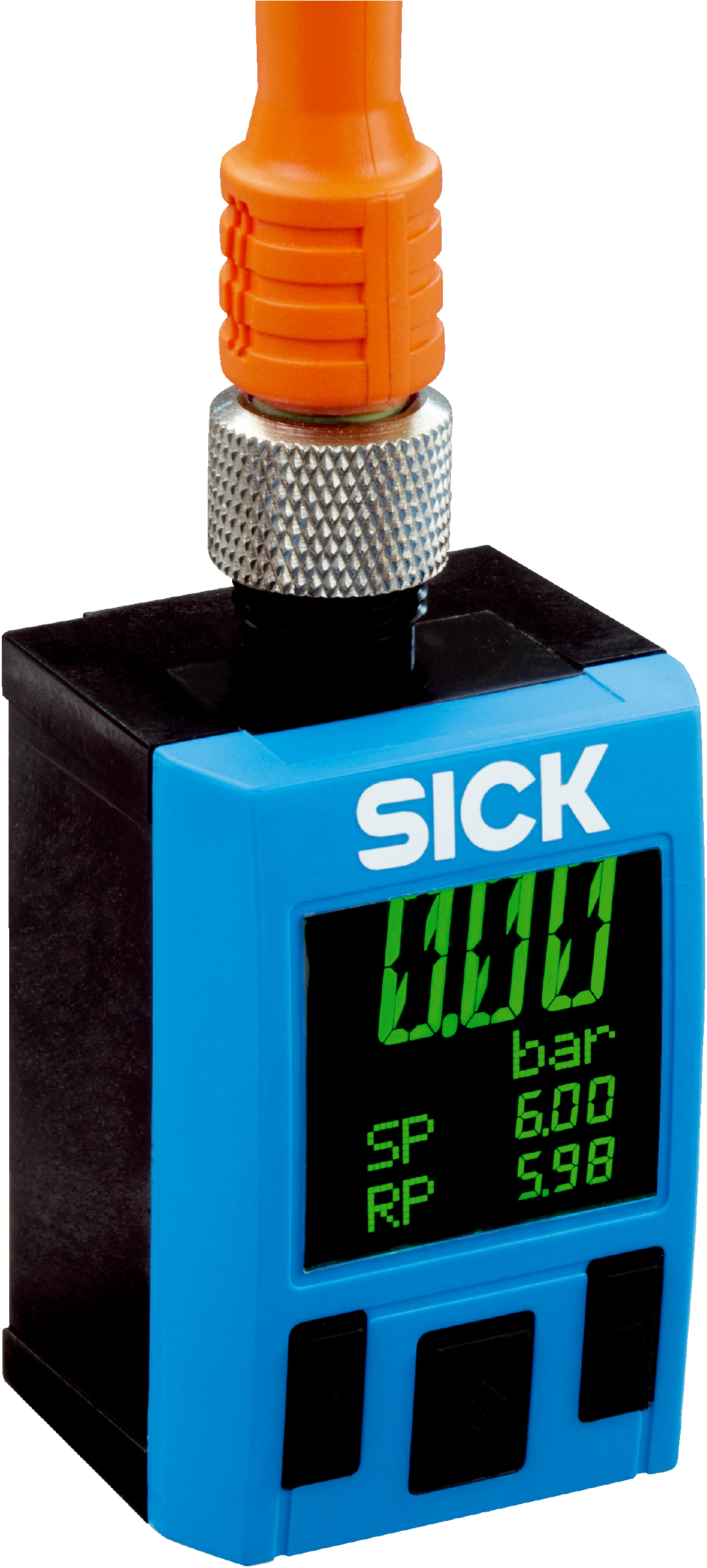

SICK 1062991 / PAC50-DCC is a pressure sensor in the PAC50 family. Pressure type: Gauge pressure; Pressure unit: bar; Measuring range: 0 bar... 10 bar; Accuracy: ≤ ± 1.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)); Process connection: PIF 4 mm + G ¼; Process temperature: 0 °C... +60 °C; Communication interface: -; Output signal: 2 x PNP/NPN/Push-Pull + 4 mA... 20 mA / 0 V... 10 V; Connection type: Round connector M12 x 1, 5-pin, IP65, IP67; Supply voltage: 17 V DC... 30 V DC.

Manufacturer

Sick

Part number

1062991

Product family

PAC50

Category

Pressure sensors

Technical details

Supply voltage: 17 V DC... 30 V DC; Communication interface: -; Setting accuracy of switching outputs: ≤ ± 0.2 % of span; Accuracy: ≤ ± 1.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)); Non-repeatability: ≤ ± 0.2 % of the span; Connection type: Round connector M12 x 1, 5-pin; Enclosure rating: IP65; IP67; Housing material: Housing: polycarbonate, Buttons: TPE, DIN rail mounting: POM, seals: NBR; Medium: Dry compressed air; Pressure type: Gauge pressure; Pressure unit: bar; Measuring range: 0 bar... 10 bar; Overpressure safety: 15 bar; Process temperature: 0 °C... +60 °C
