1062961

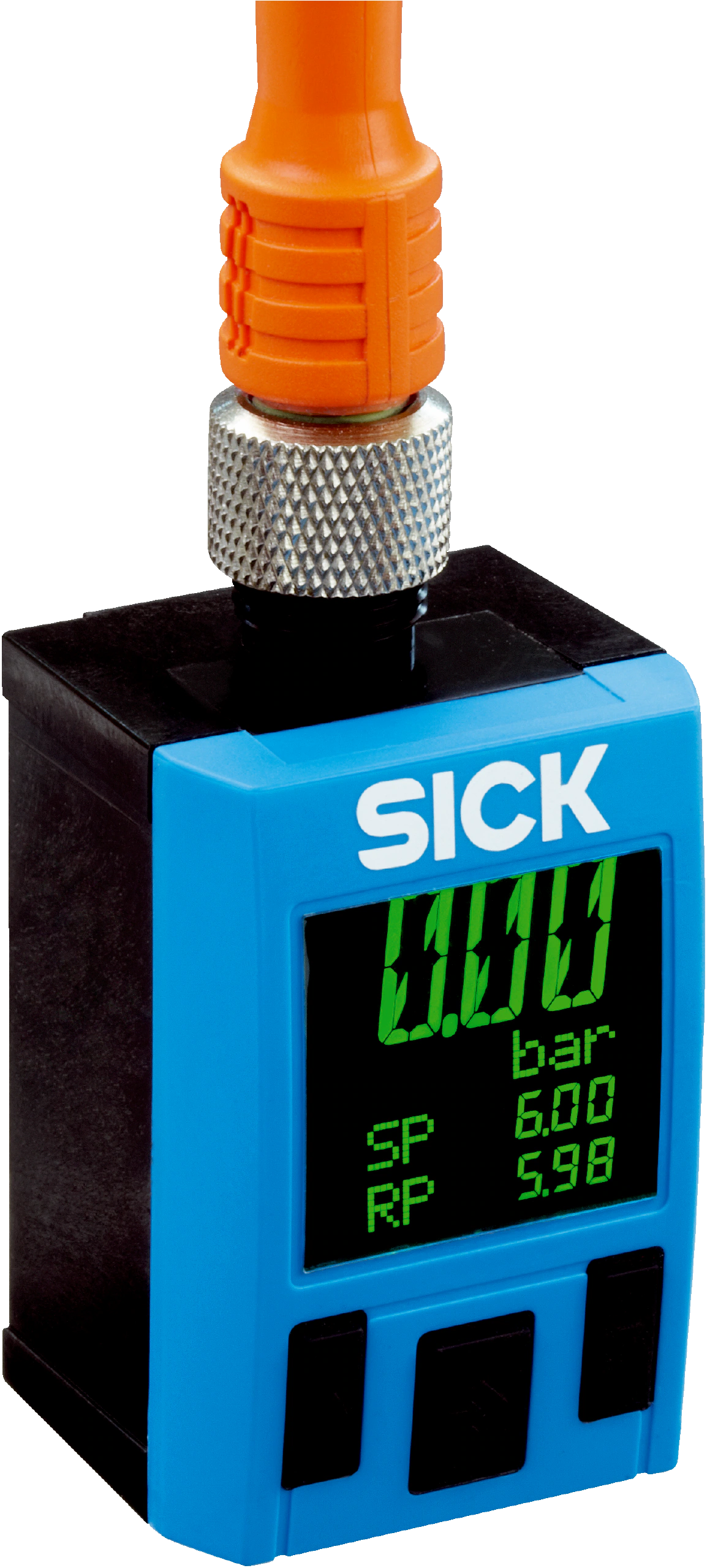

SICK 1062961 / PAC50-BGD is a pressure sensor in the PAC50 family. Pressure type: Gauge pressure; Pressure unit: bar; Measuring range: –1 bar... 1 bar; Accuracy: ≤ ± 1.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)); Process connection: 2 x G ¼; Process temperature: 0 °C... +60 °C; Communication interface: IO-Link; Output signal: IO-Link/PNP + PNP/NPN/Push-Pull; Connection type: M12 round connector x 1, 4-pin, IP65, IP67; Supply voltage: 17 V DC... 30 V DC.

Manufacturer

Sick

Part number

1062961

Product family

PAC50

Category

Pressure sensors

Technical details

Supply voltage: 17 V DC... 30 V DC; Communication interface: IO-Link; Communication Interface detail: IO-Link V1.1; Setting accuracy of switching outputs: ≤ ± 0.2 % of span; Accuracy: ≤ ± 1.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)); Non-repeatability: ≤ ± 0.2 % of the span; Connection type: M12 round connector x 1, 4-pin; Enclosure rating: IP65; IP67; Housing material: Housing: polycarbonate, Buttons: TPE, DIN rail mounting: POM, seals: NBR; Medium: Dry compressed air; Pressure type: Gauge pressure; Pressure unit: bar; Measuring range: –1 bar... 1 bar; Overpressure safety: 5 bar
