1060986

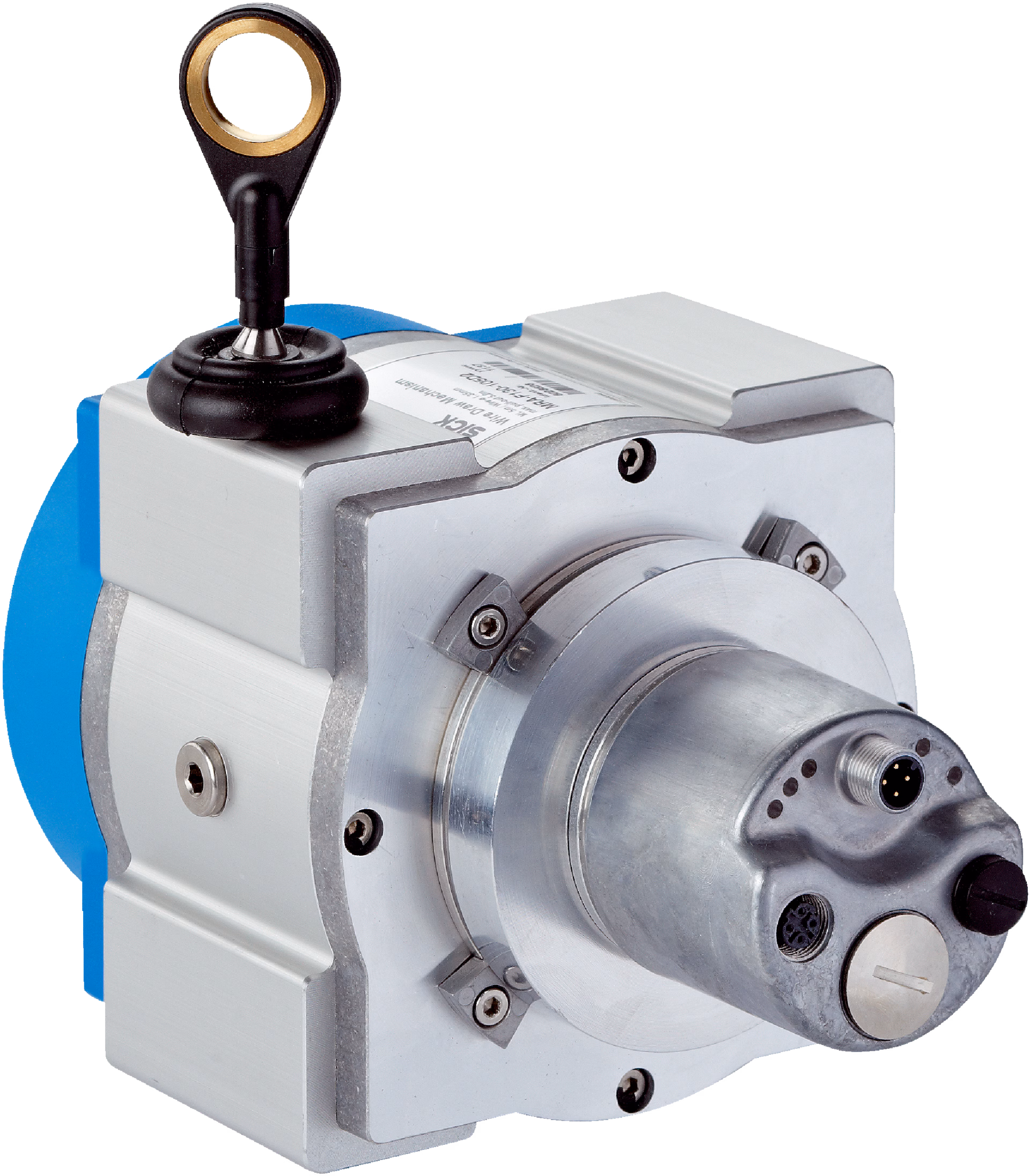

SICK 1060986 / BTF13-N1BM0599 is a wire draw encoder in the HighLine family. Measuring range: 0 m... 5 m; Communication interface: PROFINET; Supply voltage: 10 V DC... 30 V DC; Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial; Mounted encoder: AFM60 PROFINET, AFM60A-S1NB018X12, 1059040; Mounted mechanic: MRA-F130-105D2, 6028626; Programmable/configurable: yes.

Manufacturer

Sick

Part number

1060986

Product family

HighLine

Category

Wire draw encoders

Technical details

Measurement range: 0 m... 5 m; Resolution (wire draw + encoder): 0.001 mm; Supply voltage: 10 V DC... 30 V DC; Communication interface: PROFINET; Repeatability: ≤ 1 mm; Connection type: Male connector, 1x, M12, 4-pin, axial; Female connector, 2x, M12, 4-pin, axial; Enclosure rating: IP64, mounted mechanic; IP67, Encoder (IEC 60529); Housing material, wire draw mechanism: Aluminum (anodised), plastic; Weight: 3 kg; MTTFD (mean time to dangerous failure): 80 years (EN ISO 13849-1); Encoder: Absolute encoders; Linearity: ≤ ± 2 mm; Hysteresis: ≤ 2 mm; Programmable/configurable: ✔

Weight

3 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
