1060982

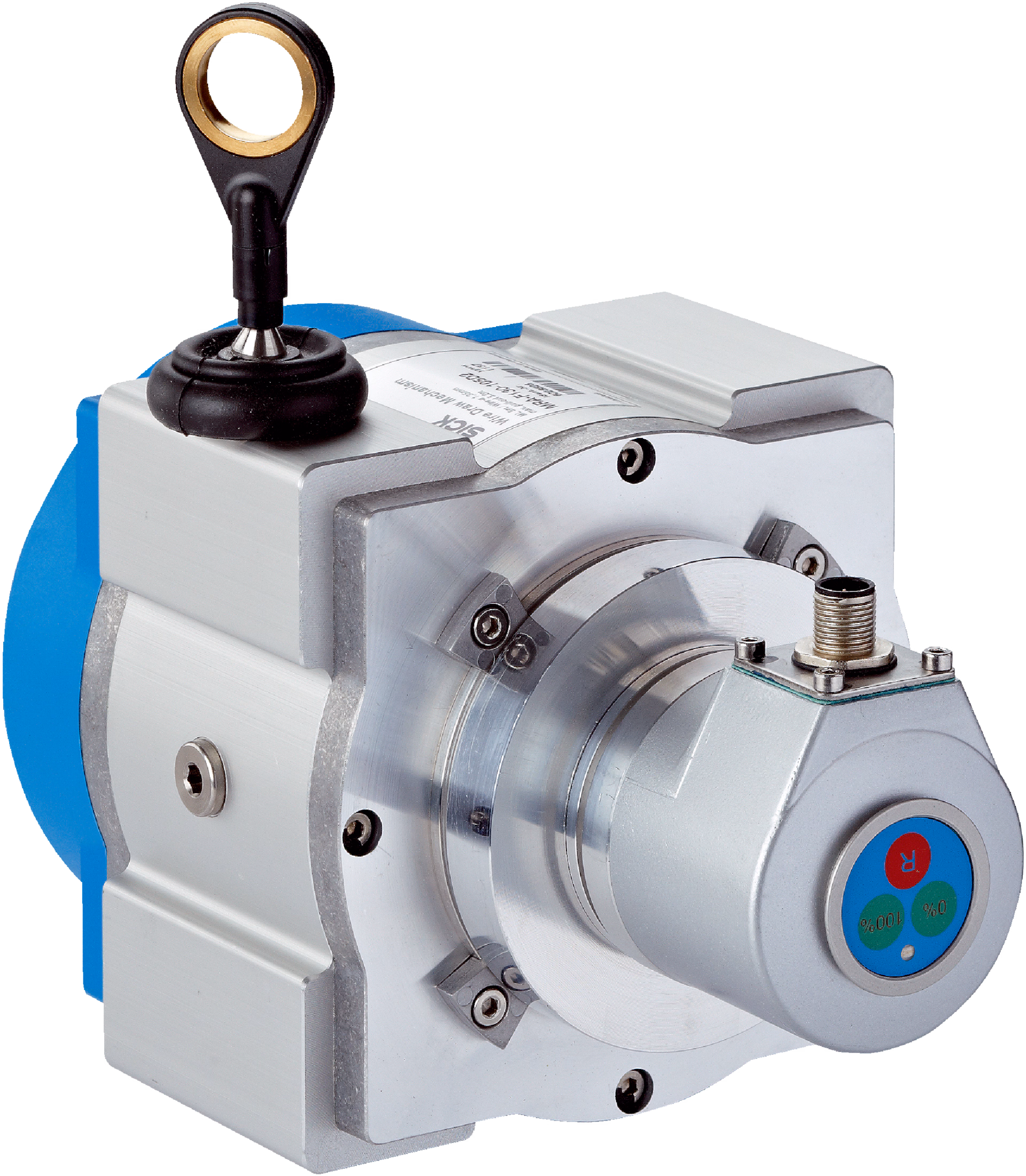

SICK 1060982 / BTF13-K1EM05PP is a wire draw encoder in the HighLine family. Measuring range: 0 m... 5 m; Communication interface: - / Current / 4...20 mA; Supply voltage: 18 V DC... 33 V DC; Connection type: Male connector, M12, 5-pin, radial; Mounted encoder: ACM60, ACM60B-S1KE13X06, 6045312; Mounted mechanic: MRA-F130-105D2, 6028626; Programmable/configurable: yes.

Manufacturer

Sick

Part number

1060982

Product family

HighLine

Category

Wire draw encoders

Technical details

Measurement range: 0 m... 5 m; Resolution (wire draw + encoder): 0.04 mm; Supply voltage: 18 V DC... 33 V DC; Communication interface: - / Current / 4...20 mA; Repeatability: ≤ 1 mm; Connection type: Male connector, M12, 5-pin, radial; Enclosure rating: IP64, mounted mechanic; IP67, Encoder (IEC 60529); Housing material, wire draw mechanism: Aluminum (anodised), plastic; Weight: 3.2 kg; MTTFD (mean time to dangerous failure): 600 years (EN ISO 13849-1); Encoder: Absolute encoders; Linearity: ≤ ± 2 mm; Hysteresis: ≤ 2 mm; Programmable/configurable: ✔

Weight

3.2 kg
