1060308

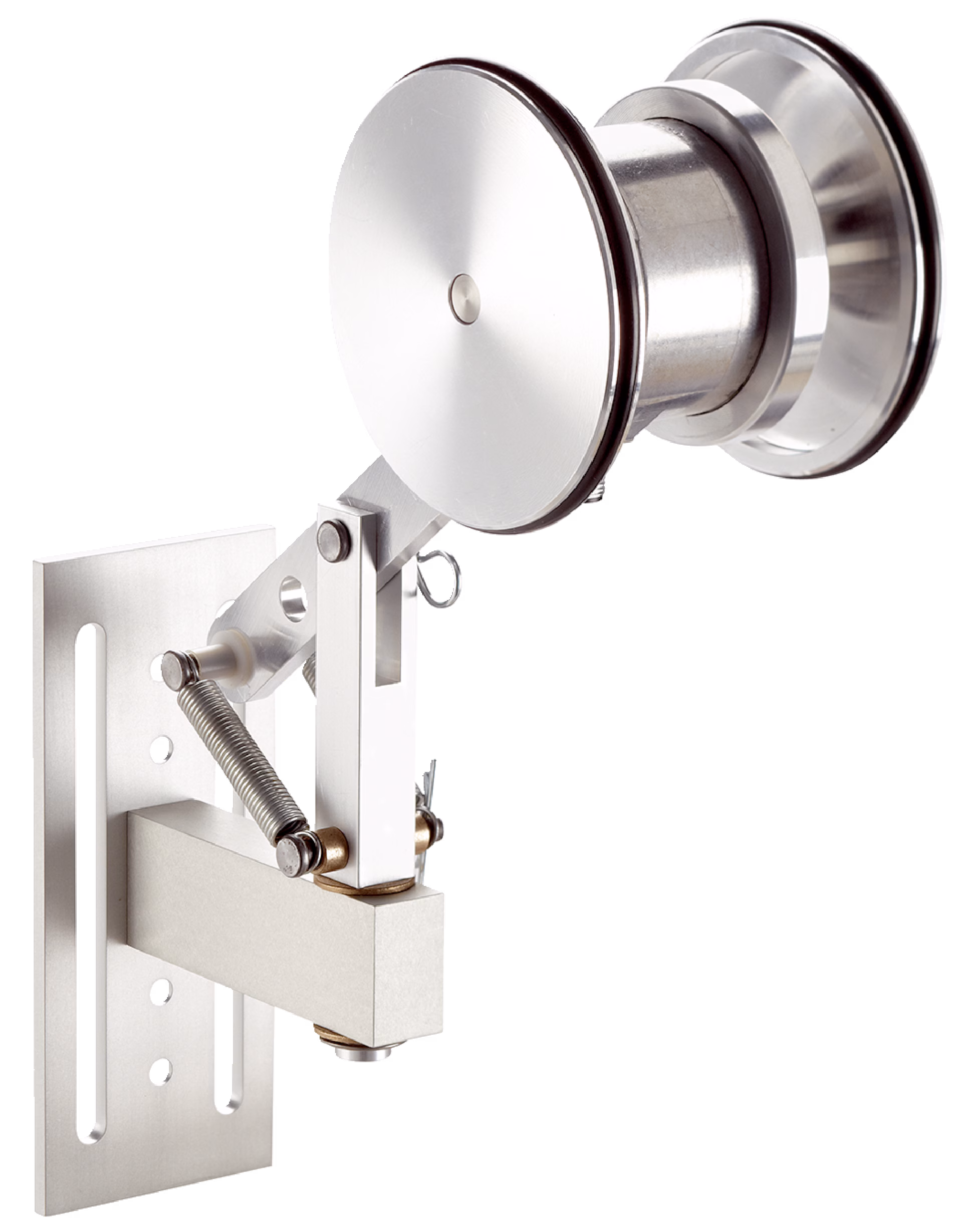

SICK 1060308 / DFV60E-22EC01024 is an archive in the DFV60 family. Measuring wheel encoders; Measuring wheel circumference: 300 mm; Measuring wheel surface: O-ring NBR70; Communication interface: 10 V... 32 V, Incremental, HTL, Push pull; Supply voltage: 10 V... 32 V; Connection type: Male connector, M12, 8-pin, radial; Resolution in pulses/mm: 3.41.

Manufacturer

Sick

Part number

1060308

Product family

DFV60

Category

Archive

Technical details

Resolution in pulses/mm: 3.41 Pulses/mm; Measuring increment (resolution in mm/pulse): 0.3 mm/pulse; Supply voltage: 10 V... 32 V; Communication interface: Incremental; Communication Interface detail: HTL / Push pull; Connection type: Male connector, M12, 8-pin, radial; Enclosure rating: IP65; Items supplied: DFV60 spring arm (part number: 2056155) not included with delivery; MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1); Pulses per revolution: 1,024; Measuring step deviation: ± 0.008°; Error limits: ± 4 mm/m, subject to measuring wheel (measuring wheel surface + measuring surface + ambient conditions); Initialization time: 30 ms; Power consumption max. without load: ≤ 30 mA

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
