1051337

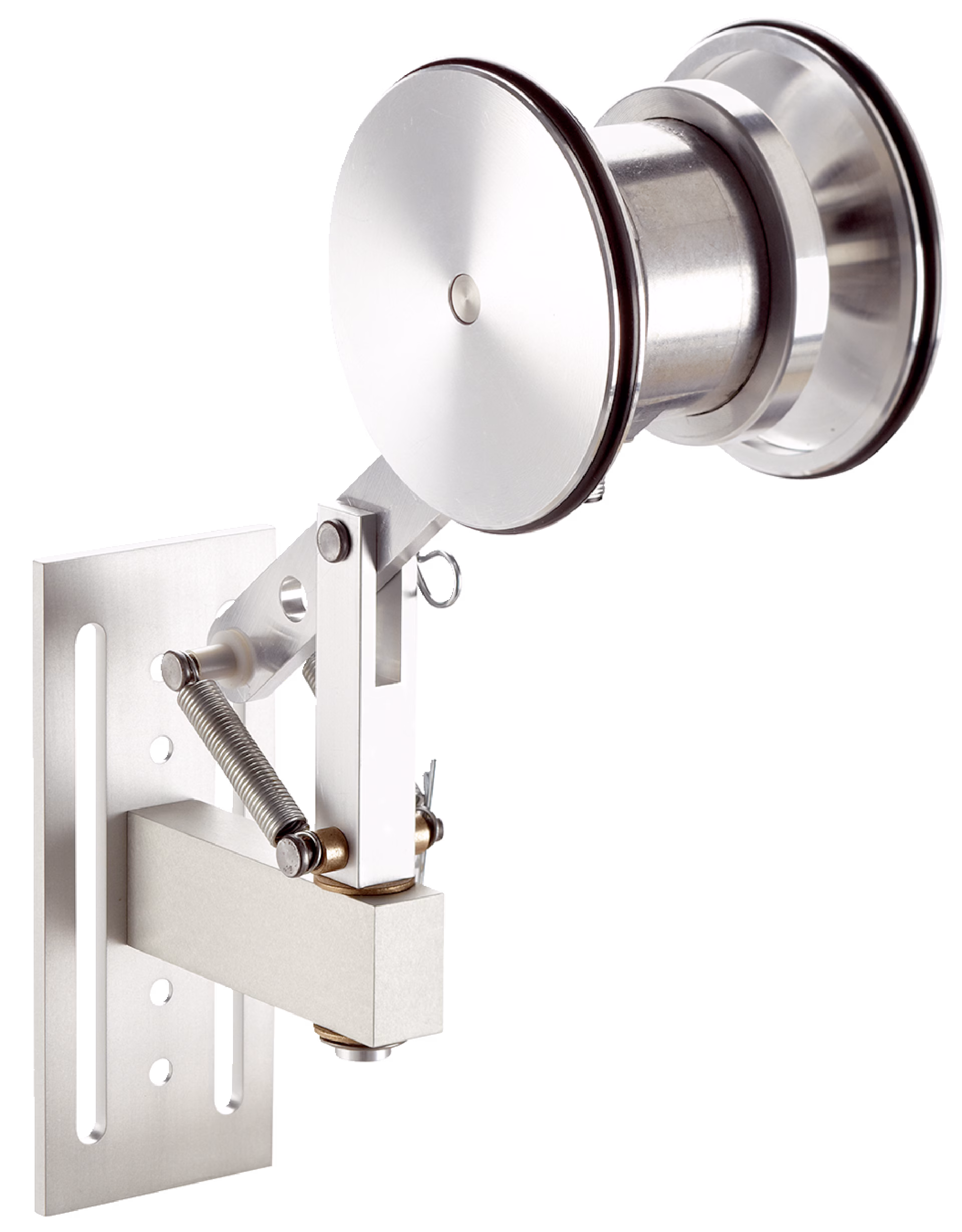

SICK 1051337 / DFV60A-22PM65536 is an archive in the DFV60 family. Measuring wheel encoders; Measuring wheel circumference: 300 mm; Measuring wheel surface: O-ring NBR70; Communication interface: 4.5 V... 32 V, Incremental, TTL, HTL; Supply voltage: 4.5 V... 32 V; Connection type: Cable, 8-wire, universal, 5 m; Resolution in pulses/mm: 218.45.

Manufacturer

Sick

Part number

1051337

Product family

DFV60

Category

Archive

Technical details

Resolution in pulses/mm: 218.45 Pulses/mm; Measuring increment (resolution in mm/pulse): 0.005 mm/pulse; Supply voltage: 4.5 V... 32 V; Communication interface: Incremental; Communication Interface detail: TTL / HTL; Connection type: Cable, 8-wire, universal, 5 m; Enclosure rating: IP65; Items supplied: DFV60 spring arm (part number: 2056155) not included with delivery; MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1); Pulses per revolution: 65,536; Measuring step deviation: ± 0.002°; Error limits: ± 4 mm/m, subject to measuring wheel (measuring wheel surface + measuring surface + ambient conditions); Initialization time: 30 ms; Programmable/configurable: ✔
