1058634

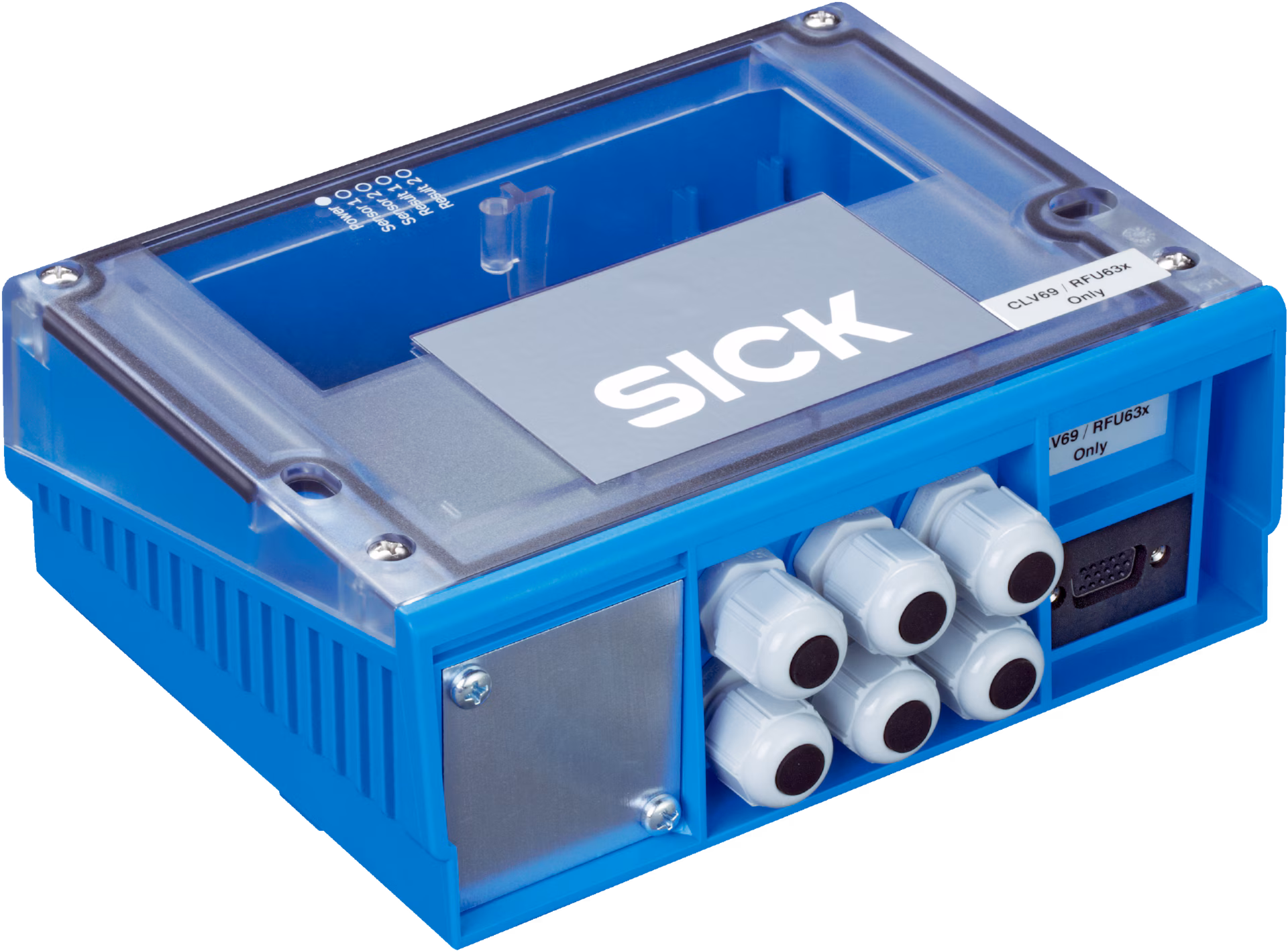

SICK 1058634 / CDM420-0006 is a junction boxe in the CDM family. Brief description: Modular connection module for one sensor, 2 A fuse; Communication interface: EthernetSerialCANPROFIBUS DPDeviceNet™; Communication Interface detail: RS-232; Supported products: Lector seriesRFID read/write deviceCLV61x - CLV65xCLV69x.

Manufacturer

Sick

Part number

1058634

Product family

CDM

Category

Junction boxes

Technical details

Dimensions (L x W x H): 192 mm x 167 mm x 70 mm; Enclosure rating: IP65; Ambient operating temperature: –35 °C... +40 °C; Weight: + 800 g; Brief description: Modular connection module for one sensor, 2 A fuse; Supported products: Lector series; RFID read/write device; CLV61x - CLV65x; CLV69x; Cloning module support (CMC): Yes; Supports display module (CMD): Yes; Supports power supply module (CMP): Yes; Supports fieldbus gateway (CMF): Yes (PROFIBUS DP, Ethernet, DeviceNet™); Power consumption: Power consumption of the sensor + 0.5 W; Housing: Polycarbonate; Scanner connection: 15-pin D-Sub HD female connector; Service plug: 9-pin D-Sub plug (internal)

Weight

0.8 kg

Dimensions

192 x 167 x 70

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
