1025363

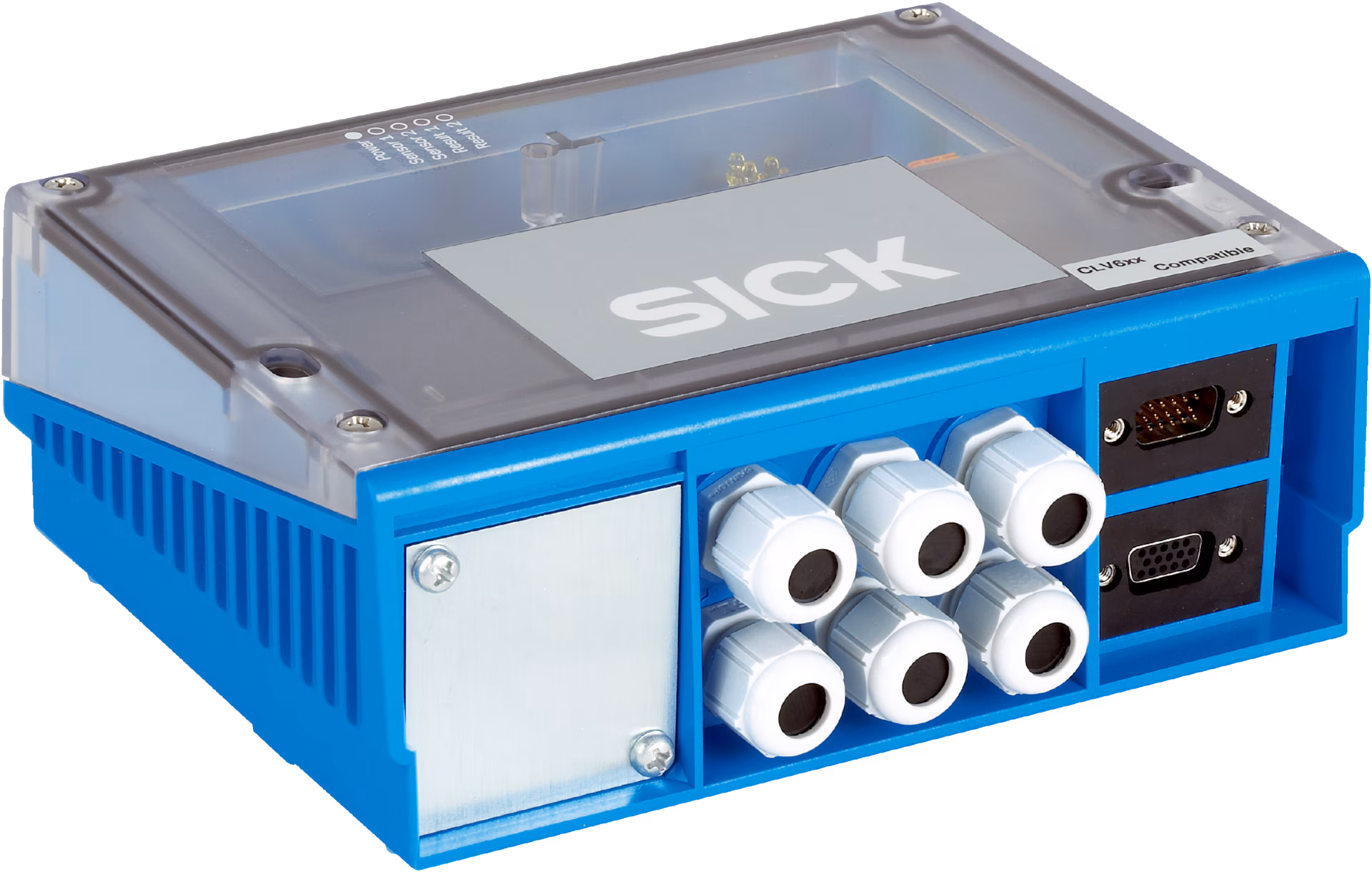

SICK 1025363 / CDM490-0001 is a junction boxe in the CDM family. Brief description: Modular connection module for one sensor; Communication interface: EthernetSerialCANPROFIBUS DPDeviceNet™; Communication Interface detail: RS-232; Supported products: CLV69xLMS400.

Manufacturer

Sick

Part number

1025363

Product family

CDM

Category

Junction boxes

Technical details

Dimensions (L x W x H): 192 mm x 167 mm x 70 mm; Enclosure rating: IP65; Ambient operating temperature: –35 °C... +40 °C; Weight: 870 g; Brief description: Modular connection module for one sensor; Supported products: CLV69x; LMS400; Cloning module support (CMC): Yes; Supports display module (CMD): Yes; Supports power supply module (CMP): Yes; Supports fieldbus gateway (CMF): Yes (PROFIBUS DP, Ethernet, DeviceNet™); Power consumption: Power consumption of the sensor + 0.5 W; Housing: Polycarbonate; Scanner connection: 15-pin D-Sub HD female connector, 15-pin D-Sub HD male connector; Service plug: 9-pin D-Sub plug (internal)

Weight

0.87 kg

Dimensions

192 x 167 x 70
