1056608

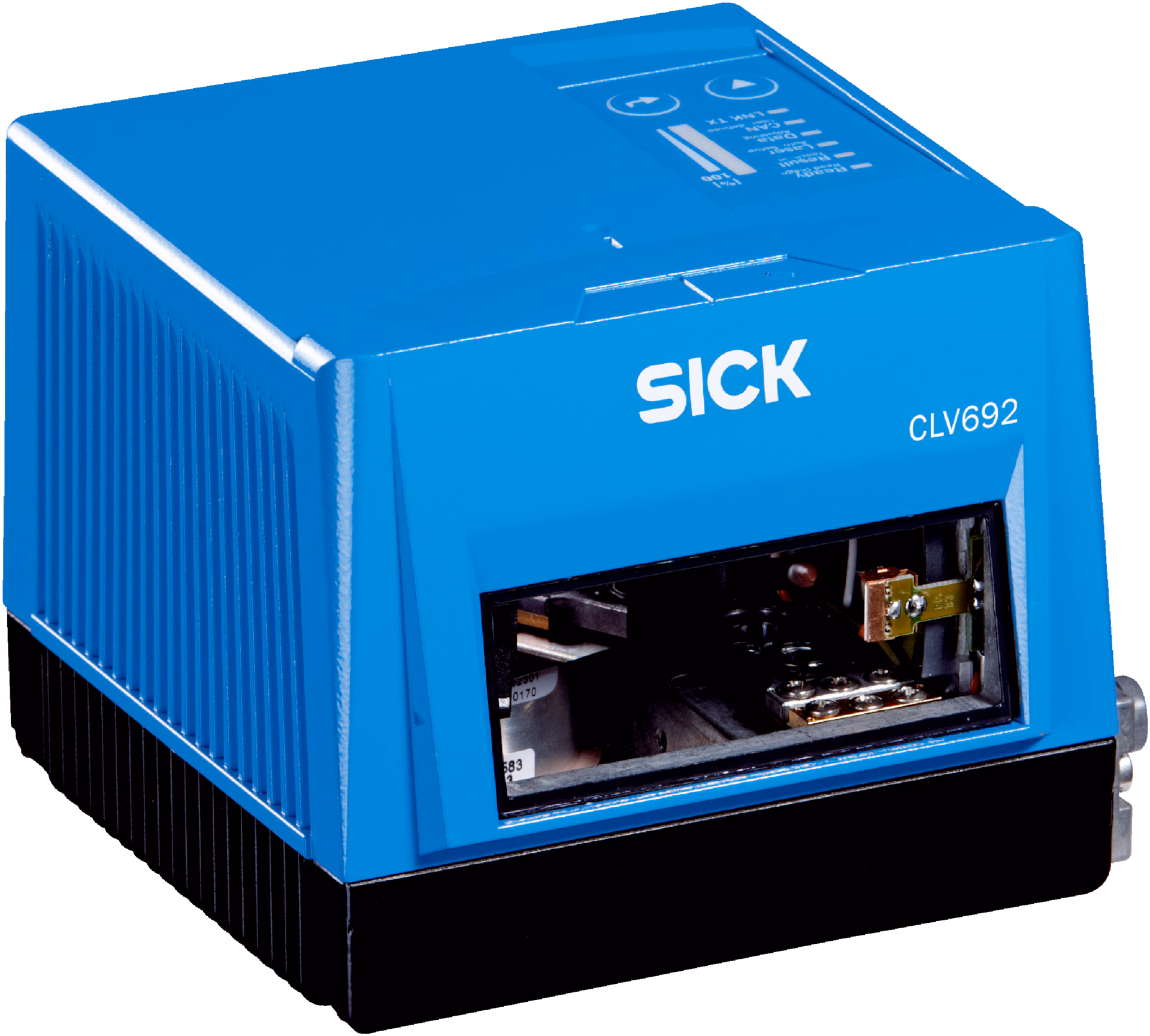

SICK 1056608 / CLV692-0000 is a fixed mount barcode scanner in the CLV69x family. Optical focus: Auto focus; Communication interface: Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, PROFIBUS DP; Type: Cloning plug; Max. reading distance: 1,600 mm; Code resolution: 0.17 mm... 0.4 mm; Code printing process: Label (printed codes); Sensor type: Line scanner; Window material: Glass; Cold storage applications: no; Enclosure rating: IP65.

Manufacturer

Sick

Part number

1056608

Product family

CLV69x

Category

Fixed mount barcode scanners

Technical details

Code resolution: 0.17 mm... 0.4 mm; Supply voltage: 18 V DC... 30 V DC; Dimensions (L x W x H): 117 mm x 117 mm x 94 mm; Connection type: Depending on the cloning plug used; Enclosure rating: IP65 (EN 60529/A1 (2002-02)); Housing material: Aluminum die cast; Ambient operating temperature: 0 °C... +40 °C; Weight: 1,500 g; Version: High Density; Reading field: Front; Sensor type: Line scanner; Optical focus: Auto focus (alternative: dynamic focus control); No. of distance configurations: ≤ 8; Focus adjustment time: ≤ 20 ms

Weight

0.0015 kg

Dimensions

117 x 117 x 94

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
