1041290

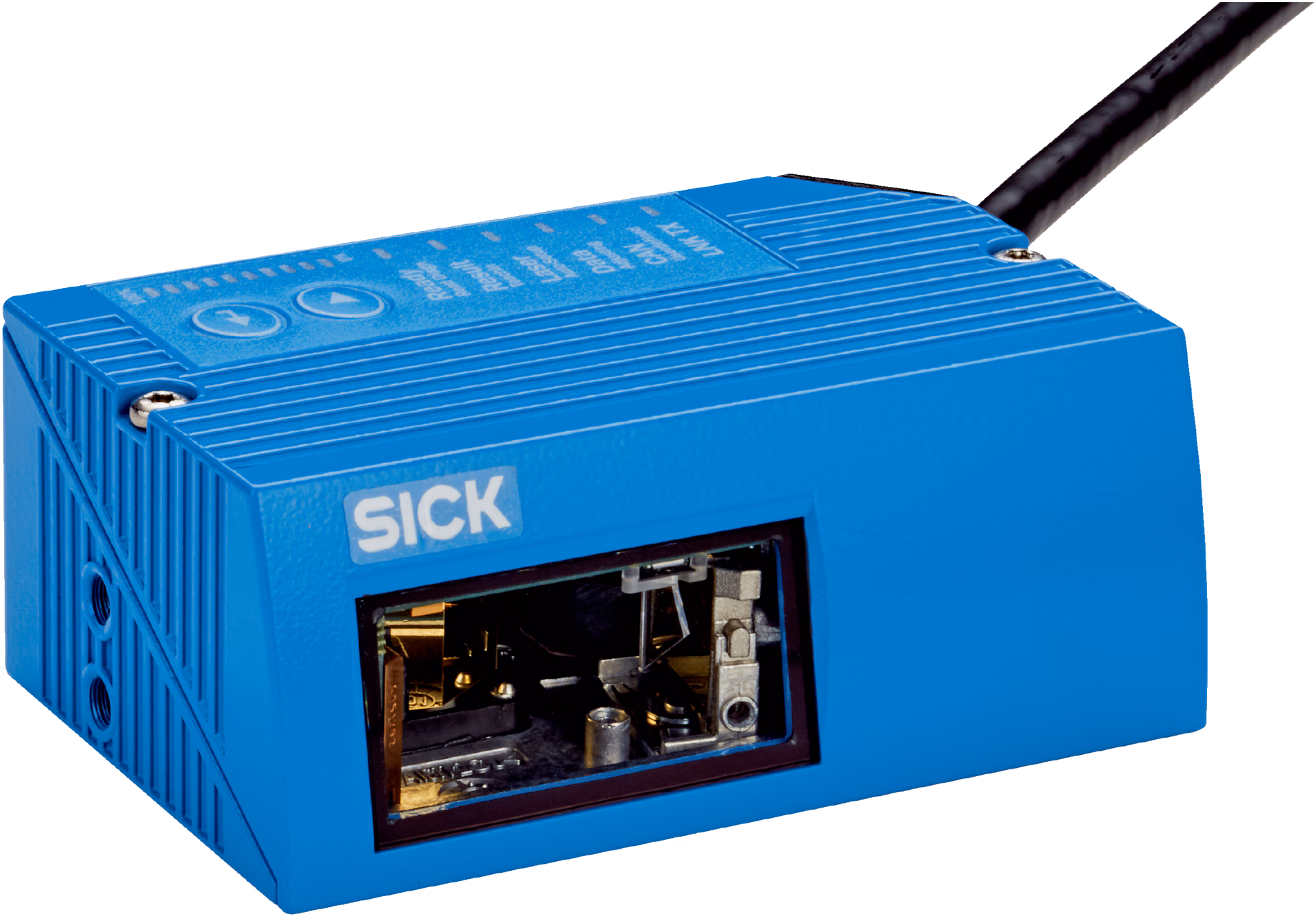

SICK 1041290 / CLV650-0000 is a fixed mount barcode scanner in the CLV65x family. Optical focus: Auto focus; Communication interface: PROFINET, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP; Type: Cable connection variant; Max. reading distance: 1,625 mm; Code resolution: 0.25 mm... 1 mm; Code printing process: Label (printed codes); Sensor type: Line scanner; Window material: Glass; Cold storage applications: no; Enclosure rating: IP65.

Manufacturer

Sick

Part number

1041290

Product family

CLV65x

Category

Fixed mount barcode scanners

Technical details

Code resolution: 0.25 mm... 1 mm; Supply voltage: 18 V DC... 30 V DC; Dimensions (L x W x H): 61 mm x 96 mm x 38 mm; Connection type: Cable; Enclosure rating: IP65 (EN 60529); Housing material: Aluminum die cast; Ambient operating temperature: 0 °C... +40 °C; Weight: 320 g, with connecting cable; Version: Standard Density; Reading field: Front; Sensor type: Line scanner; Optical focus: Auto focus; Light source: Light spot, laser, Visible, Red, 658 nm; Laser class: 2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014)

Weight

0.32 kg

Dimensions

61 x 96 x 38

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
