1055364

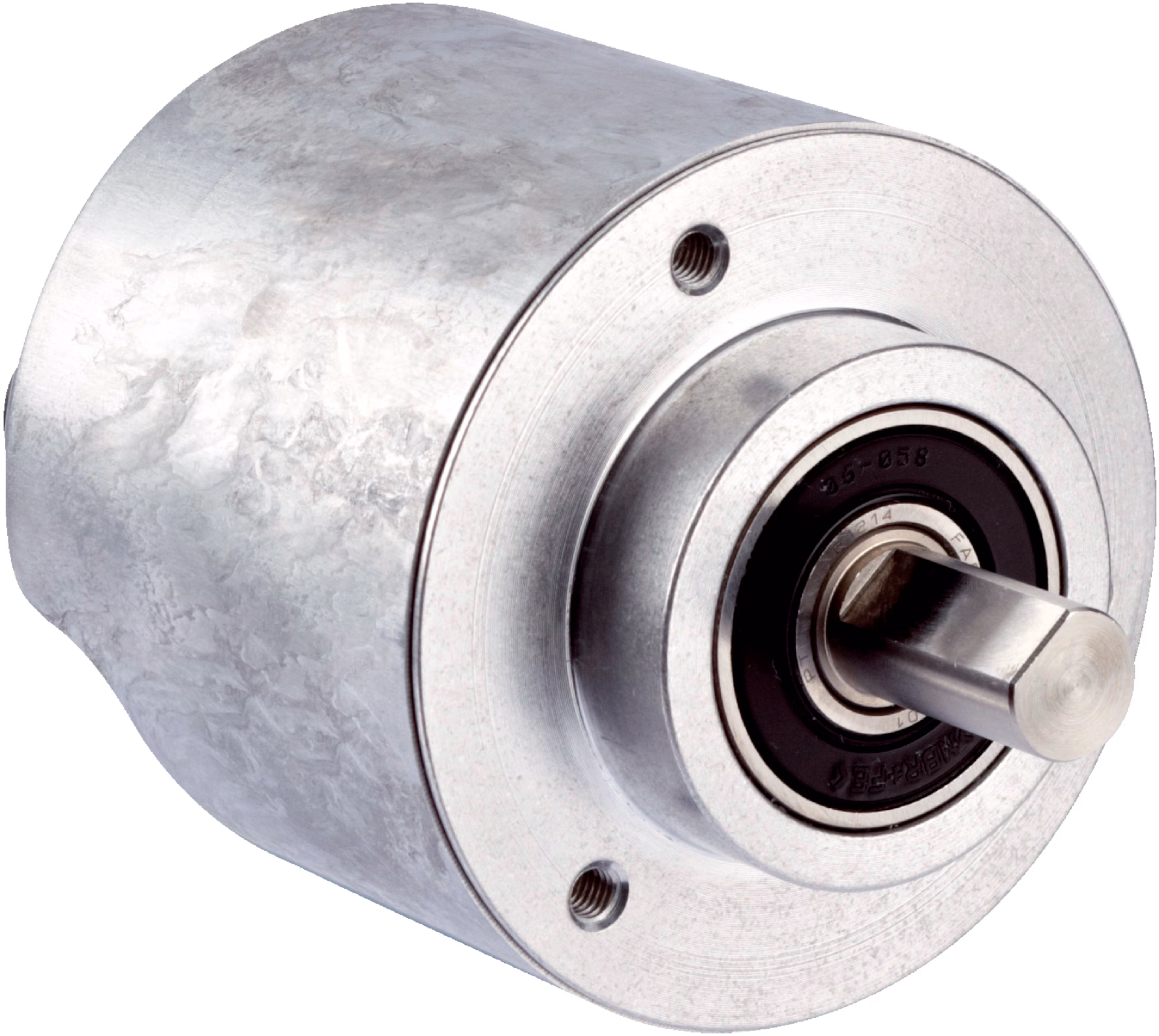

SICK 1055364 / AFS60A-S4IB262144 is an absolute encoder in the AFS/AFM60 Ethernet family. Singleturn or multiturn version: Singleturn; Number of steps per revolution: 262,144 (18 bit); Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat); Communication interface: EtherNet/IP™, programmable; Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial; Programming interface: Over webserver, over PLC-Engineering-Tool.

Manufacturer

Sick

Part number

1055364

Product family

AFS/AFM60 Ethernet

Category

Absolute encoders

Technical details

Number of steps per revolution (max. resolution): 262,144 (18 bit); Supply voltage: 10... 30 V; Communication interface: EtherNet/IP™; Repeatability standard deviation σr: 0.002°; Connection type: Male connector, 1x, M12, 4-pin, axial; Female connector, 2x, M12, 4-pin, axial;; Enclosure rating: IP65, shaft side (IEC 60529); IP67, housing side (IEC 60529); Housing material: Aluminum; Weight: 0.2 kg; MTTFD (mean time to dangerous failure): 80 years (EN ISO 13849-1); Error limits G: 0.03°; Encoder profile: V4.1 class3; Data transmission rate (baud rate): 10 Mbit/s, 100 Mbit/s; Transmission medium: CAT-5e cable; Initialization time: Approx. 10 s

Weight

0.2 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
