1055325

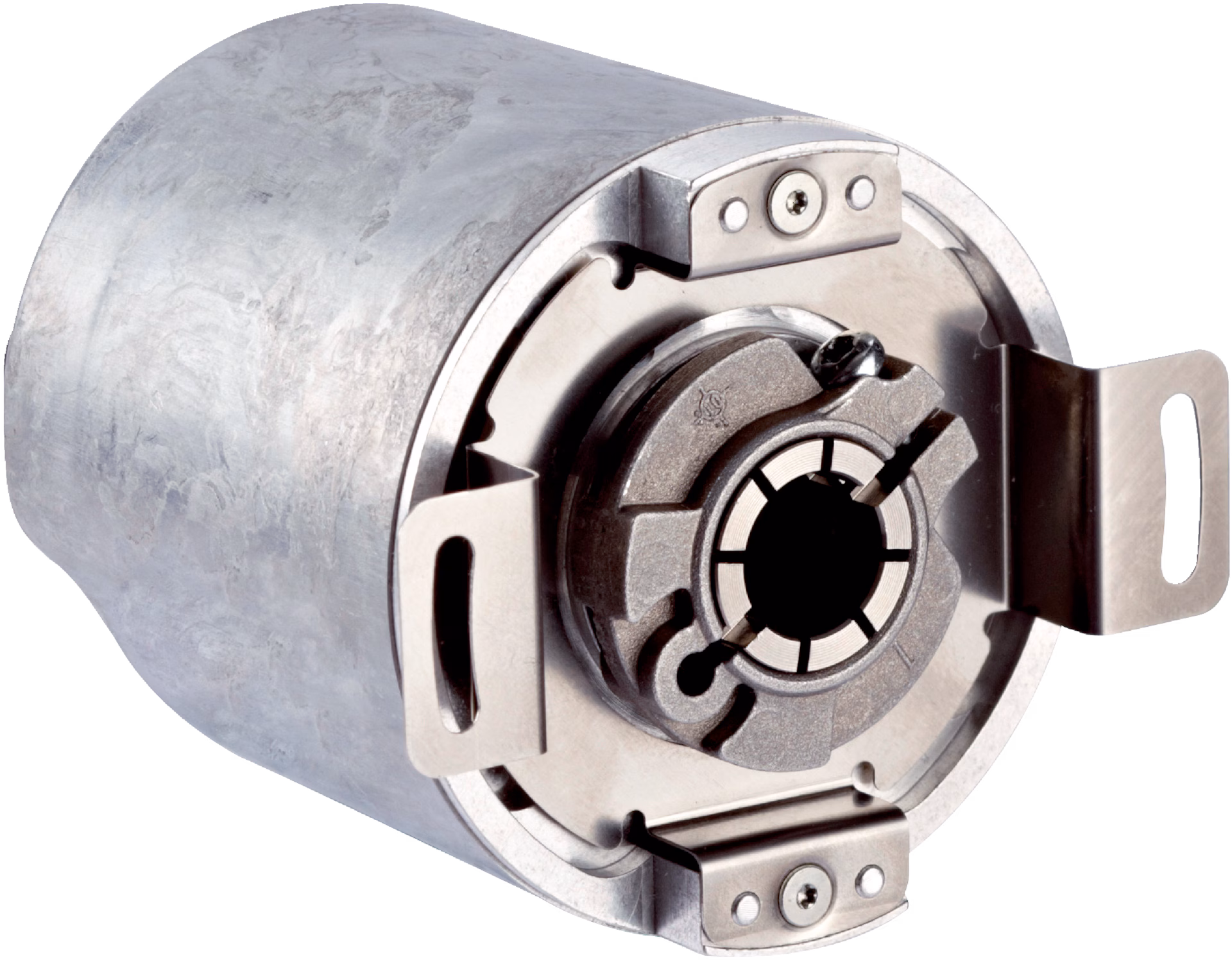

SICK 1055325 / AFM60A-BDIB018x12 is an absolute encoder in the AFS/AFM60 Ethernet family. Singleturn or multiturn version: Multiturn; Max. resolution: 18 bit x 12 bit (262,144 x 4,096); Mechanical design: Blind hollow shaft 10 mm (Front clamp); Communication interface: EtherNet/IP™, programmable; Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial; Programming interface: Over webserver, over PLC-Engineering-Tool.

Manufacturer

Sick

Part number

1055325

Product family

AFS/AFM60 Ethernet

Category

Absolute encoders

Technical details

Number of steps per revolution (max. resolution): 262,144 (18 bit); Max. resolution (number of steps per revolution x number of revolutions): 18 bit x 12 bit (262,144 x 4,096); Supply voltage: 10... 30 V; Communication interface: EtherNet/IP™; Repeatability standard deviation σr: 0.002°; Connection type: Male connector, 1x, M12, 4-pin, axial; Female connector, 2x, M12, 4-pin, axial;; Enclosure rating: IP65, shaft side (IEC 60529); IP67, housing side (IEC 60529); Housing material: Aluminum; Weight: 0.2 kg; MTTFD (mean time to dangerous failure): 80 years (EN ISO 13849-1); Number of revolutions: 4,096 (12 bit); Error limits G: 0.03°; Encoder profile: V4.1 class3; Data transmission rate (baud rate): 10 Mbit/s, 100 Mbit/s

Weight

0.2 kg
