1054705

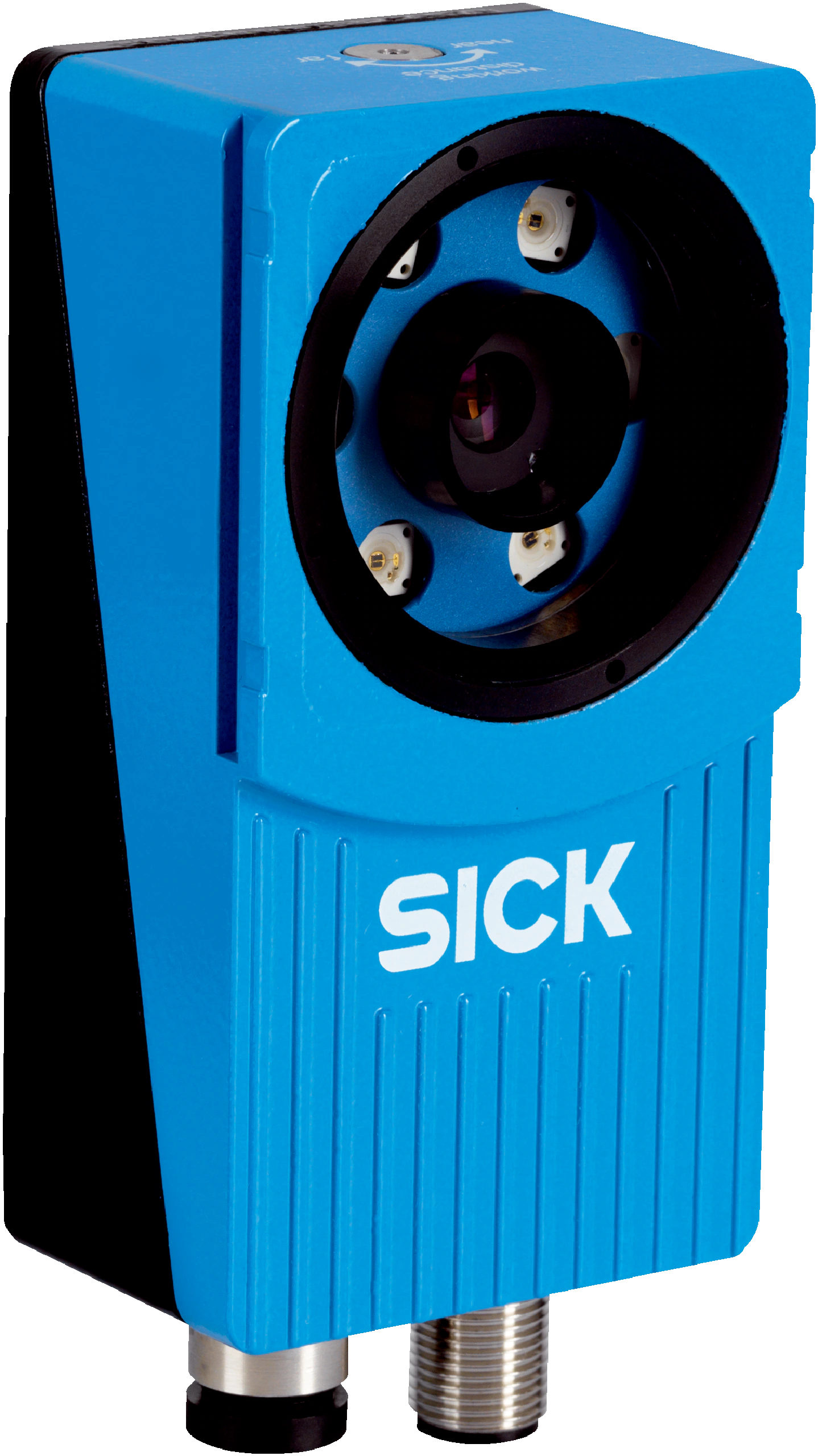

SICK 1054705 / VSPI-4F2411 is an archive in the Inspector family. Machine vision; Product name: Inspector I40-IR; Illumination: Integrated; Illumination color: Infrared; Lens: 10 mm, S-mount; Working distance: ≥ 50 mm; Sensor resolution: 640 px x 480 px (0.3 MP); Sensor: CMOS monochrome; Optical focus: Adjustable focus.

Manufacturer

Sick

Part number

1054705

Product family

Inspector

Category

Archive

Technical details

Working range: ≥ 50 mm; Supply voltage: 24 V DC, ± 20 %; Operator interfaces: Inspector Viewer; Ethernet communication: EtherNet/IP™; Dimensions (L x W x H): 100 mm x 53 mm x 38 mm; Enclosure rating: IP67; Housing material: Aluminum; Ambient operating temperature: 0 °C... +45 °C; Weight: 350 g; Technology: 2D snapshot; Configurable: ✔; Toolkit: Object Locator; Contour; Pixel Counter; Edge Pixel Counter; Pattern; Image sensor: CMOS monochrome; Optical focus: Adjustable focus (manual)

Weight

0.35 kg

Dimensions

100 x 53 x 38
