1054704

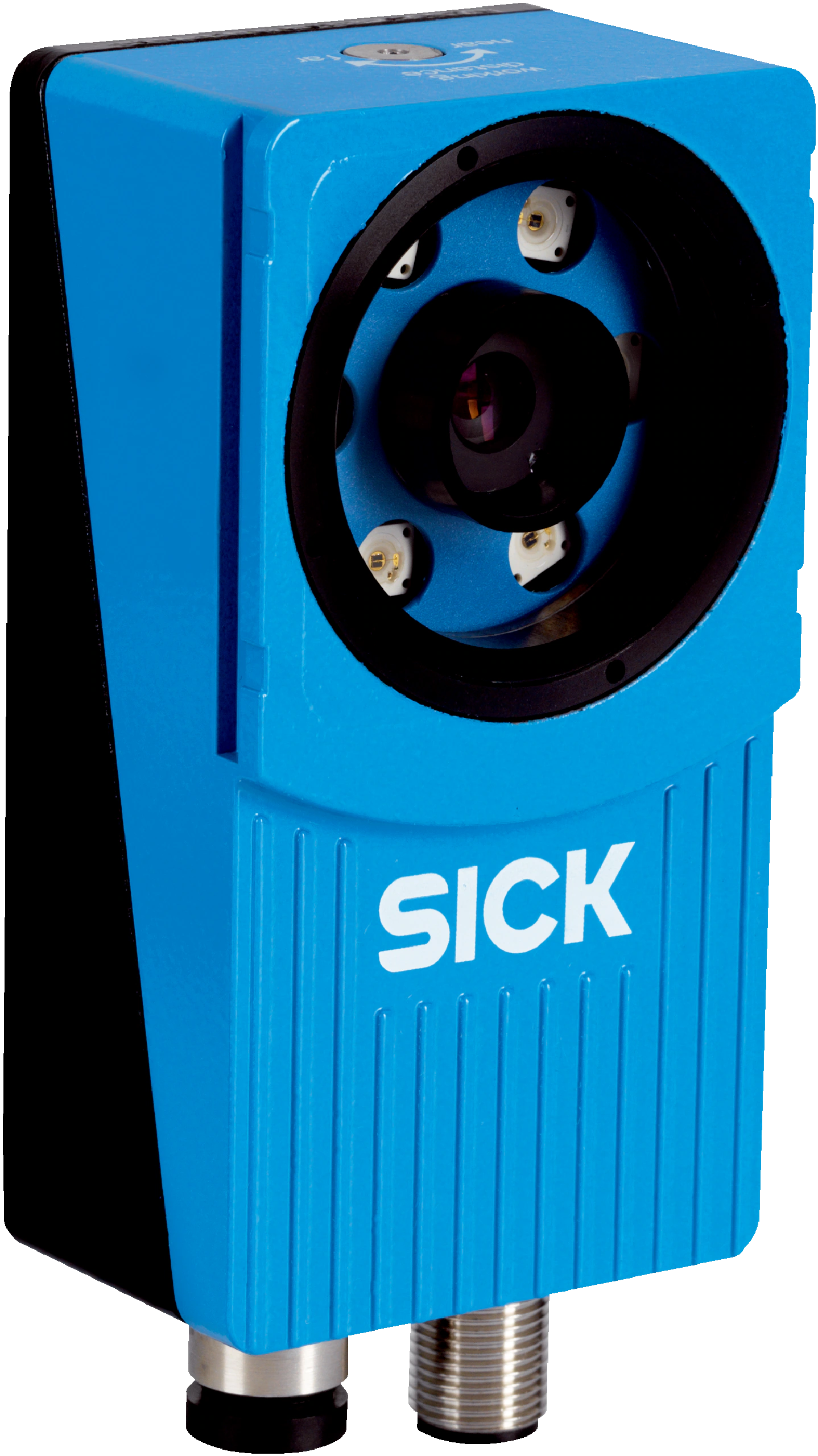

SICK 1054704 / VSPI-2F141 is an archive in the Inspector family. Machine vision; Product name: Inspector I20-IR; Illumination: Integrated; Illumination color: Infrared; Lens: 6 mm, S-mount; Working distance: ≥ 50 mm; Sensor resolution: 384 px x 384 px (0.15 MP); Sensor: CMOS monochrome.

Manufacturer

Sick

Part number

1054704

Product family

Inspector

Category

Archive

Technical details

Working range: ≥ 50 mm; Supply voltage: 24 V DC, ± 20 %; Operator interfaces: Inspector Viewer; Dimensions (L x W x H): 100 mm x 53 mm x 38 mm; Enclosure rating: IP67; Housing material: Aluminum; Ambient operating temperature: 0 °C... +45 °C; Weight: 350 g; Technology: 2D snapshot; Configurable: ✔; Toolkit: Object Locator; Contour; Pixel Counter; Edge Pixel Counter; Image sensor: CMOS monochrome; Operating distance with internal illumination: 50 mm... 200 mm; Field of view of internal illumination: 22 mm x 15 mm... 79 mm x 58 mm

Weight

0.35 kg

Dimensions

100 x 53 x 38
