1045160

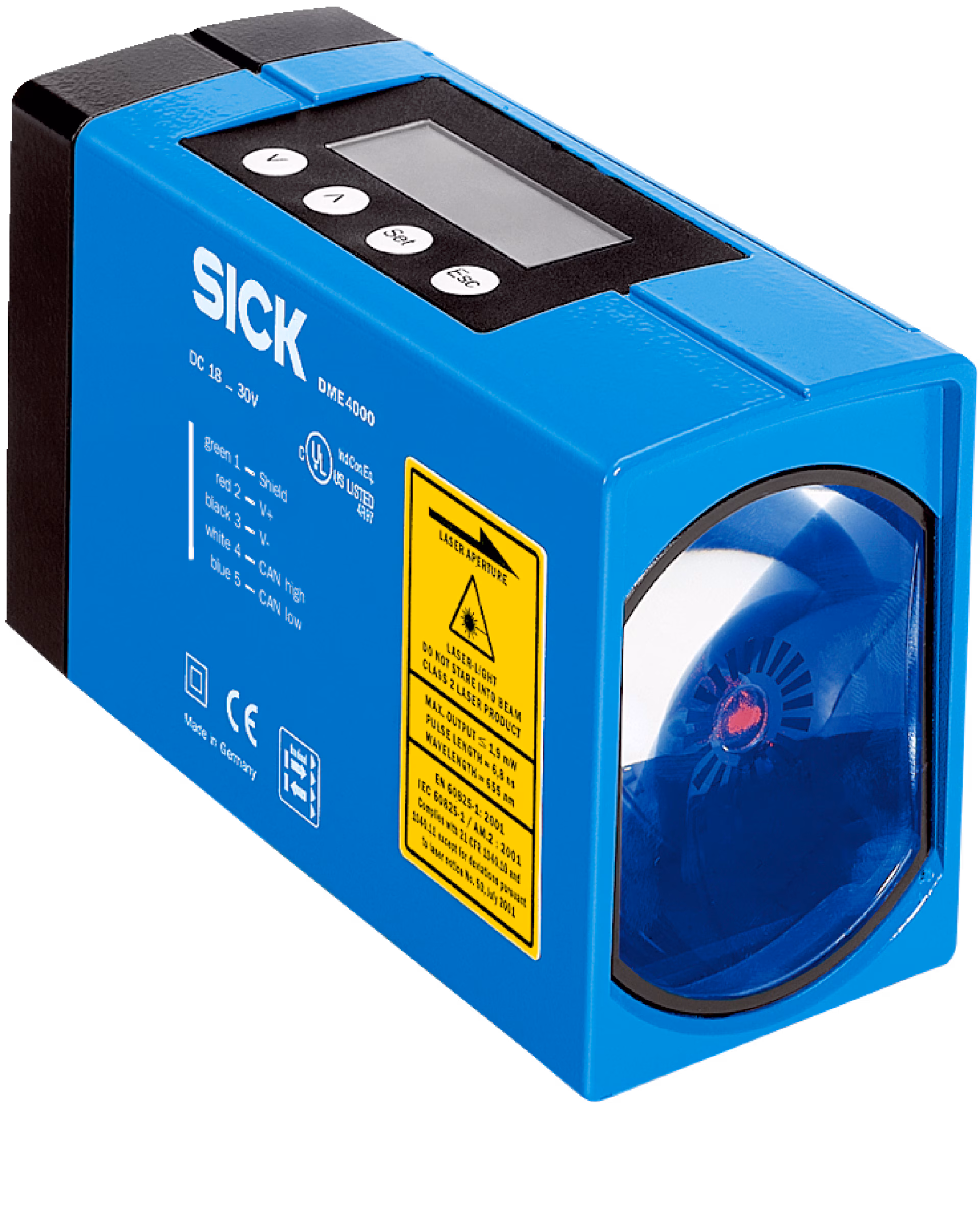

SICK 1045160 / DME4000-211S06 is an archive in the DME4000 family. Laser distance sensors; Note: With mounting adapter for DME5000 bracket; Communication interface: SSI; Measuring range: 0.15 m... 130 m, on “diamond grade” reflective tape; Output time: 1 ms; Repeatability: ≤ 2 mm; Accuracy: ± 5 mm; Current consumption: At 24 V DC < 1,000 mA; Connection type: Male connector, M16, 8-pin.

Manufacturer

Sick

Part number

1045160

Product family

DME4000

Category

Archive

Technical details

Type of light: Visible red light; Supply voltage UB: DC 18 V... 30 V, limit values; Repeatability: ≤ 2 mm; Measurement accuracy: ± 5 mm; Response time: 6 ms; Dimensions (W x H x D): 61 mm x 85 mm x 166 mm; Connection type: Male connector, M16, 8-pin; Enclosure rating: IP65; Housing material: Metal (zinc diecast); Weight: Approx. 1,650 g; Measuring range: 0.15 m... 130 m, on “diamond grade” reflective tape; Target: Reflector; Output time: 1 ms; Emitted beam: Light source Laser, red

Weight

0.00165 kg

Dimensions

61 x 85 x 166
