1029788

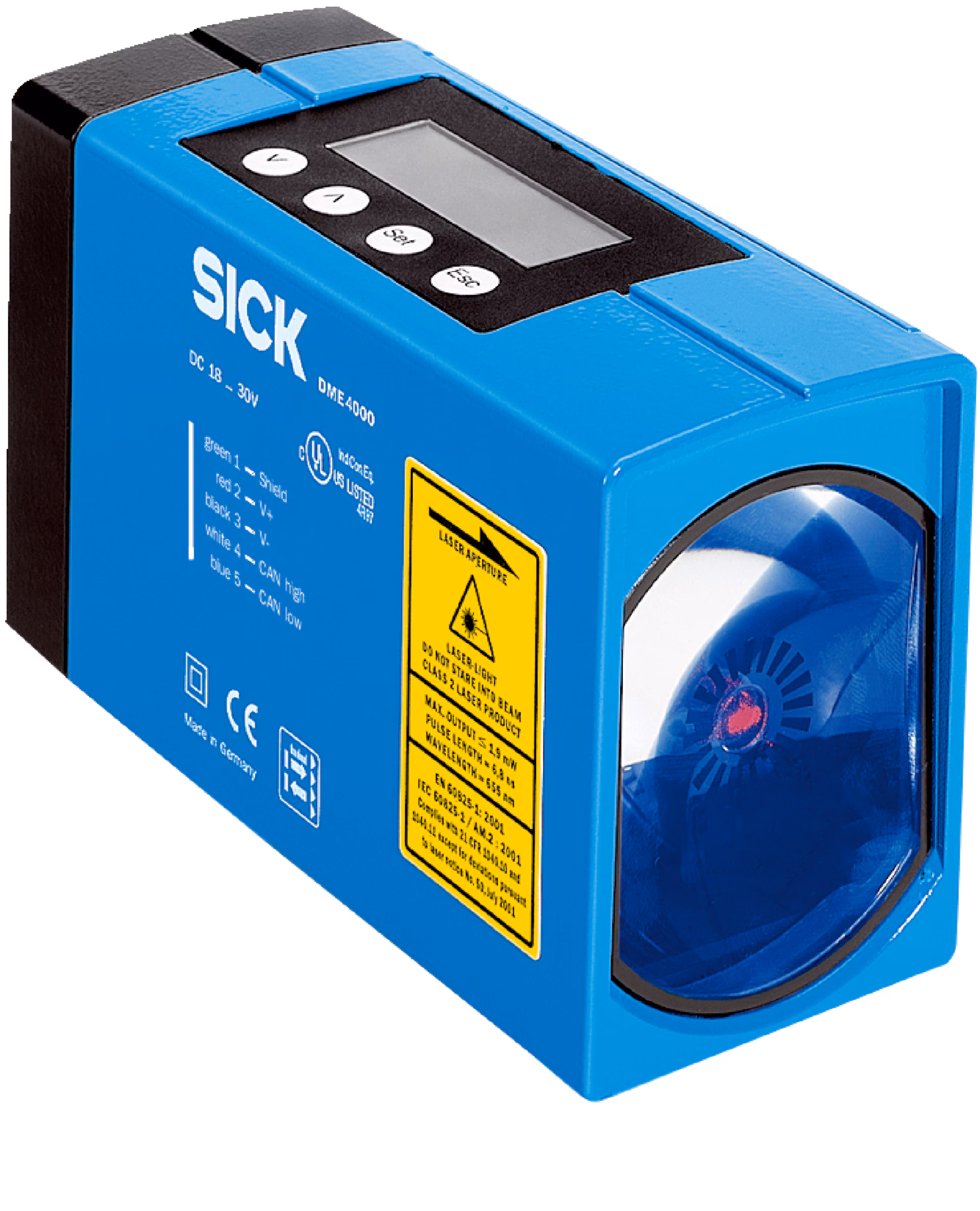

SICK 1029788 / DME4000-112 is an archive in the DME4000 family. Laser distance sensors; Communication interface: PROFIBUS DP; Measuring range: 0.15 m... 50 m, on “diamond grade” reflective tape; Output time: 2 ms; Repeatability: ≤ 1 mm; Accuracy: ± 3 mm; Current consumption: At 24 V DC < 250 mA; Connection type: Male connector, 2 x M12, 5-pin, B-coded, 1 x M16, 8-pin, B-coded.

Manufacturer

Sick

Part number

1029788

Product family

DME4000

Category

Archive

Technical details

Type of light: Visible red light; Resolution: 50 µm... 5,000 µm; Supply voltage UB: DC 18 V... 30 V, limit values; Repeatability: ≤ 1 mm; Measurement accuracy: ± 3 mm; Response time: 6 ms; Dimensions (W x H x D): 61 mm x 85 mm x 166 mm; Connection type: Male connector, 2 x M12, 5-pin, B-coded, 1 x M16, 8-pin, B-coded; Enclosure rating: IP65; Housing material: Metal (zinc diecast); Weight: Approx. 1,650 g; Measuring range: 0.15 m... 50 m, on “diamond grade” reflective tape; Target: Reflector; Output time: 2 ms

Weight

0.00165 kg

Dimensions

61 x 85 x 166

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
