1041994

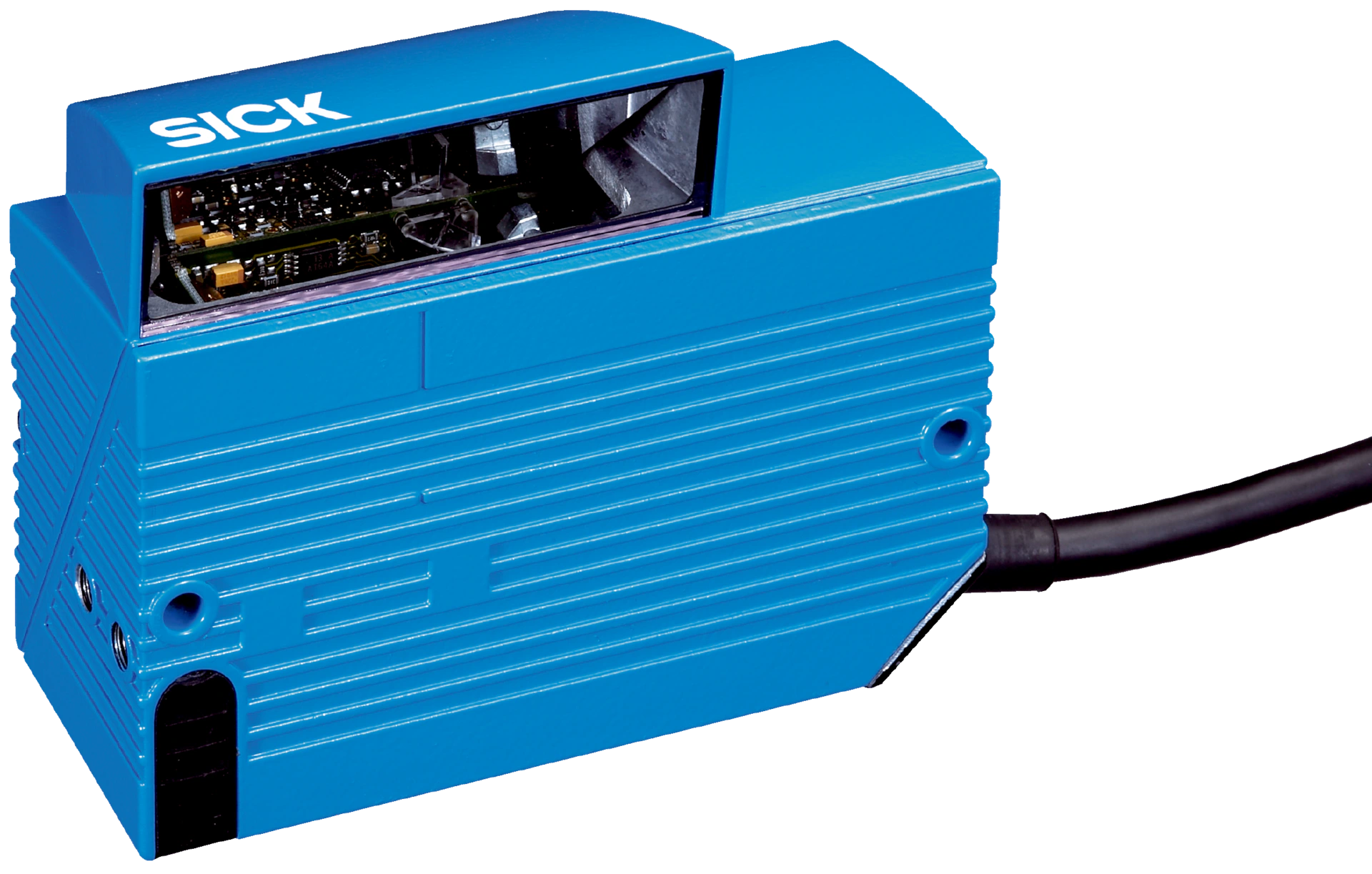

SICK 1041994 / CLV632-3000 is a fixed mount barcode scanner in the CLV63x family. Optical focus: Fixed focus; Communication interface: PROFINET, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP; Type: Cable connection variant; Max. reading distance: 256 mm; Code resolution: 0.2 mm... 0.5 mm; Code printing process: Label (printed codes); Sensor type: Raster scanner; Window material: Glass; Cold storage applications: no; Enclosure rating: IP65.

Manufacturer

Sick

Part number

1041994

Product family

CLV63x

Category

Fixed mount barcode scanners

Technical details

Code resolution: 0.2 mm... 0.5 mm; Supply voltage: 18 V DC... 30 V DC; Dimensions (L x W x H): 80 mm x 96 mm x 38 mm; Connection type: Cable; Enclosure rating: IP65 (EN 60529); Housing material: Aluminum die cast; Ambient operating temperature: 0 °C... +40 °C; Weight: 340 g, with connecting cable; Version: Short Range; Reading field: Side (105°); Sensor type: Raster scanner; Optical focus: Fixed focus; Light source: Light spot, laser, Visible, Red, 655 nm; Light spot: Circular

Weight

0.34 kg

Dimensions

80 x 96 x 38

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
