1041976

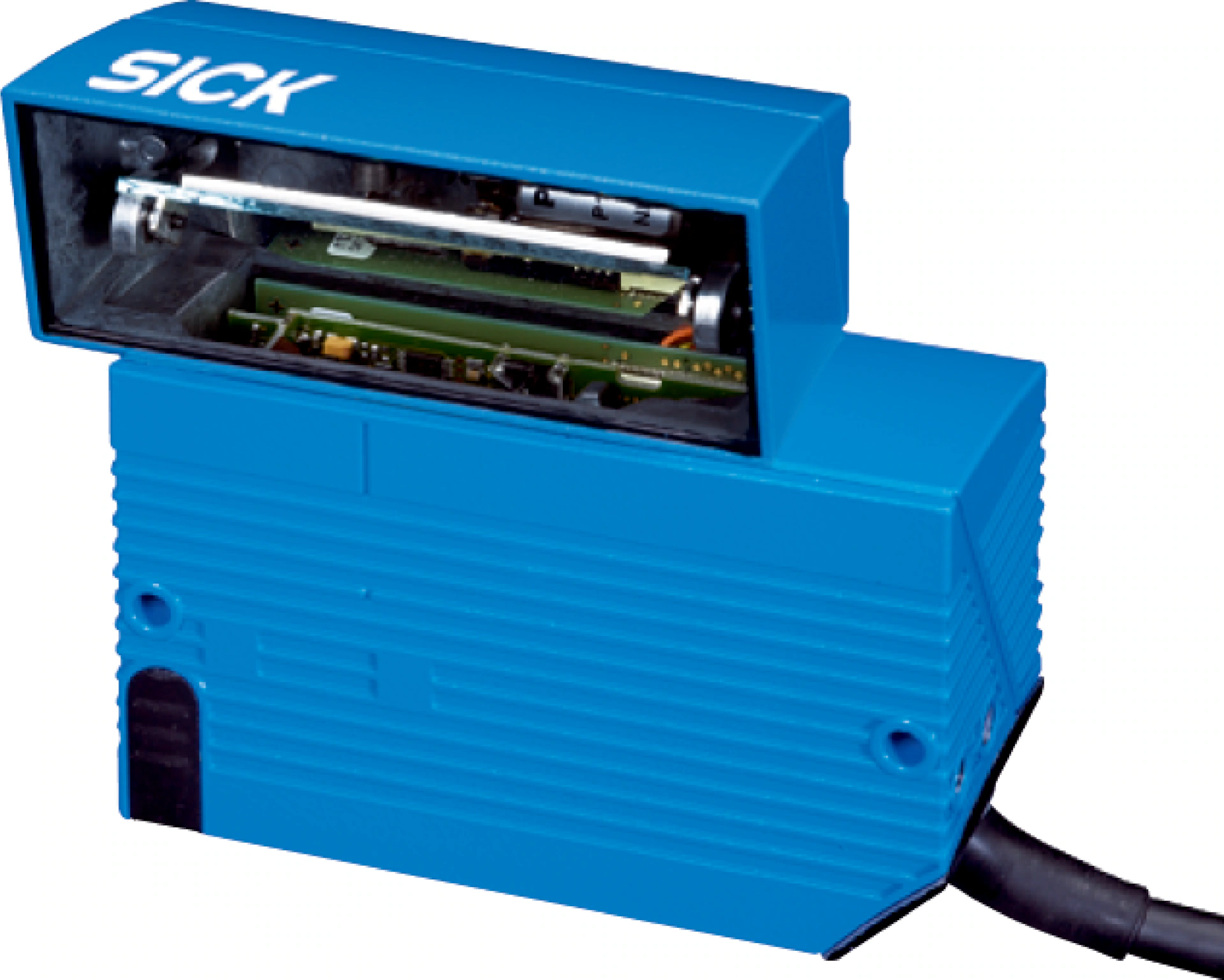

SICK 1041976 / CLV630-6000 is a fixed mount barcode scanner in the CLV63x family. Optical focus: Fixed focus; Communication interface: PROFINET, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP; Type: Cable connection variant; Max. reading distance: 659 mm; Code resolution: 0.35 mm... 1 mm; Code printing process: Label (printed codes); Sensor type: Line scanner; Window material: Glass; Cold storage applications: no; Enclosure rating: IP65.

Manufacturer

Sick

Part number

1041976

Product family

CLV63x

Category

Fixed mount barcode scanners

Technical details

Code resolution: 0.35 mm... 1 mm; Supply voltage: 18 V DC... 30 V DC; Dimensions (L x W x H): 95 mm x 107 mm x 41 mm; Connection type: Cable; Enclosure rating: IP65 (EN 60529); Housing material: Aluminum die cast; Ambient operating temperature: 0 °C... +40 °C; Weight: 420 g, with connecting cable; Version: Long Range; Reading field: Oscillating mirror; Sensor type: Line scanner; Optical focus: Fixed focus; Light source: Light spot, laser, Visible, Red, 655 nm; Light spot: Circular

Weight

0.42 kg

Dimensions

95 x 107 x 41
