1037095

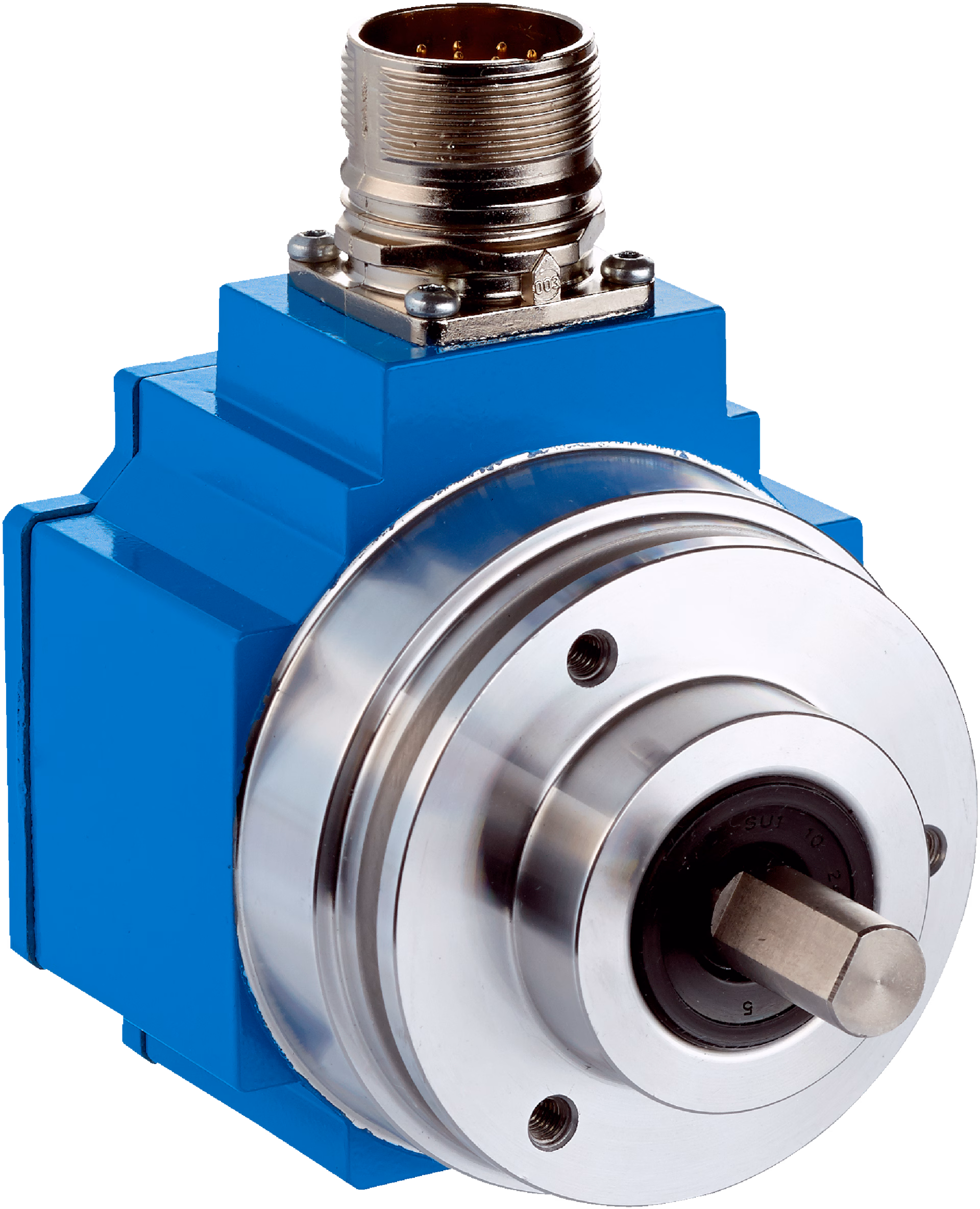

SICK 1037095 / SRM50-HWA0-K21 is a motor feedback system in the SRS/SRM50 family. Communication interface: HIPERFACE®; Model: Absolute Multiturn; Type: Stand-alone; Sine/cosine periods per revolution: 1,024; Safety system: no; Mechanical design: Solid shaft, face mount flange; Connection type: Male connector, M23, 12-pin, radial; Technology: Optical; Operating temperature range: –30 °C... +85 °C.

Manufacturer

Sick

Part number

1037095

Product family

SRS/SRM50

Category

Motor feedback systems

Technical details

Supply voltage: 7 V DC... 12 V DC; Recommended supply voltage: 8 V DC; Communication interface: HIPERFACE®; System accuracy: ± 52 ″; Dimensions: See dimensional drawing; Connection type: Male connector, M23, 12-pin, radial; Enclosure rating: IP65, with mating plug inserted (IEC 60529); Weight: ≤ 0.2 kg; MTTFD (mean time to dangerous failure): 235 years (EN ISO 13849); Sine/cosine periods per revolution: 1,024; Number of the absolute ascertainable revolutions: 4,096; Total number of steps: 134,217,728; Measuring step: 0.3 ″ For interpolation of the sine/cosine signals with, e. g., 12 bits; Integral non-linearity: Typ. ± 45 ″, Error limits for evaluating sine/cosine period

Weight

0.2 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
