1037059

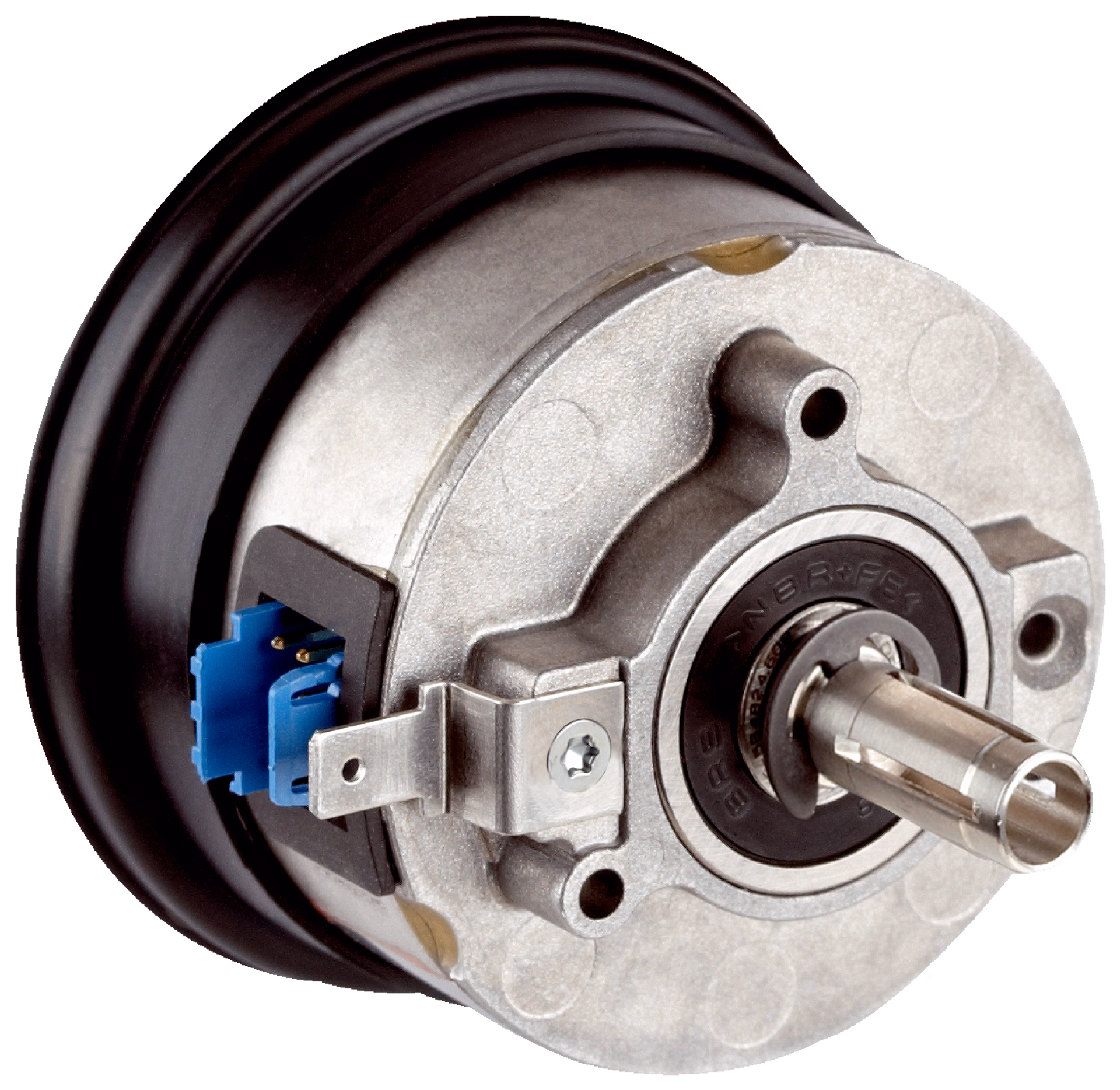

SICK 1037059 / SRS50-HAA0-K21 is a motor feedback system in the SRS/SRM50 family. Communication interface: HIPERFACE®; Model: Absolute Singleturn; Type: For integration; Sine/cosine periods per revolution: 1,024; Safety system: no; Mechanical design: Plug-in shaft, Rubber support; Connection type: Male connector, 8-pin, radial; Technology: Optical; Operating temperature range: –30 °C... +115 °C; Items supplied: Mounting screws for stator coupling or servo clamps not included with delivery.

Manufacturer

Sick

Part number

1037059

Product family

SRS/SRM50

Category

Motor feedback systems

Technical details

Supply voltage: 7 V DC... 12 V DC; Recommended supply voltage: 8 V DC; Communication interface: HIPERFACE®; System accuracy: ± 52 ″; Dimensions: See dimensional drawing; Connection type: Male connector, 8-pin, radial; Enclosure rating: IP40, with mating plug inserted (IEC 60529); Weight: ≤ 0.2 kg; Items supplied: Mounting screws for stator coupling or servo clamps not included with delivery.; MTTFD (mean time to dangerous failure): 235 years (EN ISO 13849); Sine/cosine periods per revolution: 1,024; Number of the absolute ascertainable revolutions: 1; Total number of steps: 32,768; Measuring step: 0.3 ″ For interpolation of the sine/cosine signals with, e. g., 12 bits

Weight

0.2 kg
