1034302

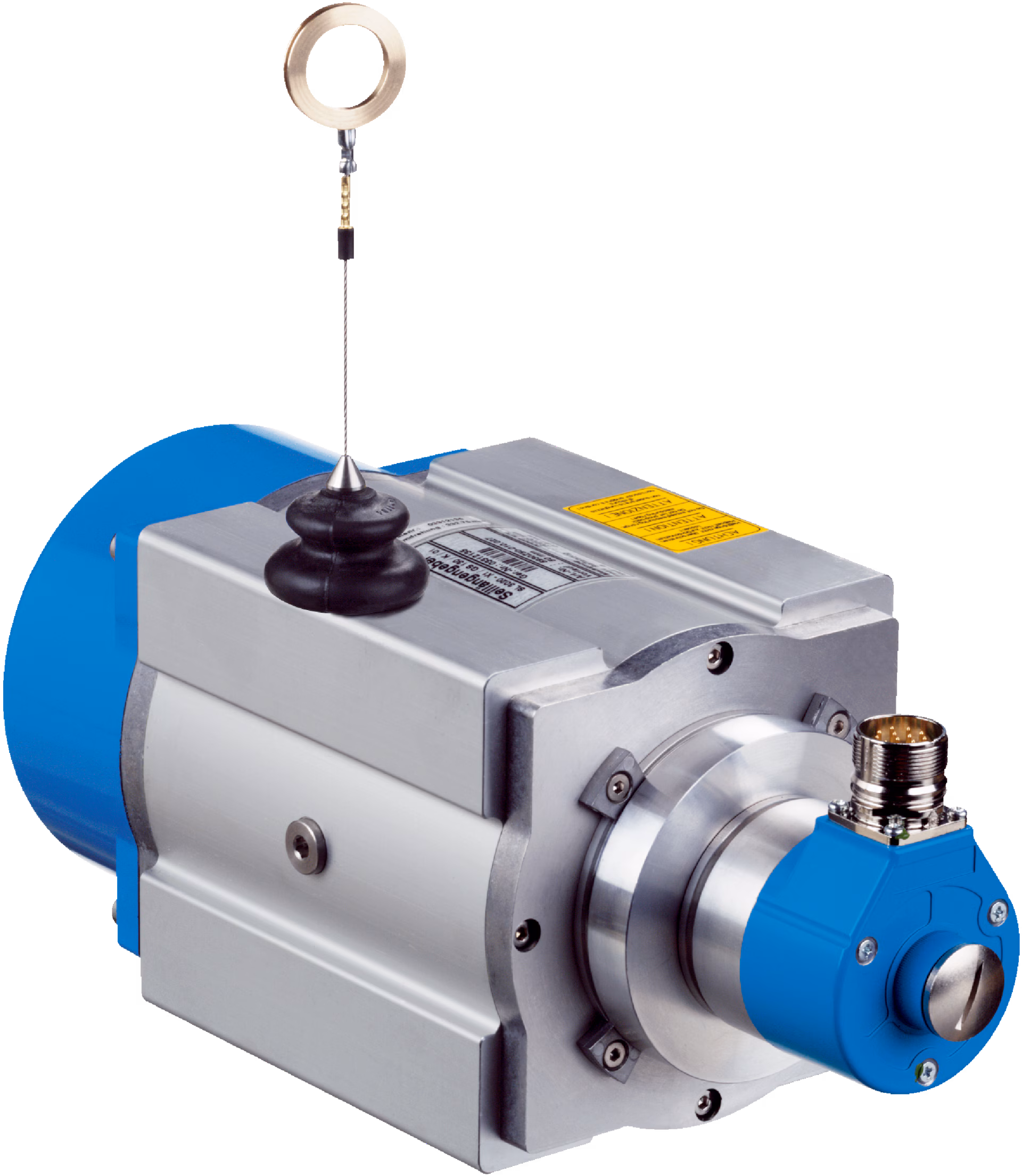

SICK 1034302 / BTF13-A1AM2020 is an archive in the HighLine family. Wire draw encoders; Measuring range: 0 m... 20 m; Communication interface: SSI; Supply voltage: 10 V... 32 V; Connection type: Male connector, M23, 12-pin, radial; Mounted encoder: ATM60 SSI, ATM60-A1A0-K20, 1034295; Mounted mechanic: MRA-F130-120D1, 6028628; Programmable/configurable: yes.

Manufacturer

Sick

Part number

1034302

Product family

HighLine

Category

Archive

Technical details

Measurement range: 0 m... 20 m; Resolution (wire draw + encoder): 0.05 mm; Supply voltage: 10 V... 32 V; Communication interface: SSI; Repeatability: ≤ 2 mm; Connection type: Male connector, M23, 12-pin, radial; Enclosure rating: IP64, mounted mechanic; Housing material, wire draw mechanism: Aluminum (anodised), plastic; Weight: 5.5 kg; MTTFD (mean time to dangerous failure): 150 years (EN ISO 13849-1); Encoder: Absolute encoders; Linearity: ≤ ± 2 mm; Hysteresis: ≤ 5 mm; Programmable/configurable: ✔

Weight

5.5 kg
