1031773

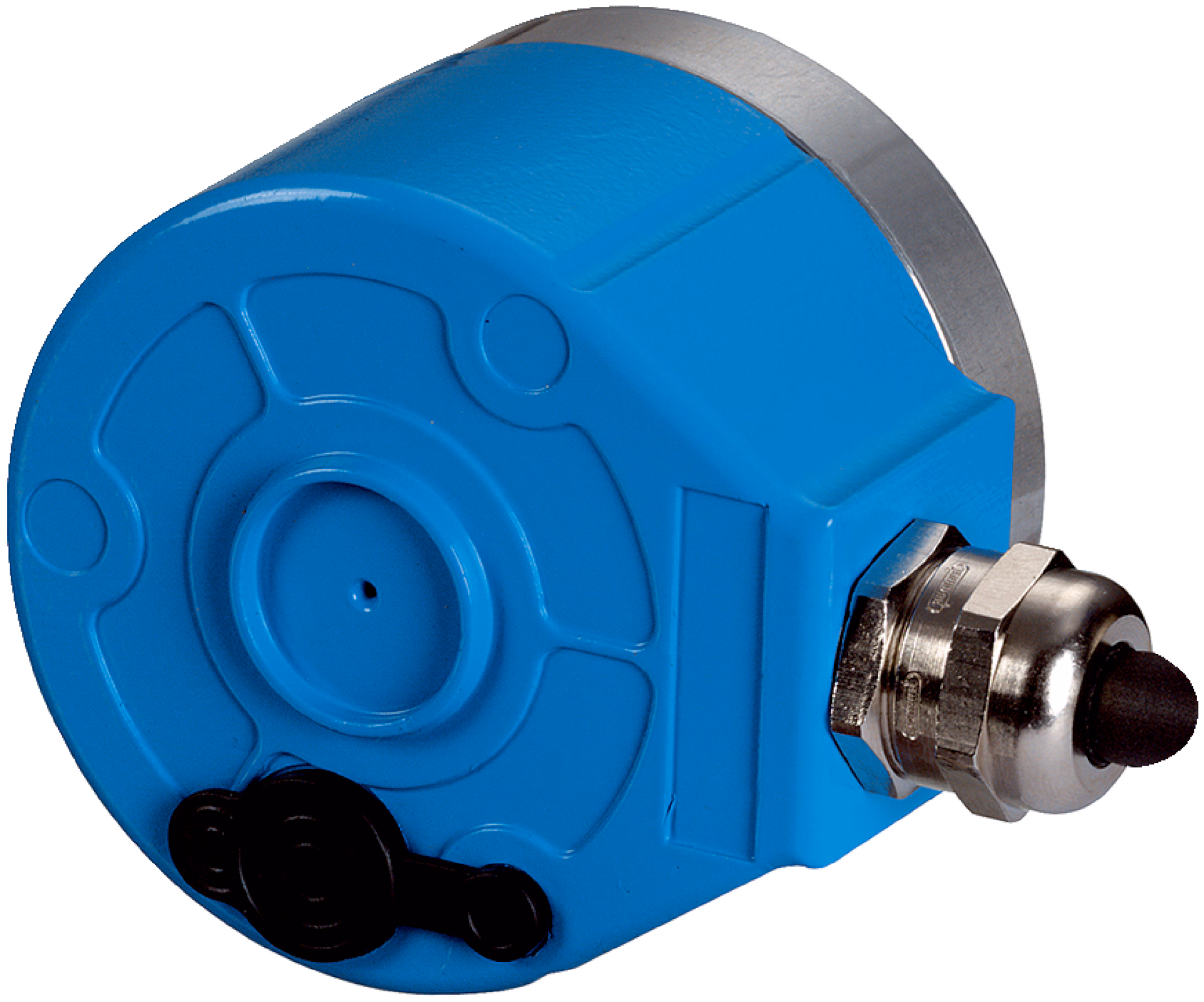

SICK 1031773 / ARS60-F4K32768 is an absolute encoder in the ARS60 family. Singleturn or multiturn version: Singleturn; Number of steps per revolution: 32,768 (15 bit); Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat); Communication interface: Parallel data world; Connection type: Cable, 22-wire, radial, 1.5 m.

Manufacturer

Sick

Part number

1031773

Product family

ARS60

Category

Absolute encoders

Technical details

Number of steps per revolution (max. resolution): 32,768 (15 bit); Supply voltage: 10... 32 V; Communication interface: Parallel data world; Repeatability standard deviation σr: 0.005°; Connection type: Cable, 22-wire, radial, 1.5 m; Enclosure rating: IP66, cable (IEC 60529); Housing material: Aluminum die cast; Weight: Approx. 0.3 kg; MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1); Measuring step: 360° /number of steps; Measuring step deviation: 0.005° binary number of steps; Error limits G: 0.035° (binary number of steps); Initialization time: 80 ms; Code type: Gray

Weight

0.3 kg
