1026244

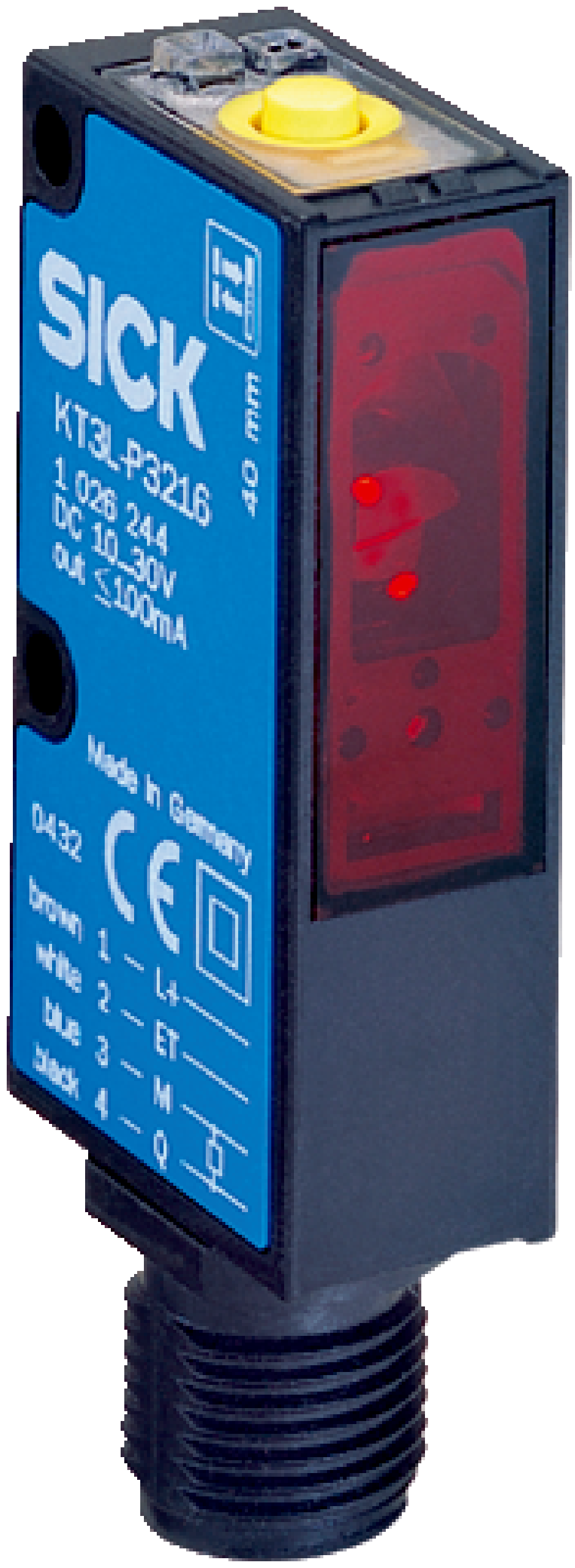

SICK 1026244 / KT3L-P3216 is an archive in the KT3 family. Contrast sensors; Light source: Laser; Sensing distance: 40 mm; Switching output: PNP; Light spot size: 1 mm x 2 mm; Light spot direction: Vertical; Connection type Detail: Male connector M12, 4-pin; Adjustment: Teach-in button; Teach-in mode: Static 2-point teach-in; Housing material: Plastic.

Manufacturer

Sick

Part number

1026244

Product family

KT3

Category

Archive

Technical details

Supply voltage: 10 V DC... 30 V DC; Switching output: PNP; Switching output (voltage): PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V; Response time: 400 µs; Dimensions (W x H x D): 12 mm x 40 mm x 22 mm; Connection type: Male connector M12, 4-pin; Enclosure rating: IP67; Housing material: ABS; Ambient operating temperature: –10 °C... +45 °C; Weight: + 11 g; Housing design: Middle; Light source: Laser, visible red light; Light spot size: 1 mm x 2 mm; Light spot direction: Vertical

Weight

0.011 kg

Dimensions

12 x 40 x 22
