1022048

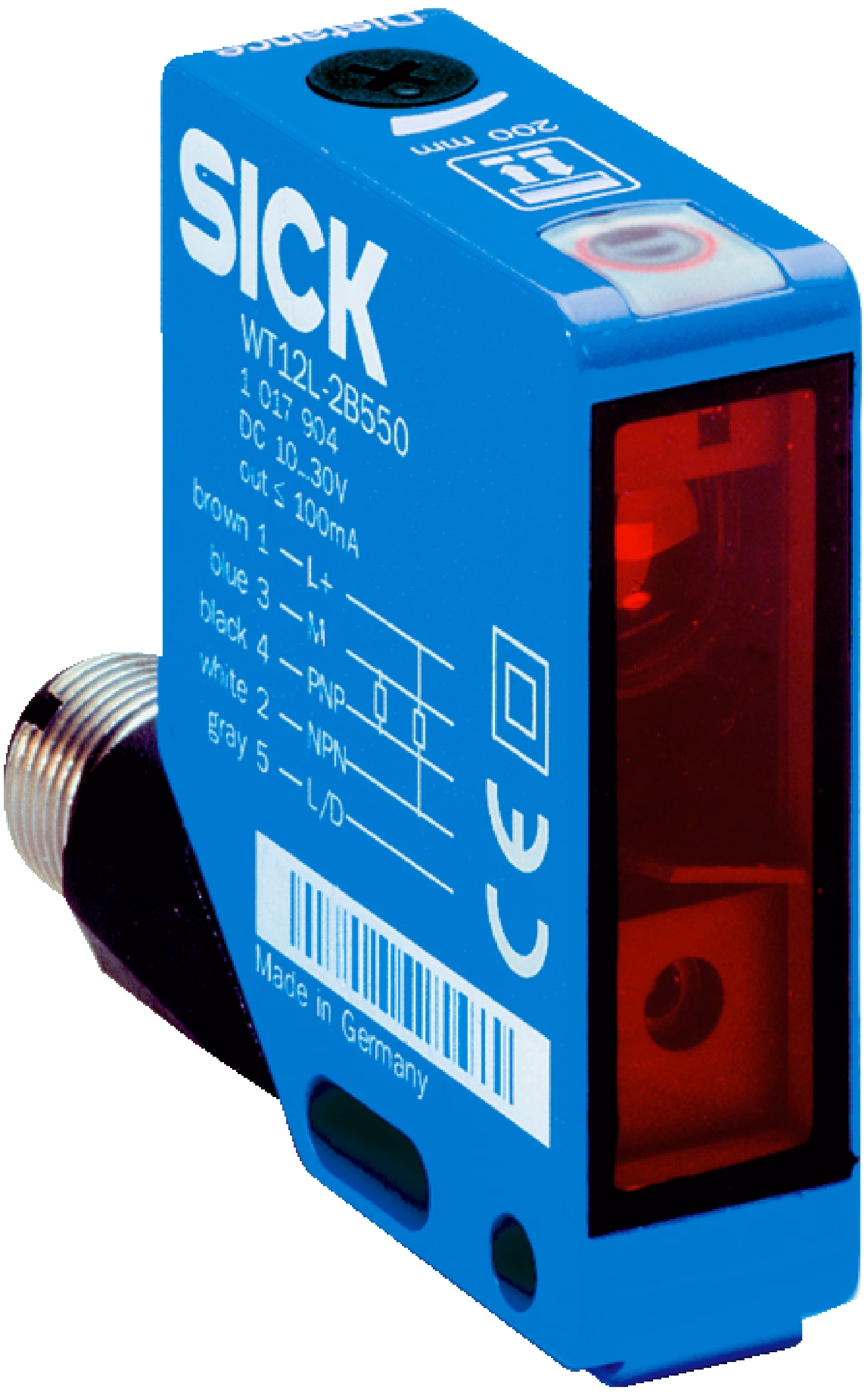

SICK 1022048 / WT12L-2B550A02 is a photoelectric sensor in the W12 family. W12-2 Laser; Sensing range max.: 50 mm... 290 mm; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression; Switching output: PNP, NPN; Switching mode: Light/dark switching; Connection type: Plug, M12, 5-pin; Light source: Laser; Type of light: Visible red light; Laser class: 2; Adjustment: Potentiometer; Housing: Rectangular; Focus position: 100 mm.

Manufacturer

Sick

Part number

1022048

Product family

W12

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range max.: 50 mm... 290 mm; Supply voltage UB: 10 V DC... 30 V DC; Response time: ≤ 200 µs; Dimensions (W x H x D): 15 mm x 49 mm x 41.5 mm; Enclosure rating: IP67; Ambient operating temperature: –10 °C... +50 °C; Weight: 130 g; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression; Emitted beam: Light source Laser; Light spot size (distance): Ø 0.3 mm (180 mm); Focus position: 100 mm; Key laser figures: Normative reference EN 60825-1:2014, IEC 60825-1:2007

Weight

0.13 kg

Dimensions

15 x 49 x 41.5
