1018473

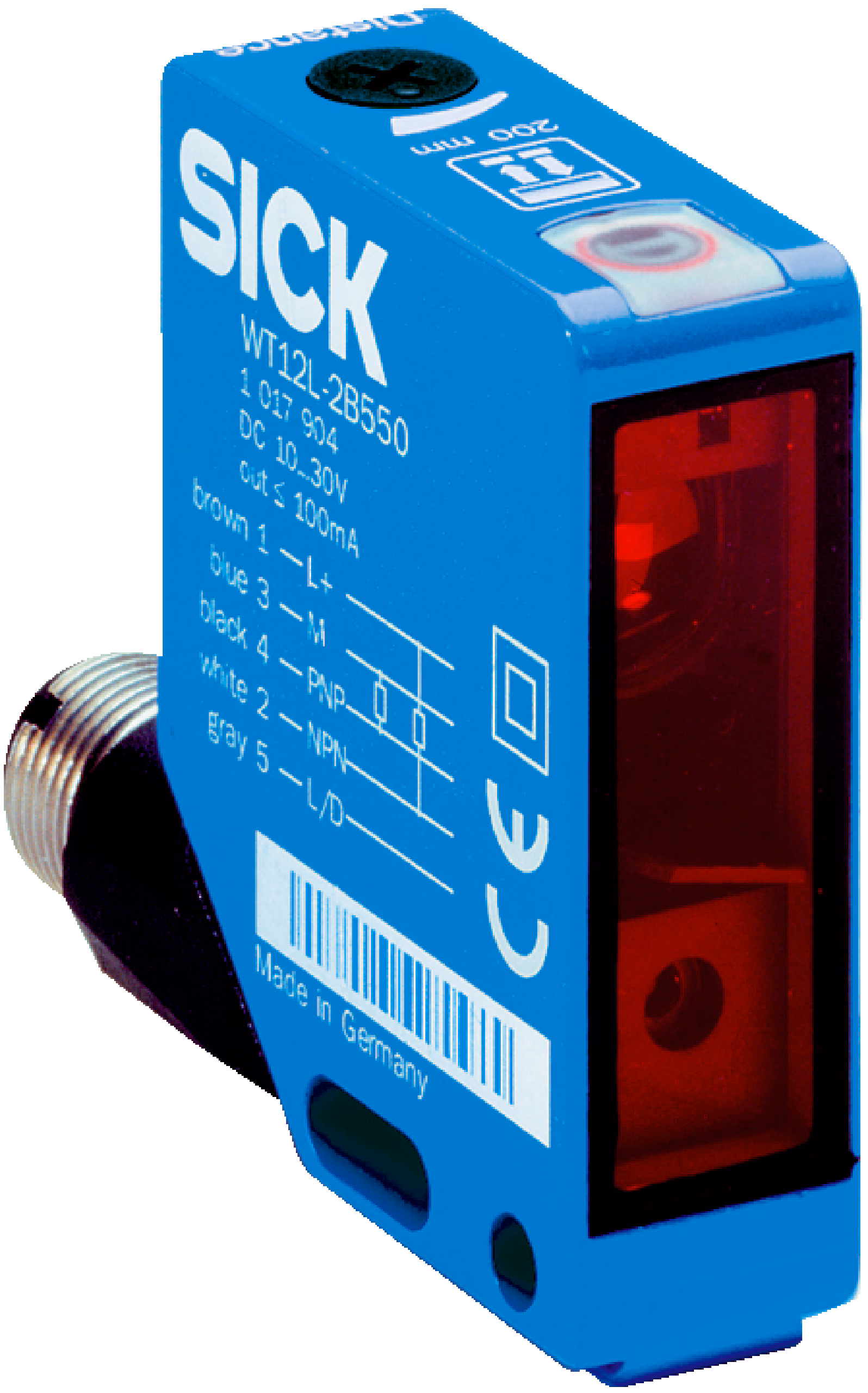

SICK 1018473 / WT12L-2B550A01 is a photoelectric sensor in the W12 family. W12-2 Laser; Sensing range max.: 30 mm... 200 mm; Functional principle: Photoelectric proximity sensor; Switching output: PNP, NPN; Switching mode: Light switching, Dark switching; Connection type: Plug, M12, 5-pin; Light source: Laser; Type of light: Visible red light; Laser class: 2; Adjustment: Potentiometer; Housing: Rectangular; Focus position: 100 mm.

Manufacturer

Sick

Part number

1018473

Product family

W12

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range max.: 30 mm... 200 mm; Supply voltage UB: 10 V DC... 30 V DC; Dimensions (W x H x D): 15 mm x 49 mm x 41.5 mm; Enclosure rating: IP67; Ambient operating temperature: –10 °C... +50 °C; Weight: 130 g; Functional principle: Photoelectric proximity sensor; Emitted beam: Light source Laser; Light spot size (distance): Ø 0.2 mm (100 mm); Focus position: 100 mm; Key laser figures: Normative reference EN 60825-1:2014, IEC 60825-1:2007; Laser class: 2; Key LED figures: Wave length 650 nm

Weight

0.13 kg

Dimensions

15 x 49 x 41.5
