XMLR400M1P25

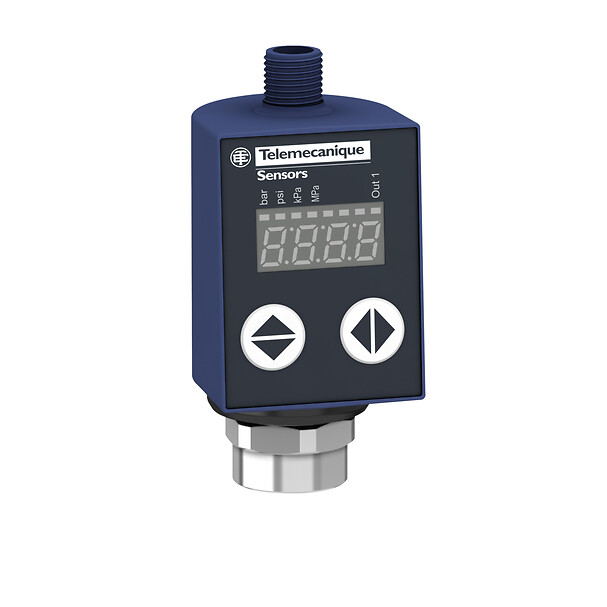

Schneider Electric XMLR400M1P25: Electronic pressure sensors, Pressure sensors XM, XMLR 400 bar, G 1/4, 24 VDC, 4...20 mA, PNP, M12.

Manufacturer

Schneider Electric

Part number

XMLR400M1P25

Product family

Telemecanique Pressure sensors XM

Category

Sensors & Switches

Technical details

Range: Telemecanique Pressure sensors XM; Product or component type: Electronic pressure sensors; Discrete output type: Solid state PNP, NO/NC programmable; Electrical connection: Male connector M12, 4 pins; [Us] rated supply voltage: 24 V DC SELV (voltage limits: 17-33 V); IP degree of protection: IP65 conforming to IEC 60529, IP67 conforming to IEC 60529; Contacts type and composition: NO/NC programmable; Pressure sensor type: Pressure transmitter; Pressure switch type of operation: Pressure transmitter with 1 switching output; Device short name: XMLR; Controlled fluid: Fresh water (0-80 °C), air (-20-80 °C), hydraulic oil (-20-80 °C), refrigeration fluid (-20-80 °C); Fluid connection type: G 1/4 (female) conforming to DIN 3852-Y; Current consumption: <= 50 mA; Analogue output function: 4...20 mA; Official designation: Electronic pressure sensors, Pressure sensors XM, XMLR 400 bar, G 1/4, 24 VDC, 4...20 mA, PNP, M12

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
