XBTR400

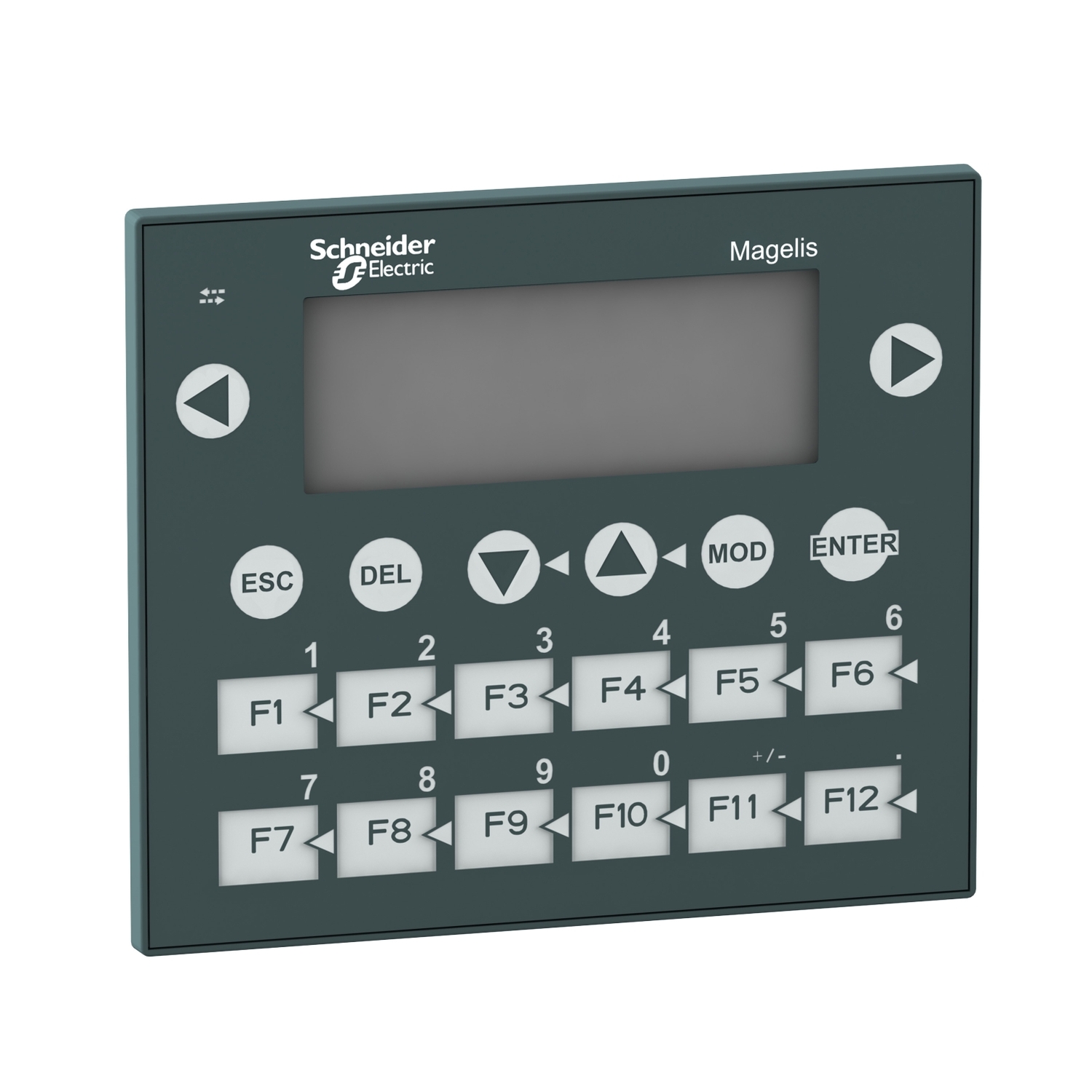

Schneider Electric XBTR400: This product is part of the Magelis XBT R range, an offer of HMI small panels. It comes a keypad and matrix backlit green LCD display with a resolution of 122 x 32 pixels. The display supports 4 lines of 20 characters maximum and 1 line of 5 characters minimum. The HMI small panel provides operators enhanced text and image display, utilising graphic objects for display flexibility. It supports Vijeo Designer Lite configuration software and Windows operating system with 512kB flash memory and Latin, Chinese (simplified), Greek, Cyrillic, Katakana character fonts. It is equipped with female RJ45, asynchronous transmission mode (RS232C/RS485) point-to-point topology serial link integrated connections. It is an IP20/IP65 and NEMA 4X rated product. This keypad is made of polyester and front material is PPT. Its dimensions are 137mm (width) x 78mm (depth) x 118mm (height) and weighs 0.55kg. This product is certified by CE, ATEX, UL and CSA. It meets UL 508, IEC 60068-2-27, IEC 60068-2-6, IEC 61131-2 and CSA C22.2 No 14 standards. This product is compatible with Modicon Premium, Modicon M340, Twido, Modicon TSX Micro and Modicon Quantum. The Magelis XBT N, R, RT range brings you convenience and ease of use, with a compact product, touch screen features and semi-graphic display suitable for small machines. Display text messages, utilize semi-graphic screen, perform diagnostics, control and adjust your control system devices and deliver big things for your business.

Manufacturer

Schneider Electric

Part number

XBTR400

Product family

Modicon M340

Category

PLCs & Controllers

Technical details

Range: Modicon M340; Voltage: 5V DC; Published sizes: 137mm, 78mm, 118mm; Ingress protection: IP20, IP65; Poles / contacts: 2 No; Connection / thread: M340; Colour: green; Material: polyester; Official designation: Small panel with keypad, matrix screen, green, 122 x 32 pixels, 5V DC
