XB7NS9444

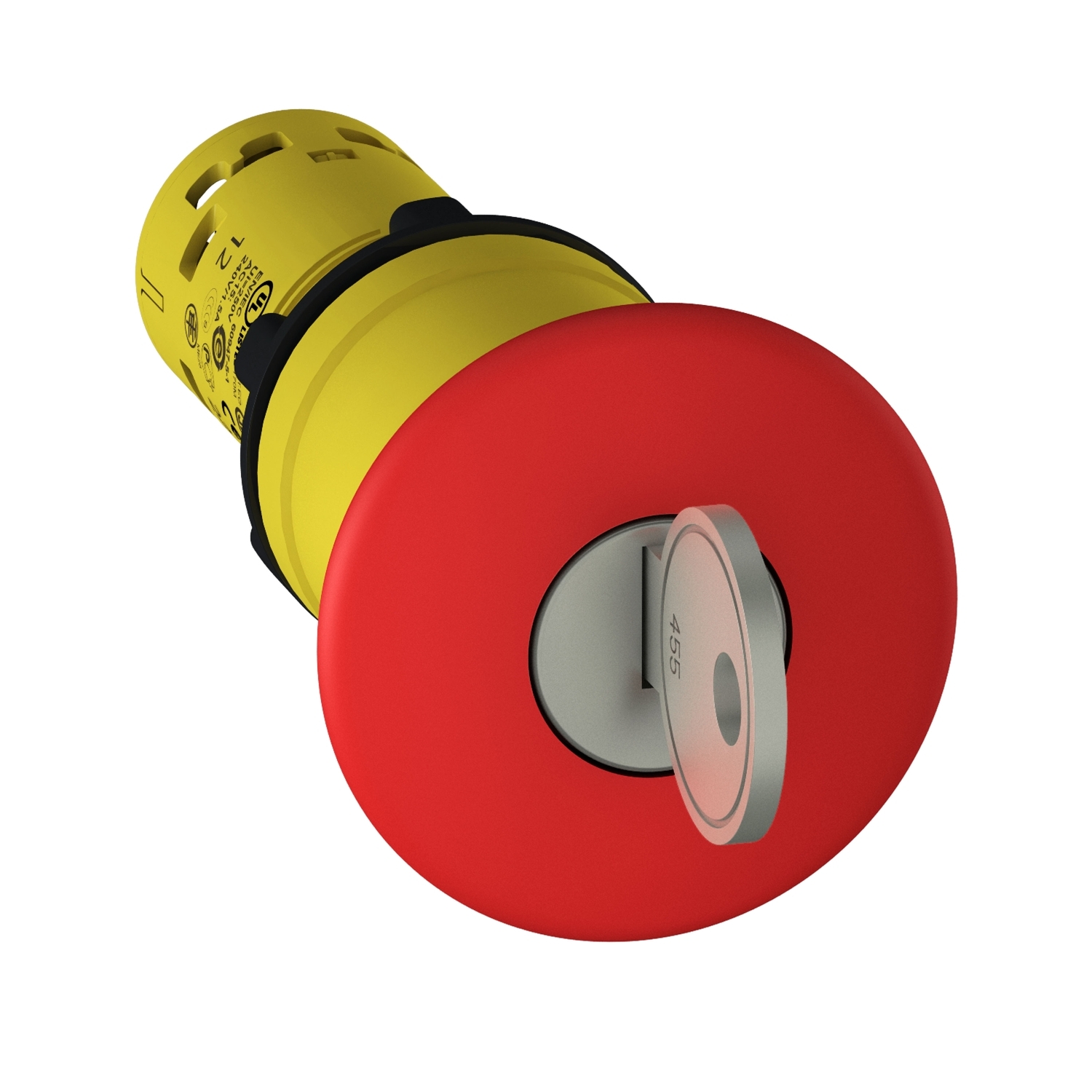

Schneider Electric XB7NS9444: This Harmony XB7, Emergency stop 40mm mushroom head monolithic red push button operates with a latched key release (key no.455) mechanism and screw clamp terminals. This emergency stop is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Manufacturer

Schneider Electric

Part number

XB7NS9444

Product family

Harmony XB7

Category

Push Buttons & Signalling

Technical details

Range: Harmony XB7; Published sizes: 40mm, 22mm; Ingress protection: IP65; Poles / contacts: 2 NC; Temperature: -25°C, 70°C; Colour: red; Material: plastic; Official designation: Emergency stop Ø 22 - red mushroom Ø 40mm - trigger latching key release - 2 NC

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
