XB7NA42

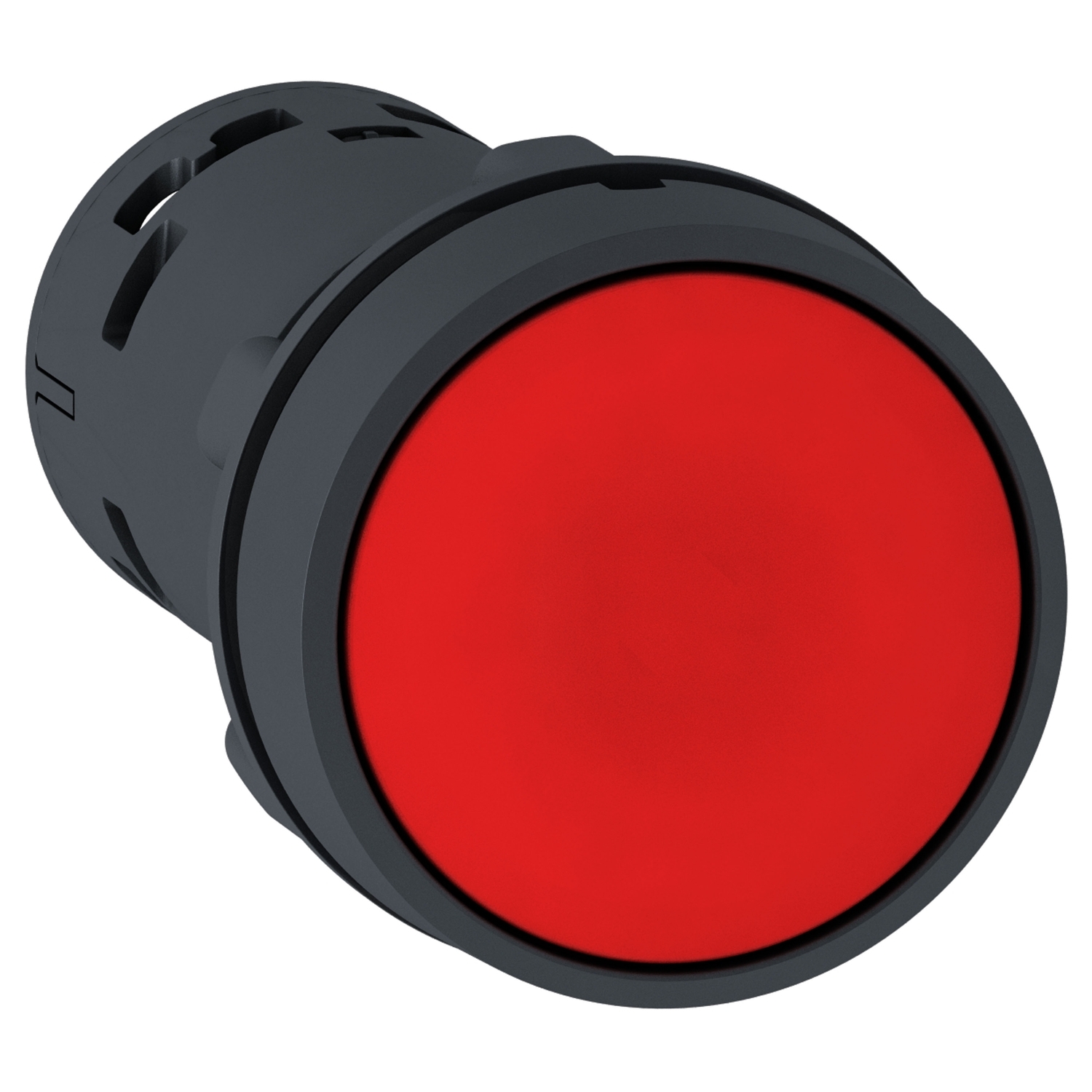

Schneider Electric XB7NA42: This Harmony XB7, flush monolithic red push button operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Manufacturer

Schneider Electric

Part number

XB7NA42

Product family

Harmony XB7

Category

Push Buttons & Signalling

Technical details

Range: Harmony XB7; Published sizes: 22mm; Ingress protection: IP65; Poles / contacts: 1 NC; Temperature: -25°C, 70°C; Colour: red; Material: plastic; Official designation: Monolithic push button, plastic,red, Ø22, spring return, unmarked, 1 NC

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
