XB5AW36B55

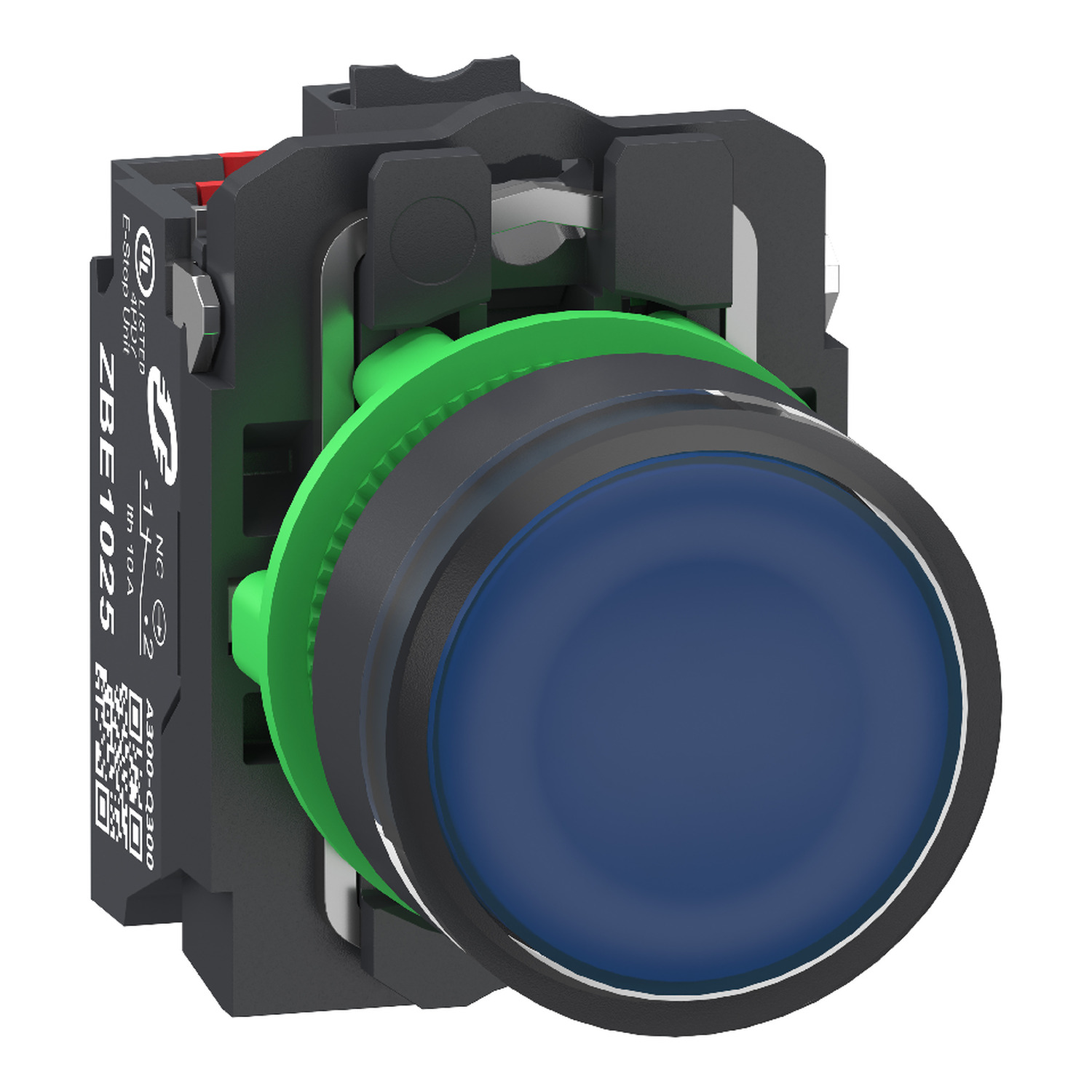

Schneider Electric XB5AW36B55: This Harmony XB5 illuminated blue flush push button operates with a spring return mechanism, is supplied with 24V AC DC, and uses a universal LED. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with push-in terminal connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. The XB5AW36B55 pushbutton is equipped with 1 normally open (NO) and 1 normally closed (NC) contact, featuring a slow break operation. This product is made from plastic, it weighs 52g. It is impact-resistant, dust-resistant, water resistant, and vibration-resistant thanks to its IP66, IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. This product meets many standards, including UL 508, IEC 60947-5-5, IEC 60947-5-1, IEC 60947-5-4 standards, and certifications such as BV, GL, CSA, LROS (Lloyds register of shipping), DNV and UL listed. Legend holders, marked or unmarked legends for this pushbutton can be purchased separately. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

Manufacturer

Schneider Electric

Part number

XB5AW36B55

Product family

Harmony XB5

Category

Push Buttons & Signalling

Technical details

Range: Harmony XB5; Voltage: 24V AC; Published sizes: 22mm; Ingress protection: IP66, IP67, IP69; Poles / contacts: 1NO, 1NC; Colour: blue; Material: plastic; Official designation: Illuminated push button, Harmony XB5, plastic, blue flush, 22mm, universal LED, plain lens, 1NO+1NC, 24V AC DC, push in

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
