XB5AS9445

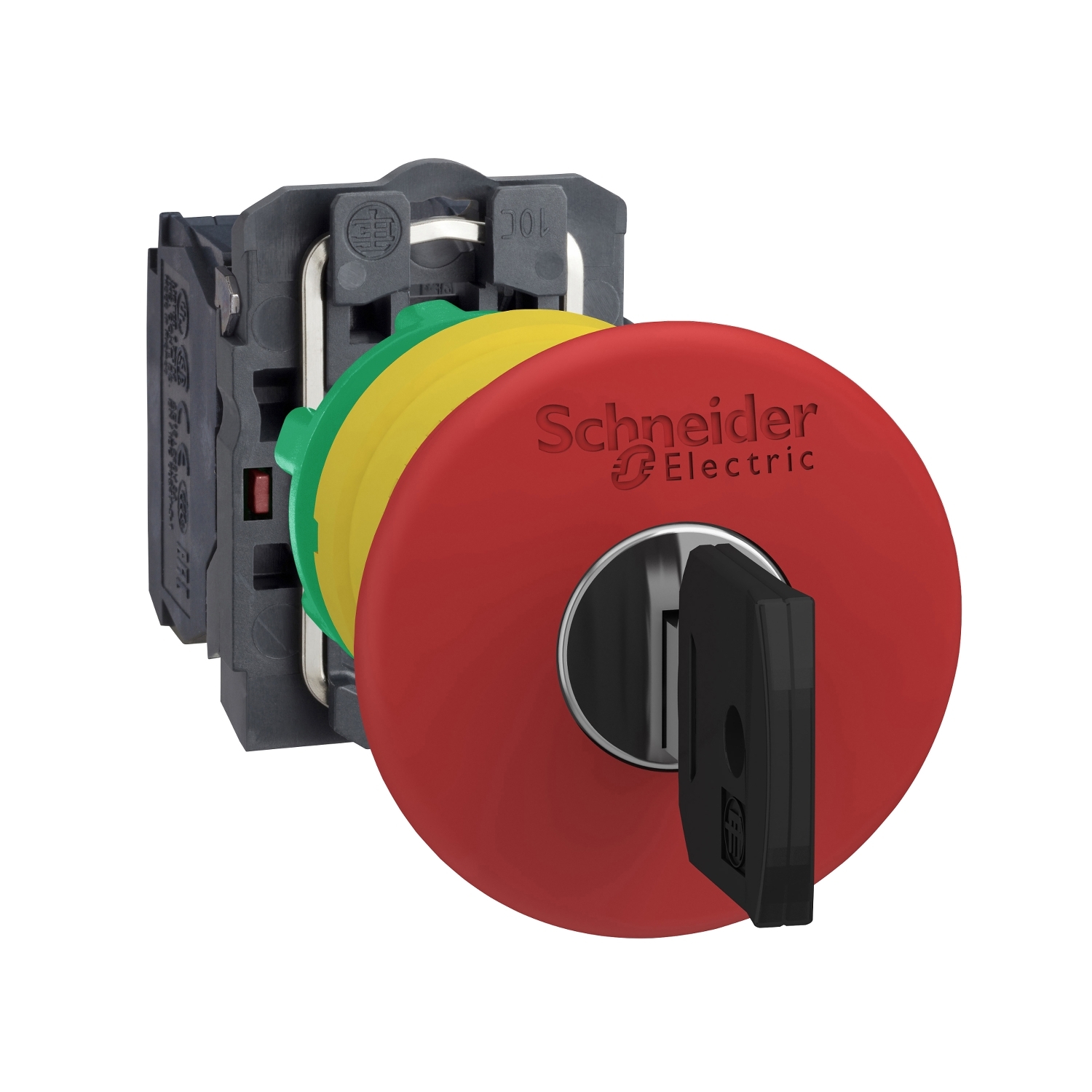

Schneider Electric XB5AS9445: This Harmony XB5, emergency stop 40mm mushroom head modular red push button operates with a latched key release (key no.455) mechanism and uses screw clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Manufacturer

Schneider Electric

Part number

XB5AS9445

Product family

Harmony XB5

Category

Push Buttons & Signalling

Technical details

Range: Harmony XB5; Published sizes: 40mm, 22mm; Ingress protection: IP66, IP67, IP69; Poles / contacts: 1 NO, 1 NC; Colour: red; Material: plastic; Official designation: Emergency stop switching off, plastic, red mushroom Ø40, Ø22 trigger latching key release, 1 NO + 1 NC
