VW3M3302

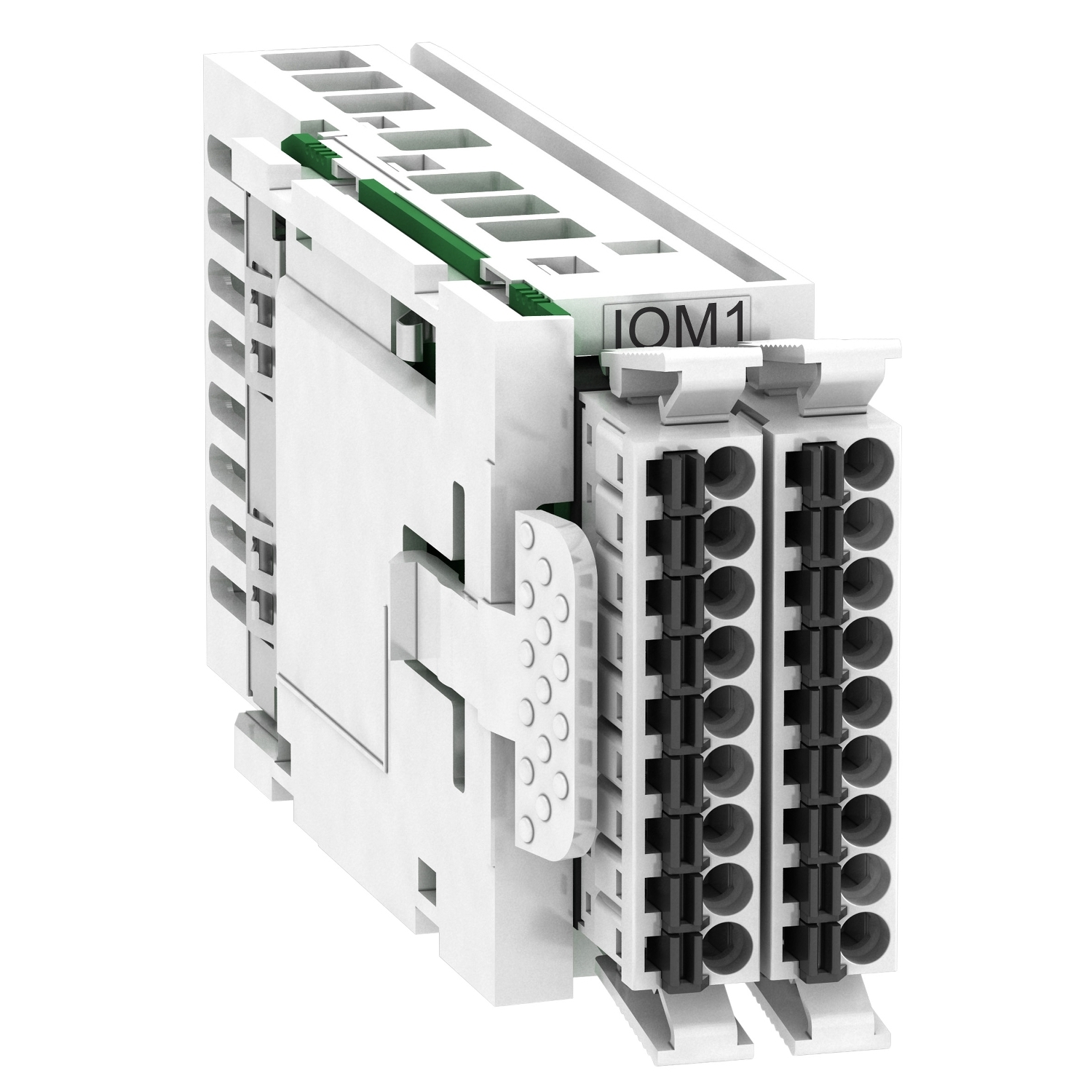

Schneider Electric VW3M3302: This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The additional I/O module provides 4 discrete inputs, 2 discrete outputs and 2 analogue inputs/outputs. It provides protection from reverse polarity on input. It is furnished with spring terminal for electrical connection. It weighs 0.45kg. This range is compatible with Lexium 32 servo drives. This product is compatible with Lexium 32M. Lexium 32 is a servo drive range with three or four servo drive models and two servo motor families plus an intelligent selection of options. Servo drives and servo motors from 0.15kW to 7kW for maximum performance.

Manufacturer

Schneider Electric

Part number

VW3M3302

Product family

Lexium 32

Category

PLCs & Controllers

Technical details

Range: Lexium 32; Power: 0.15kW, 7kW; Length / distance: 32M; Official designation: additional analog and digital inputs and outputs, Lexium, spring terminals
