VW3G921305

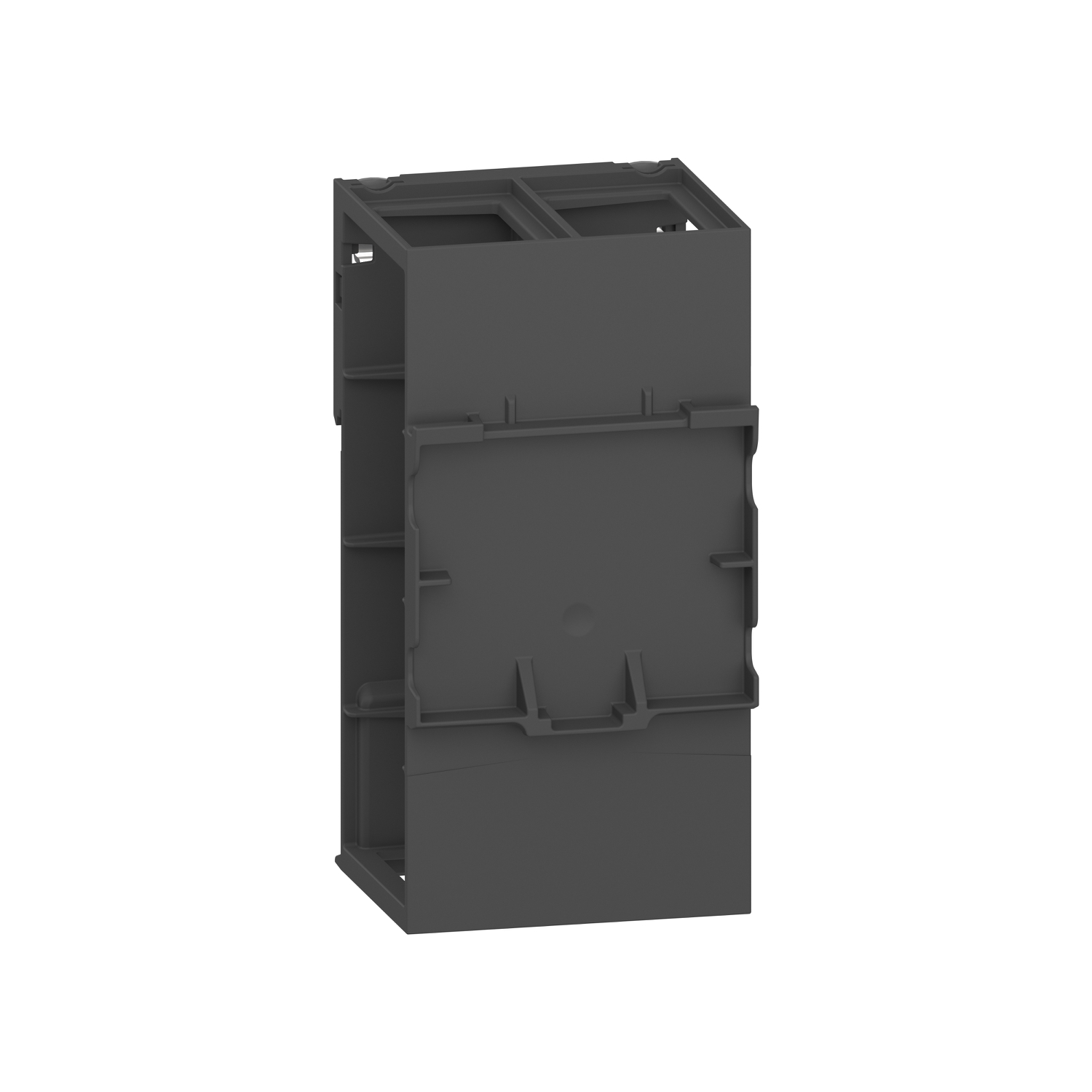

Schneider Electric VW3G921305: This Fixing kit is part of the Altivar Soft Starter ATS130 range. It is an option for ATS130 soft starters. The kit allows the assembly of a compact Soft Motor starter. It mounts and connects a TeSys Deca frame 4 motor circuit breaker on the top of an ATS130 from 80A to 105A. The fixing kit allows the ATS130 soft motor starter to be mounted on DIN rails or a backplate. It has the same width (80mm) as the TeSys Deca frame 4 motor circuit breakers. It weighs 0.14kg. Compatible with ATS130 soft starters from 80A to 105A and TeSys Deca frame 4 motor circuit breakers. It contains the fixing part for the TeSys Deca frame 4 circuit breaker and 3 copper bars. It is designed to be mounted on a DIN rail or a backplate. The Altivar Soft Starter ATS130 range is preventive maintenance-free and increases operational efficiency during design, manufacturing, and commissioning. This range is designed to take environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.

Manufacturer

Schneider Electric

Part number

VW3G921305

Product family

Altivar

Category

Drives & Soft Starters

Technical details

Range: Altivar; Current: 80A, 105A; Published sizes: 80mm; Material: copper; Official designation: Fixing kit, Altivar soft starter ATS130, direct mounting with GV4
