VW3A7731

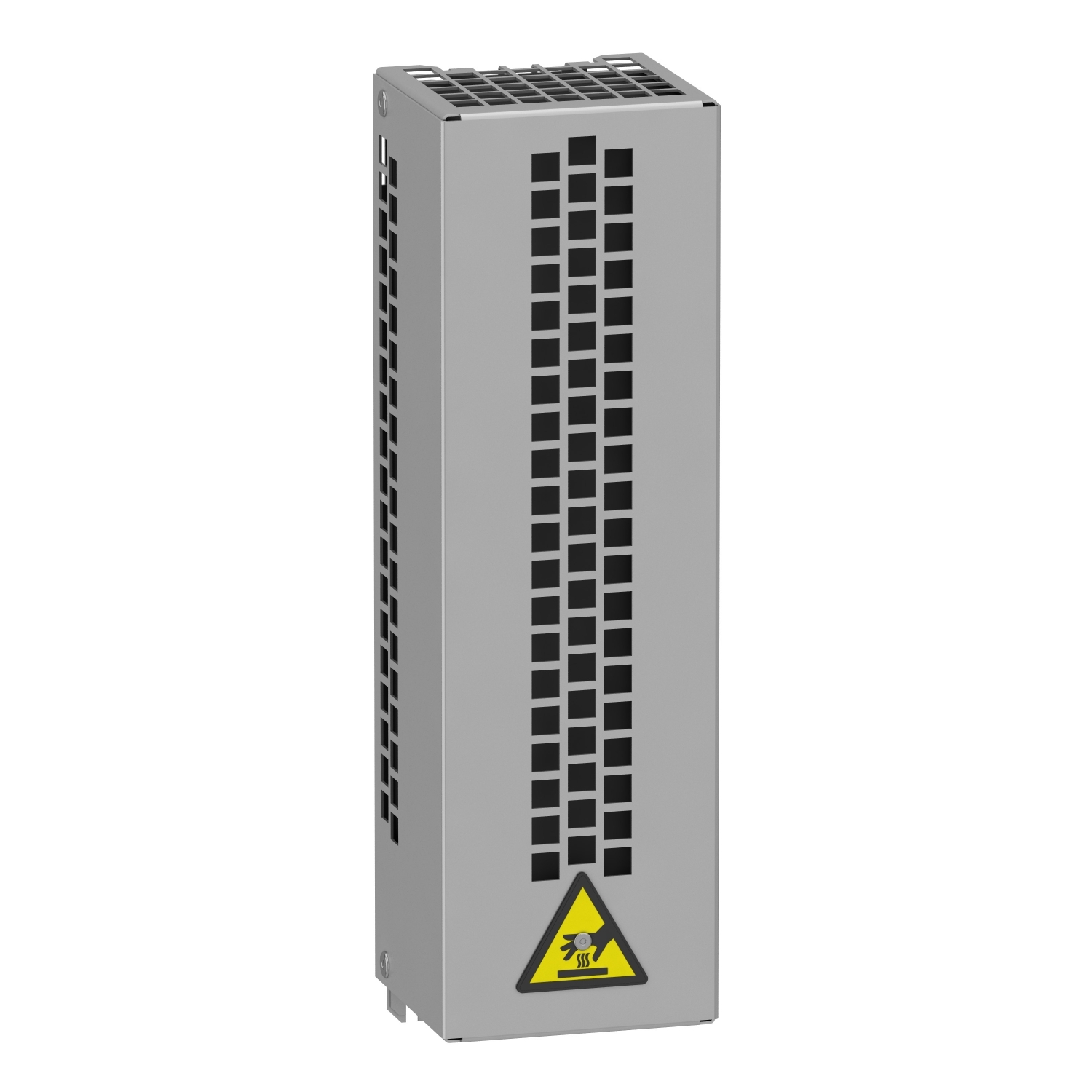

Schneider Electric VW3A7731: This braking resistor is an option for variable speed drives of Altivar ranges. It has an Ohmic value of 60Ohms at 20°C and its protection index is IP20. It is compatible with Altivar Process ATV900, Altivar Machine ATV320 and 340, a,d Easy Altivar 310 and 310L ranges. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. the power available is 0.16kW at 50°c. It weighs 2kg and its dimensions are, 105mm wide, 345mm high, 100mm deep. This resistor is designed to be mounted on the outside of the enclosure.

Manufacturer

Schneider Electric

Part number

VW3A7731

Product family

Altivar Process ATV900

Category

Drives & Soft Starters

Technical details

Range: Altivar Process ATV900; Power: 0.16 kW; Published sizes: 105mm, 345mm, 100mm; Ingress protection: IP20; Temperature: 20°C, 50°c; Official designation: braking resistor - 60 ohms - 0.16 kW - IP20
