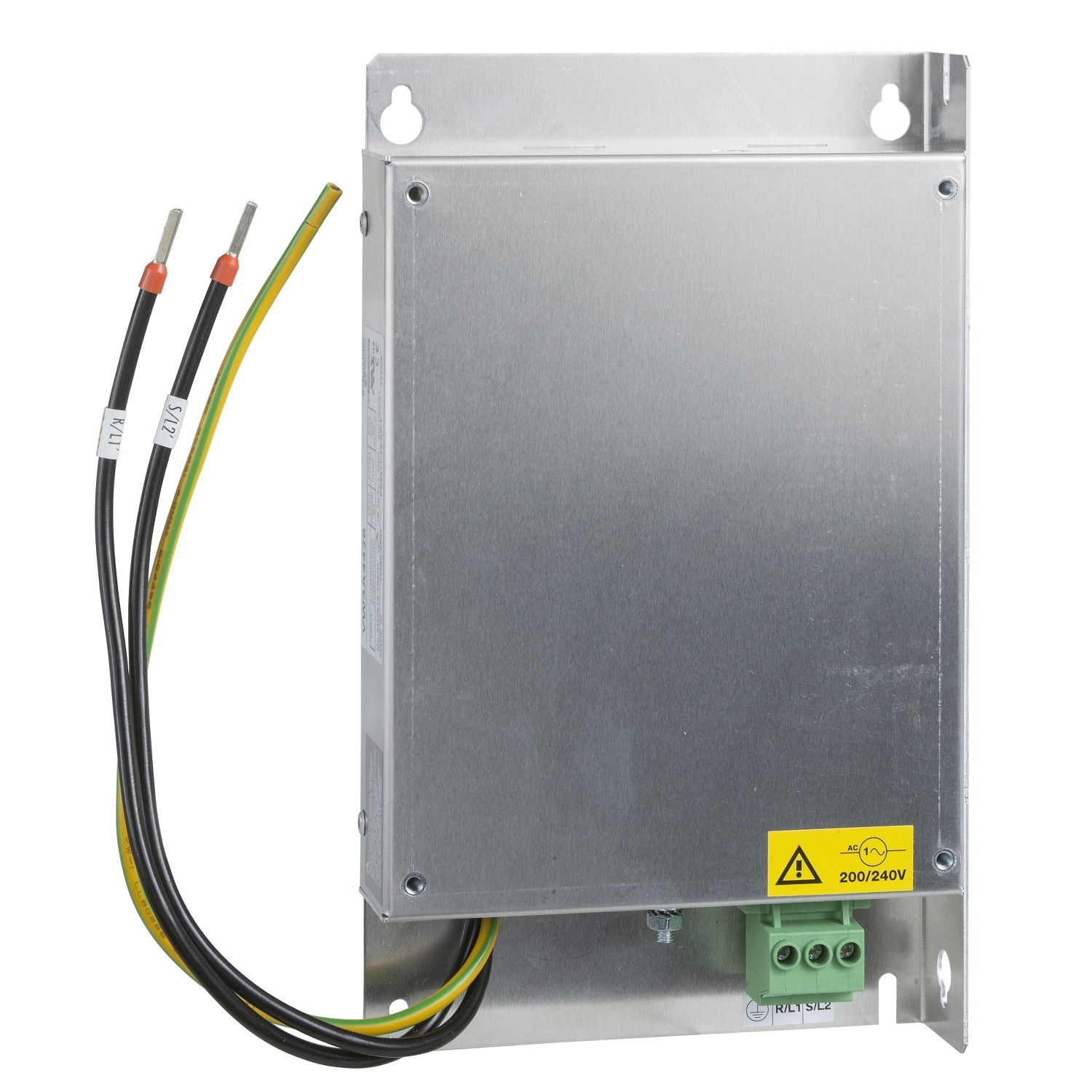

VW3A4421

Schneider Electric VW3A4421: This EMC input filter enables your servo drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. Its rated current is 17.6A, its thermal losses are 6.9W and its network rated voltage is 200V to 240V. The external input filters allow Easy Lexium 16 servo drives to comply with the European directive on EMC (electromagnetic compatibility). The maximum servo motor cable length conforming to IEC/EN 61800-3 category C3 (1) in environment 2 is 25meters. It acts as a support for the drives and is attached to them via tapped holes. It weighs 0.775kg. It is a low-pass filter used to improve noise attenuation (or rejection) in problems of electromagnetic compatibility. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Easy Lexium 16 servo drives. It is sold by one piece. It is mounted beside the variable speed drive. Easy Lexium 16 servo drive and BCH16 servo motor combinations are specially designed for easy integration & commissioning in your machine. Easy Lexium 16 servo drive and BCH16 servo motor combinations provide the right level of performance for the majority of simple motion control machines.

Manufacturer

Schneider Electric

Part number

VW3A4421

Product family

Altivar

Category

Drives & Soft Starters

Technical details

Range: Altivar; Voltage: 240V, 200V; Current: 17.6A; Power: 6.9W; Length / distance: 25meters; Official designation: EMC input filter, Altivar, Lexium, 17.6A, 1 phase, 200...240V
