VW3A31409

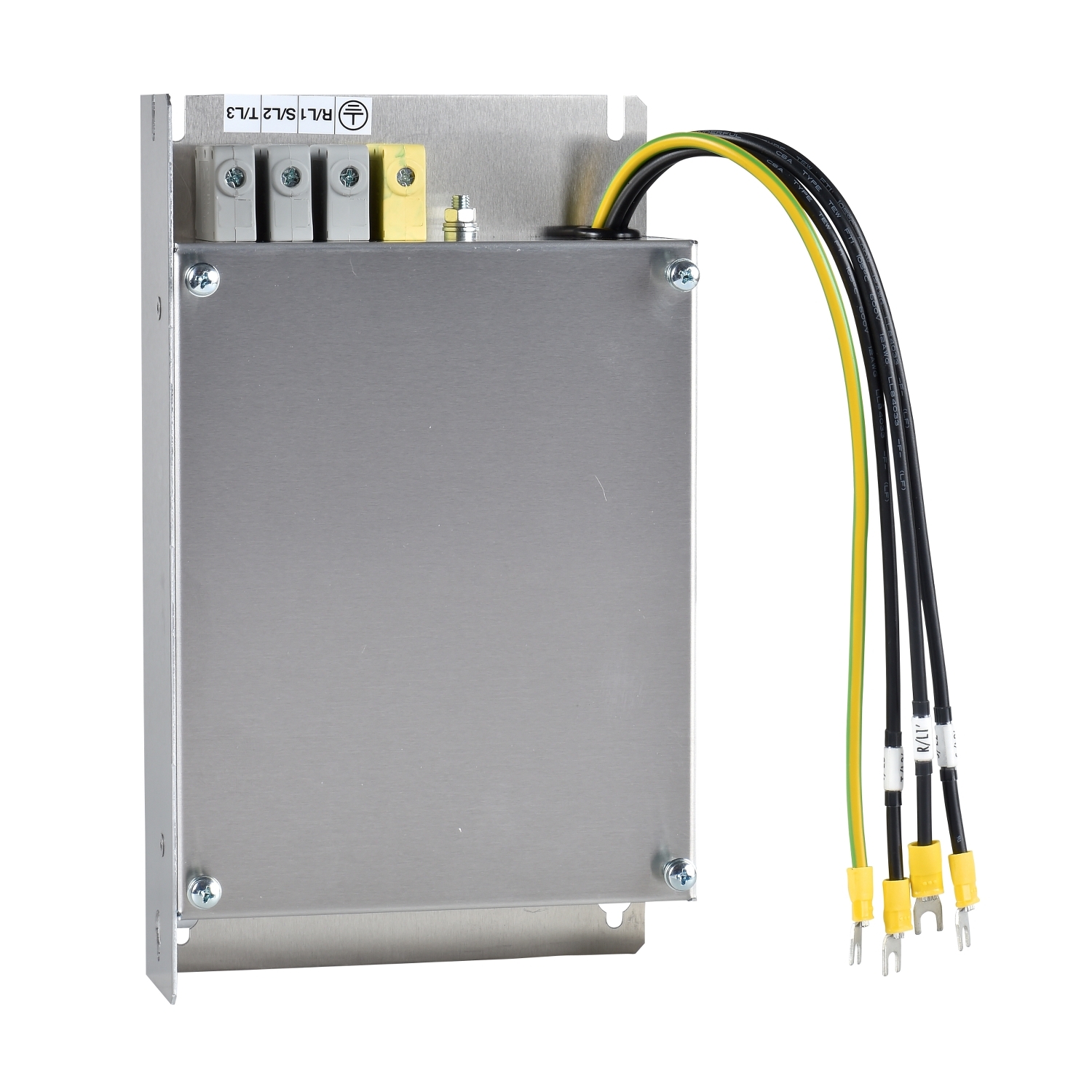

Schneider Electric VW3A31409: This EMC filter is an option for variable speed drives of the Altivar range and servo drives of the Lexium range. The additional EMC input filters enable the drives to meet more stringent requirements. Its rated current is equal to 49A. It is used to reduce conducted emissions on the line supply below the limits of standards IEC/EN 61800-3 category C1 or C2 and enlarge the maximum motor cable length for category C3. Its protection index is IP20. It weighs 4.75kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.

Manufacturer

Schneider Electric

Part number

VW3A31409

Product family

Altivar

Category

Drives & Soft Starters

Technical details

Range: Altivar; Current: 49 A; Ingress protection: IP20; Official designation: additionnal EMC input filter - 3-phase supply - 49 A
