VW3A31404

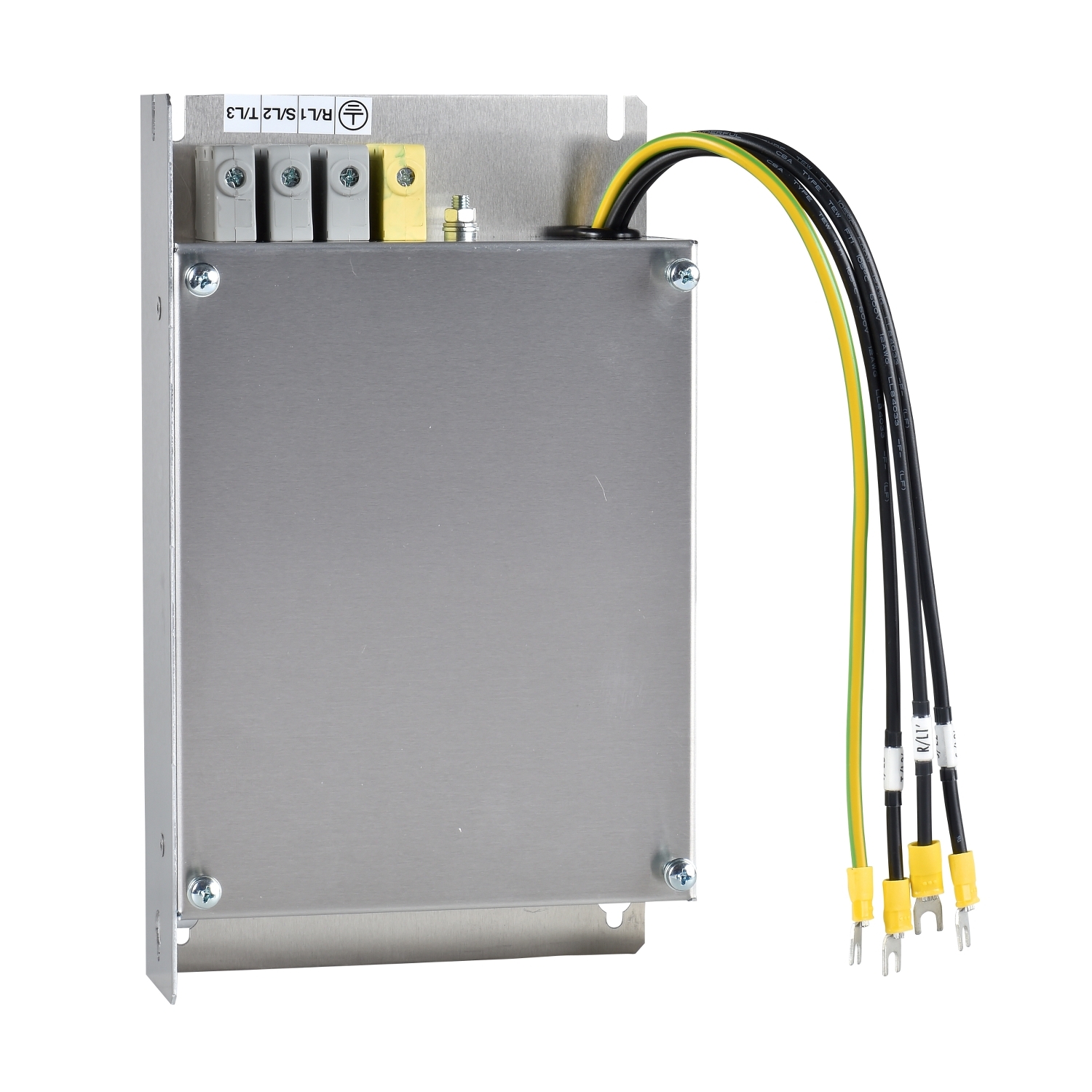

Schneider Electric VW3A31404: This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 15A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2 or C3. Its protection index is IP20. It weighs 1kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.

Manufacturer

Schneider Electric

Part number

VW3A31404

Product family

Altivar

Category

Drives & Soft Starters

Technical details

Range: Altivar; Current: 15 A; Ingress protection: IP20; Official designation: additionnal EMC input filter - 3-phase supply - 15 A
