VW33MF010T5N5

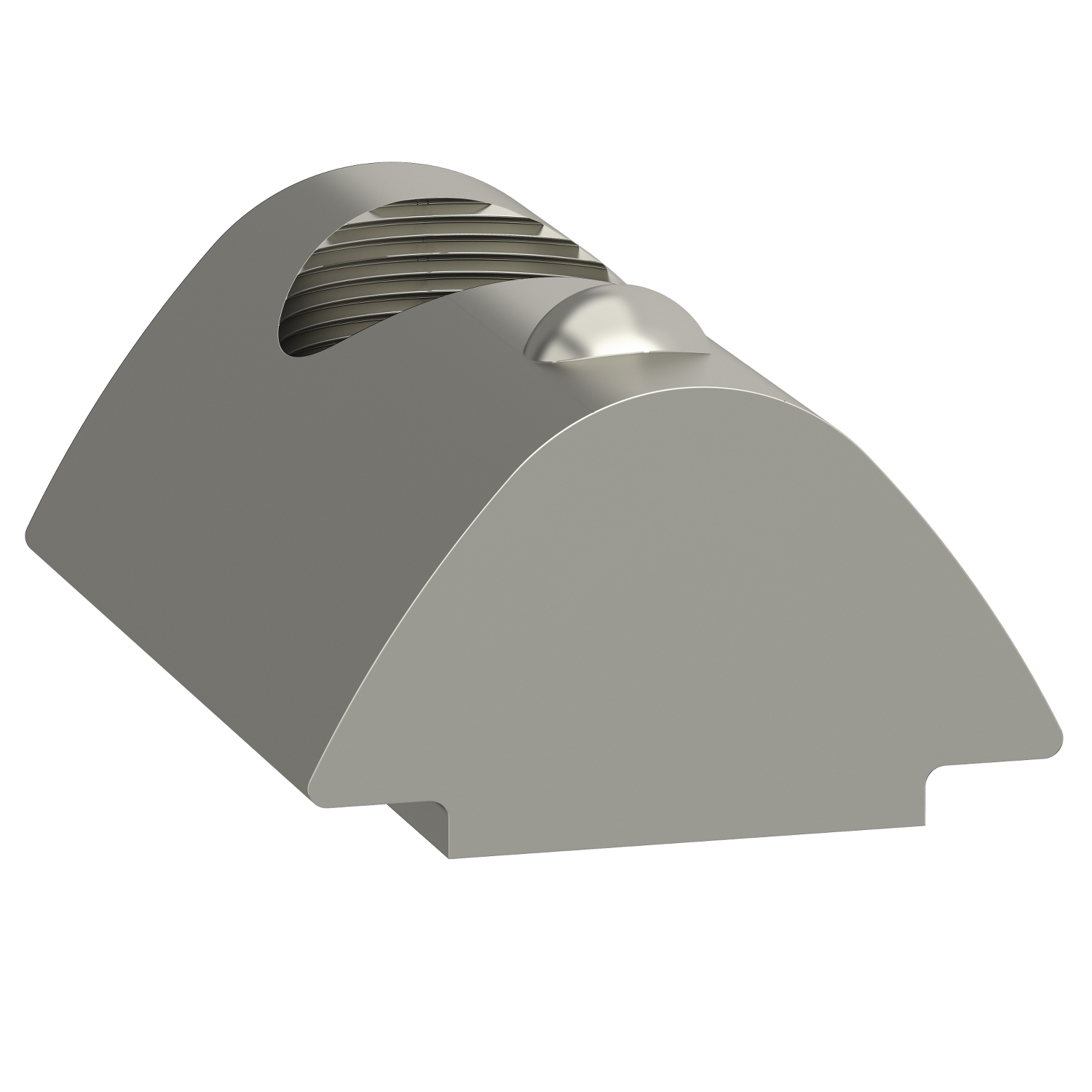

Schneider Electric VW33MF010T5N5: This accessory belongs to Lexium PAS Toothed belt axis. It is a slot nut to be inserted into the T slots of the axis body to fasten the axis or parts of the axis. It has 5x steel M5. It is designed to mount the axis on fixed support. The maximum tightening torque for M5 thread is 5Nm (44.25lb⋅in). The wrench size is 4mm. It is made of galvanized steel, and weighs 0.096kg. It is compatible with PAS41B/42B/42S, PAD42, TAS41, CAS41/42, CAR42, MAXH41/H42, MAXS41/S42, MAXP12/P22, MAXR12/R13/R22/R23 Lexium Cartesian robots. It is sold in lots of 10 units. Lexium PAS are Portal axes with movable carriage and fixed axis. Lexium PAS portal axes are designed for applications which require positioning of heavy loads over long distances with highly dynamic performance.

Manufacturer

Schneider Electric

Part number

VW33MF010T5N5

Product family

Lexium

Category

Motors & Motion Control

Technical details

Range: Lexium; Published sizes: 4mm; Connection / thread: M5; Material: galvanized steel; Official designation: slot nuts, slot size 5, M5 - 10 pieces
