TSXDMZ64DTK

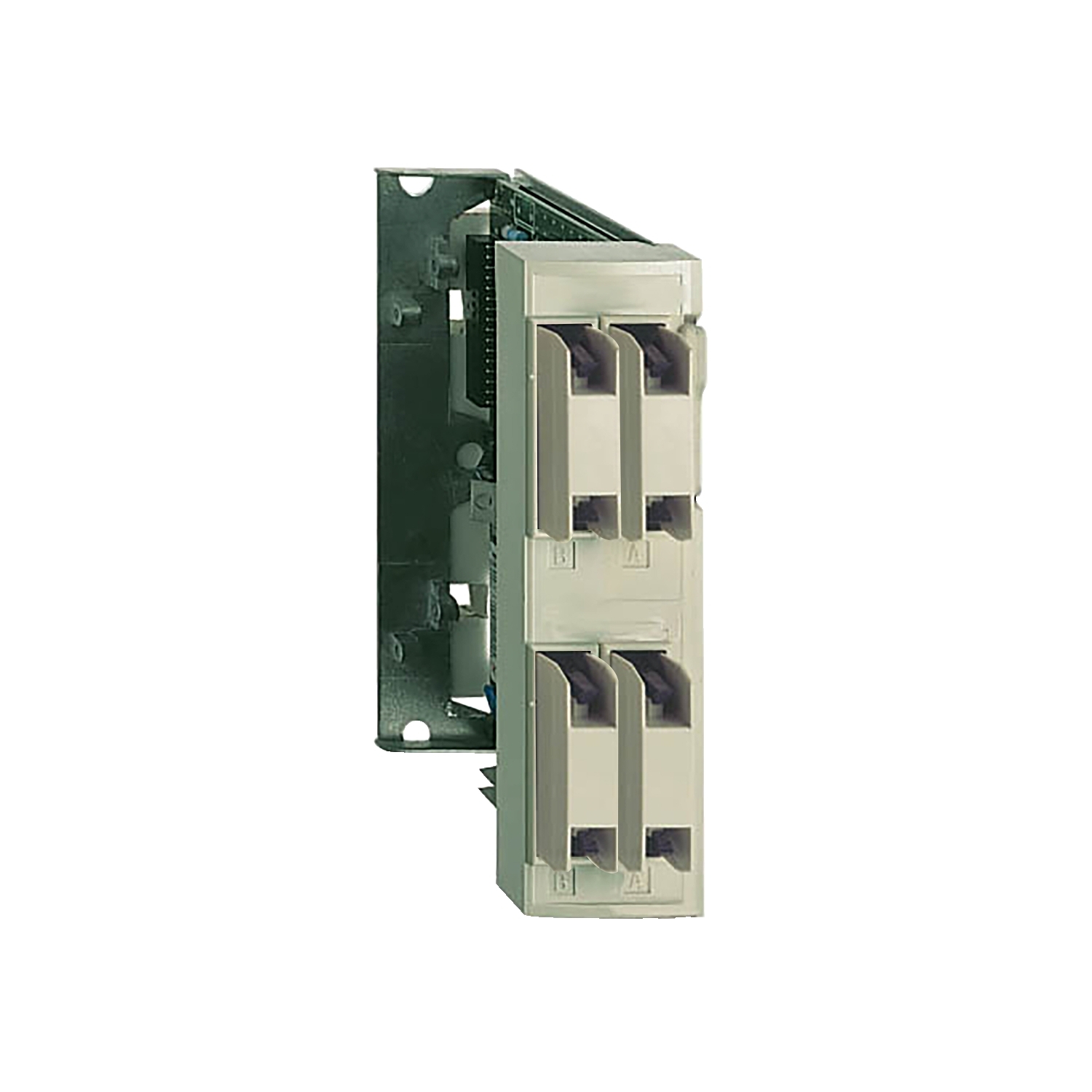

Schneider Electric TSXDMZ64DTK: This product is part of the Modicon TSX Micro range, an offer of Programmable Logic Controllers (PLC). This discrete solid state I/O base has 32 discrete inputs (by HE-10 connector) and 32 discrete outputs (by HE-10 connector) with positive output logic. It is a solid state I/O base with residual voltage of 0.3V and power dissipation of 3.5W by module output, 0.15W by channel output, 5W input, an I/O voltage of 24V DC, a current consumption of 197mA and an isolation voltage of 1500V. It weighs 0.41kg. It is suitable for infrastructures, machine and manufacturing control applications. It meets IEC 1131-2 Type 1 standards. The automation platform designed to enhance system's performance. With Micro's accuracy, flexibility and increased productivity, you have a real partner at the heart of the machine.

Manufacturer

Schneider Electric

Part number

TSXDMZ64DTK

Product family

Modicon

Category

PLCs & Controllers

Technical details

Range: Modicon; Voltage: 0.3V, 24V DC, 1500V; Current: 197mA; Power: 3.5W, 0.15W, 5W; Official designation: Discrete solid state I/O base DC, Modicon TSX Micro, 32 inputs, 2/3 wire proximity sensors, impedance 6.3Ohm
